Overview

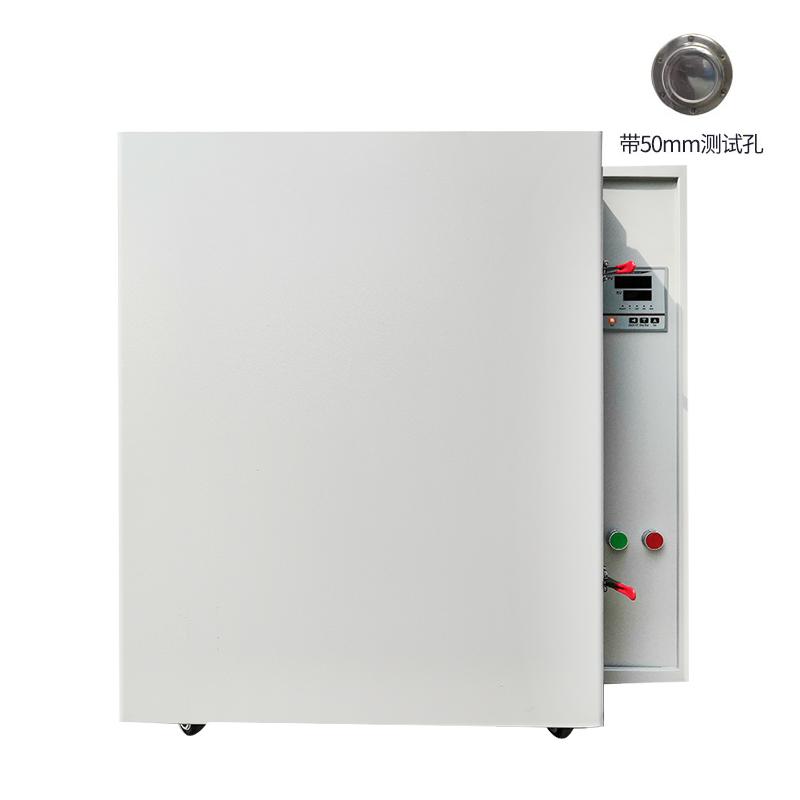

HUITAI HHG-9248A + high temperature blast drying oven is a drying equipment equipped with 50mm test hole, suitable for drying, baking, wax, sterilizing and other operations in industrial and mining enterprises, outdoor laboratories, R & D institutions and other places. The equipment adopts microcomputer intelligent temperature control instrument and hot air circulation system to ensure accurate and reliable temperature control and uniform temperature in the working room.
Features
1. The studio is made of good steel or stainless steel.
2. Microcomputer intelligent temperature control instrument, with setting and measuring temperature dual digital display, timing, power suppression and self-tuning functions, accurate and reliable temperature control.
3. The hot air circulation system is composed of low-noise fans and air ducts to effectively ensure uniform temperature in the working room.
4. Optional independent temperature limit alarm system, beyond the limit temperature will be automatically interrupted to ensure the safe operation of the experiment without accidents.
Optional RS485 interface can be connected to a recorder and a computer to record changes in temperature parameters.
Principle
The high-temperature blast drying oven precisely sets and adjusts the temperature through a microcomputer temperature controller, combined with the hot air circulation system, the hot air is driven by a low-noise fan to flow evenly inside the studio to achieve rapid heating and maintain temperature stability. It is suitable for various drying and heating treatments.
Applications
Industrial and mining enterprises, laboratories, R & D institutions
Steps
Connect the power supply (AC220V 50Hz/16A).
2. Set the required temperature (range RT + 20~ 400 ° C) and timing (1~ 9999min) through a microcomputer thermostat.
3. Start the equipment and the hot air circulation system starts to work to ensure uniform temperature.
4. Monitor the temperature display, optional alarm system or RS485 interface for data recording.
5. After use, turn off the power.
Notice
• Power supply voltage meets AC220V 50Hz/16A requirements.
• Check the studio material and shelf quantity before use (standard 2pcs).
• Optional independent temperature limit alarm system to enhance safety.
• Optional RS485 interface for temperature parameter recording.
• Temperature range and avoid exceeding 400 ° C.
• Maintain the hot air circulation system regularly to prevent malfunctions.
