Overview

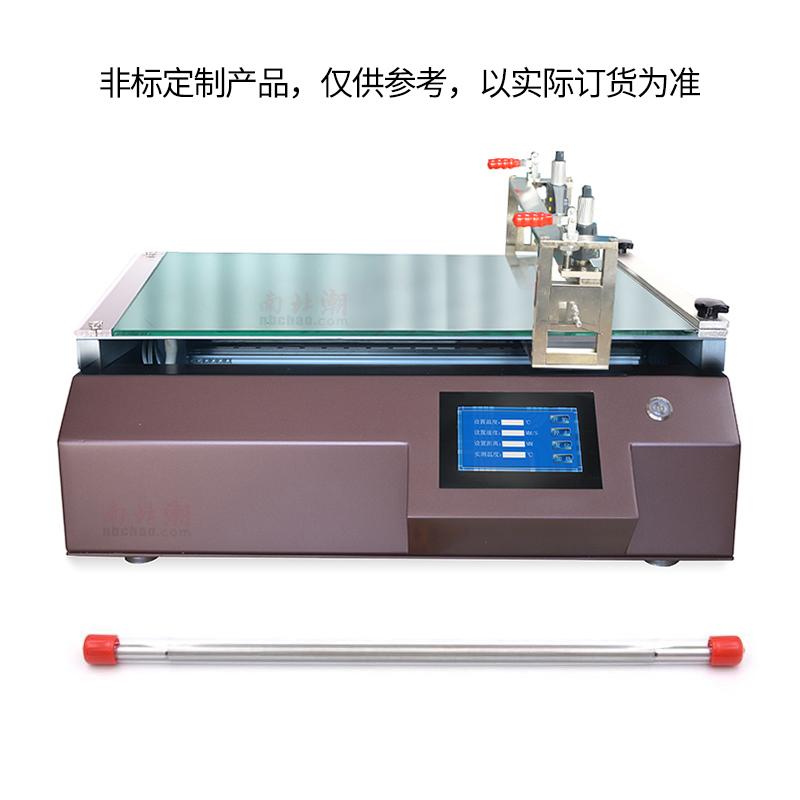

TBJ-B2-DJ2 Automatic Film Applicator is a small Lab Film Applicator for experiments, using imported film accessories to highlight film accuracy on an affordable basis. Spreader and gluing mass are ensured by accurately controlling film speed and constant pressure, while ensuring film uniformity and reproducibility. The device comes standard with 1 China rod and 1 imported rod, and the imported rod film accuracy is up to 1μm.
Features
1. Imported film accessories, high film accuracy
2. Affordable and cost-effective
3. Accurate control of film speed and constant pressure
4. Ensure film uniformity and reproducibility
5. Standard China and imported wire rod 1 each
6. Imported wire rod film accuracy up to 1μm
7. Support infinitely variable speed control
8. Optional with a variety of accessories and customized functions
Principle
Automatic Film Applicator achieves accurate wet-film Spreaders on different substrates by precisely controlling the speed of the Spreader and the constant pressure applied to the film applicator. Compared with manual Spreaders, which easily lead to coating inconsistencies, the device greatly improves the reproducibility of the film and solves the difficulty of test results caused by differences in Spreaders between different people.
Applications
R & D institutions of multinational enterprises, well-known universities at home and abroad, and scientific research institutions
Steps
1. Spreader substrate
2. Select the appropriate Spreader method (wire rod or scraper)
3. Spreader speed (5~ 180mm/s)
4. Adjust Spreader Film thickness parameters
5. Start the device for automatic filming
6. Remove the sample after completing the Spreader
Notice
• Spreader substrate Film thickness should be ≤ 15mm
• Non-standard customized products are subject to the actual customized size.
• Make sure the equipment is placed horizontally before use
• Select the appropriate Spreader method and accessories according to the application requirements
• Note that the power requirements of the equipment are 220V 50Hz
• Spreaders keep the environment clean
