Overview

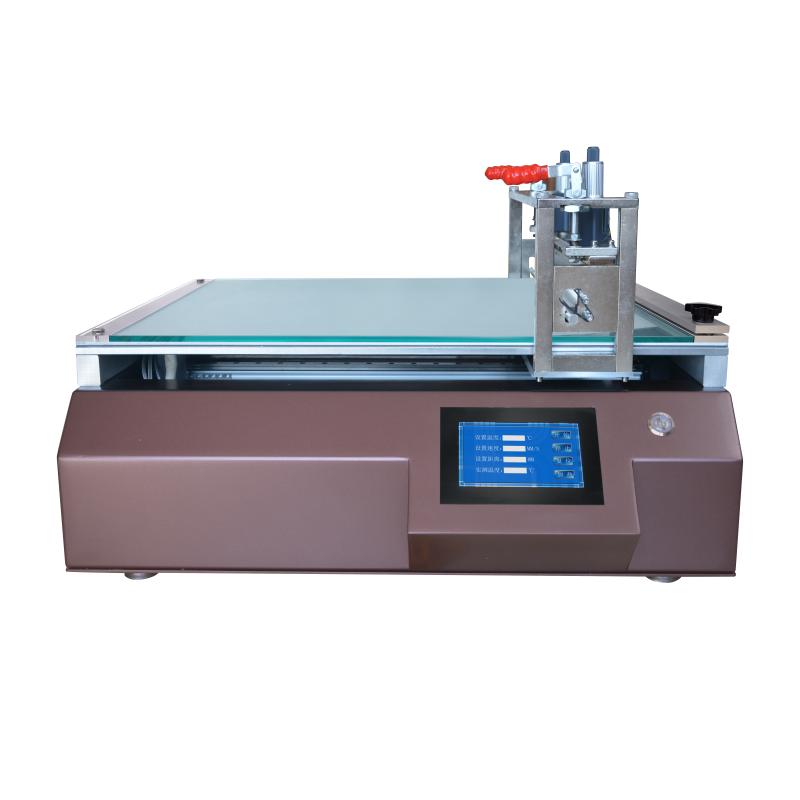

TBJ-B1-DJ3 Automatic Film Applicator is a small Spreader equipment in China laboratory. It adopts imported accessories and is cheap. It is favored by multinational R & D institutions, domestic and foreign universities and scientific research institutions. By controlling the speed and stable pressure of the Spreader, it ensures the uniformity and smoothness of the Spreader coating, solves the problem of artificial film inconsistency, and improves the film reproducibility.
Features
1. Using imported accessories, the price is good and cheap.
2. Control the speed and stable pressure to ensure the uniformity and stability of the Spreader.
3. Improve film reproducibility and reduce artificial differences.
4. Stepless speed regulation, wide range of Spreader speed (5~ 180mm/s, < 5mm/s can be customized).
5. Optional accessories are abundant, such as leakage tank, substrate fixing fixture, etc.
6. Customizable functions, including jet system devices, UV solid inclusion devices, and automatic inking systems.
Principle
Automatic Film Applicator achieves accurate Spreader wet-film on different substrates by controlling the Spreader speed and the pressure applied to the film applicator. The main factors affecting the film include Spreader speed and pressure. The device ensures the uniformity and conformity of the Spreader process through stepless speed regulation and stable pressure mechanism, thereby improving the film mass.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare the Spreader substrate and required accessories.
2. Set Spreader speed and pressure parameters.
3. Start the device for Automatic Spreader.
4. Monitor the Spreader process to ensure uniformity.
5. After finishing the Spreader, clean the equipment.
Notice
• Spreader rate can be customized below 5mm/s, need to confirm in advance.

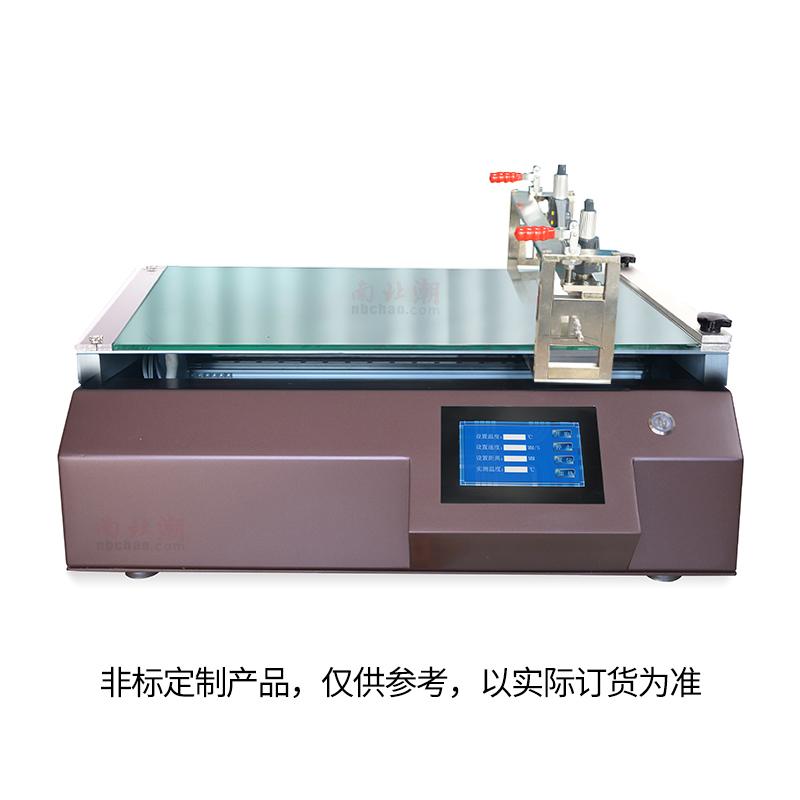

• Non-standard customized product specifications are subject to actual orders.
• Check the power supply to 220V 50Hz before use.
• Optional accessories such as leakage tanks, substrate fixtures, etc. should be selected according to application requirements.
• Spreader process pay attention to the substrate Film thickness uneven problem, optional silicone pad and weight assistance.
