Overview

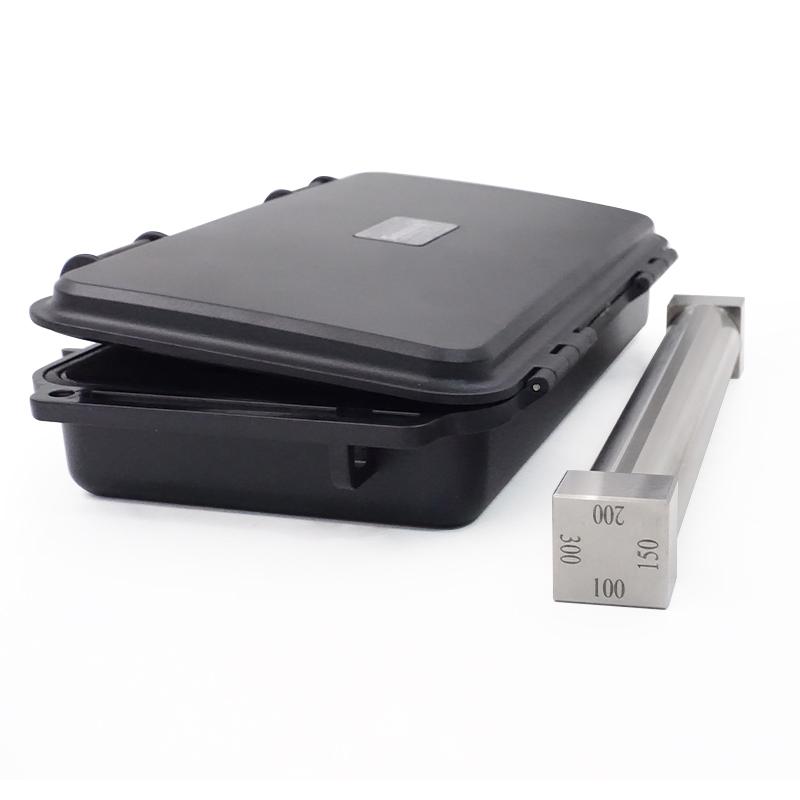

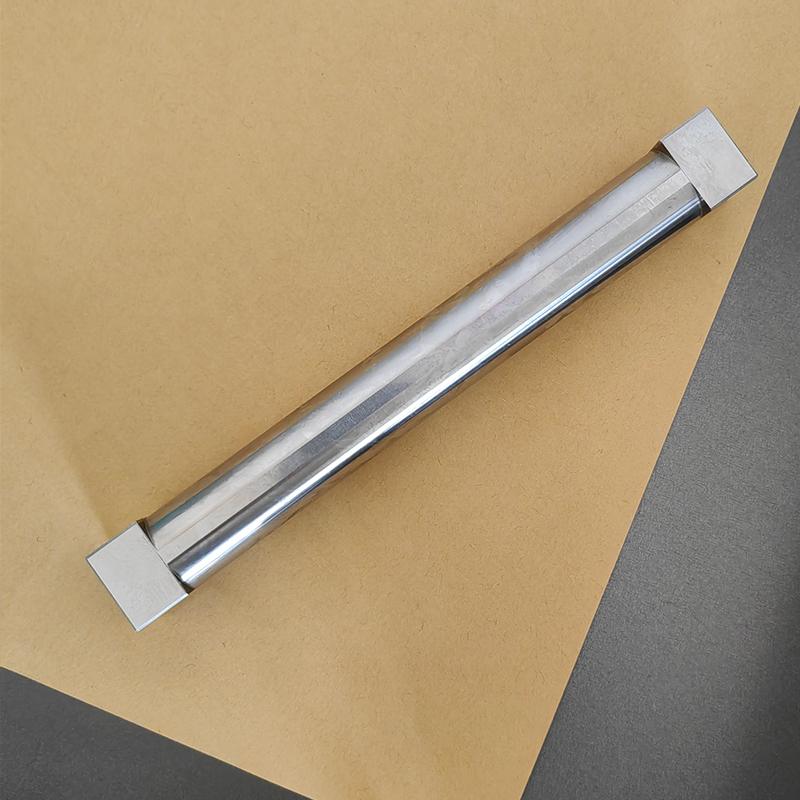

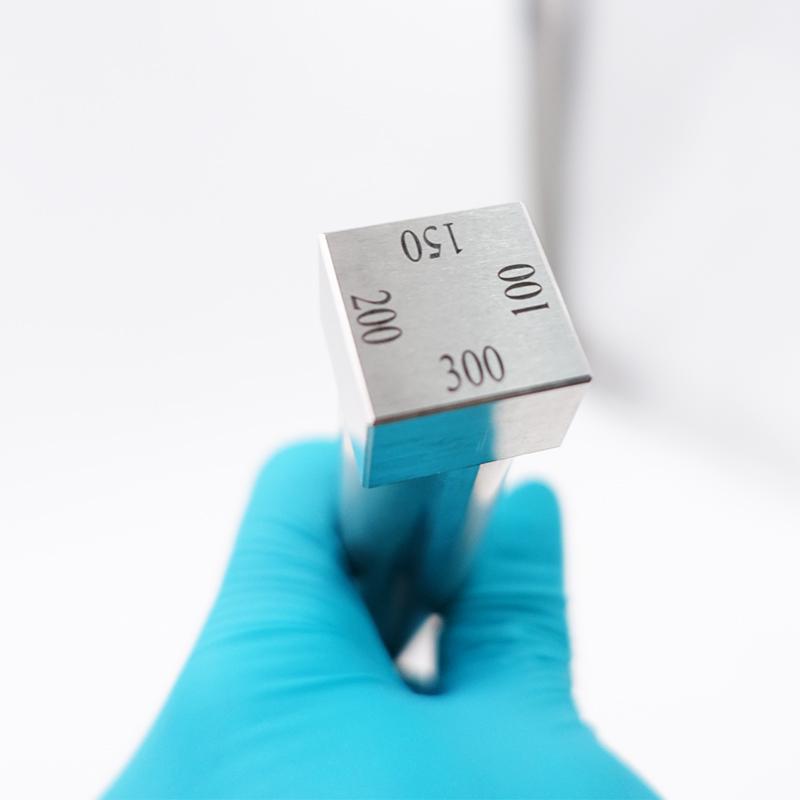

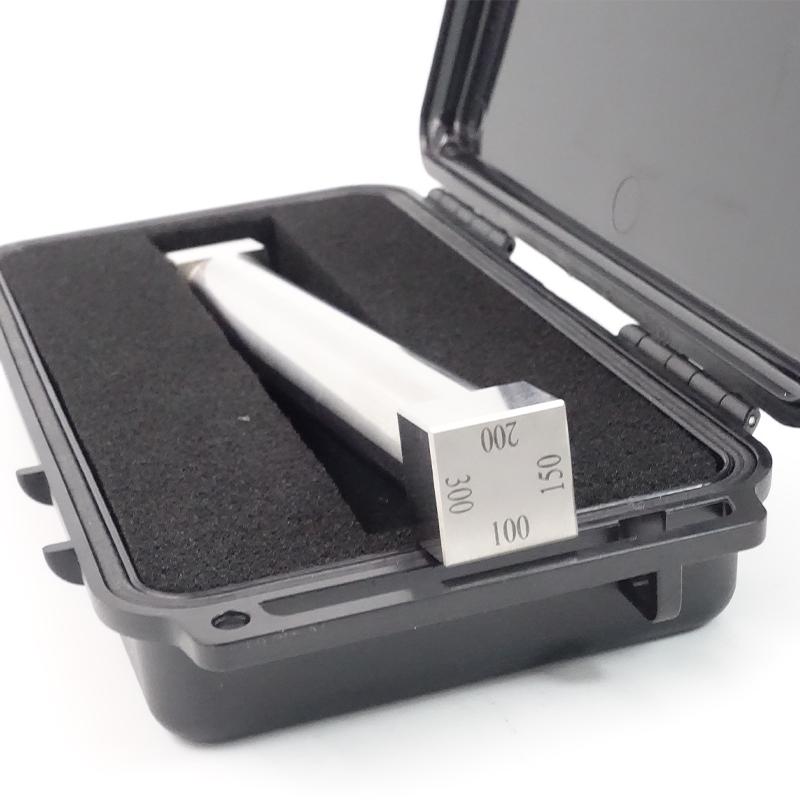

Huinuo SZQ-160 100/130/150/170 4-sided Film Applicator is a device for experimental manual film proofing such as Coatings, inks, paints, etc. It can also be placed on an automatic film machine for Moulding. The product is made of high-quality wear-resistant and corrosion-resistant alloy steel with four film film thicknesses: 100, 130, 150, 170 μm. The Spreader width is 160mm. The film thickness of wet-film or Dry-Film can be precisely controlled to ensure the conformity and Repeatability of coatings.
Features
1. Made of 9Cr18Mo High Hardness Stainless Steel, with Good Abrasion Resistance and corrosion resistance, Hardness value of 50~ 55HRC
2, accuracy up to +/- 2μm to ensure experimental accuracy
3. Smooth surface, diverse styles, wide range of applications, support for customized specifications

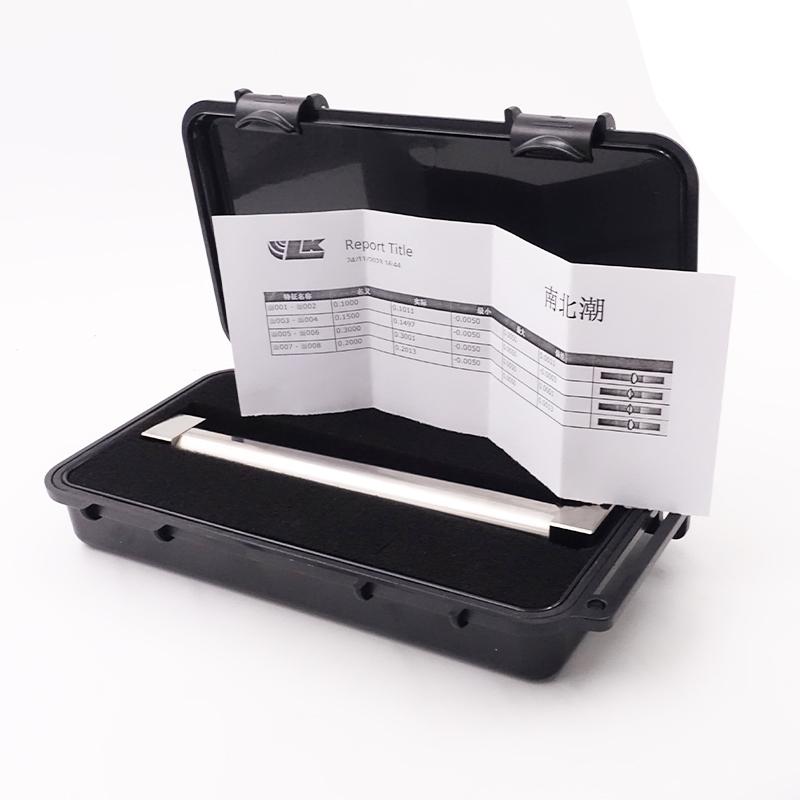

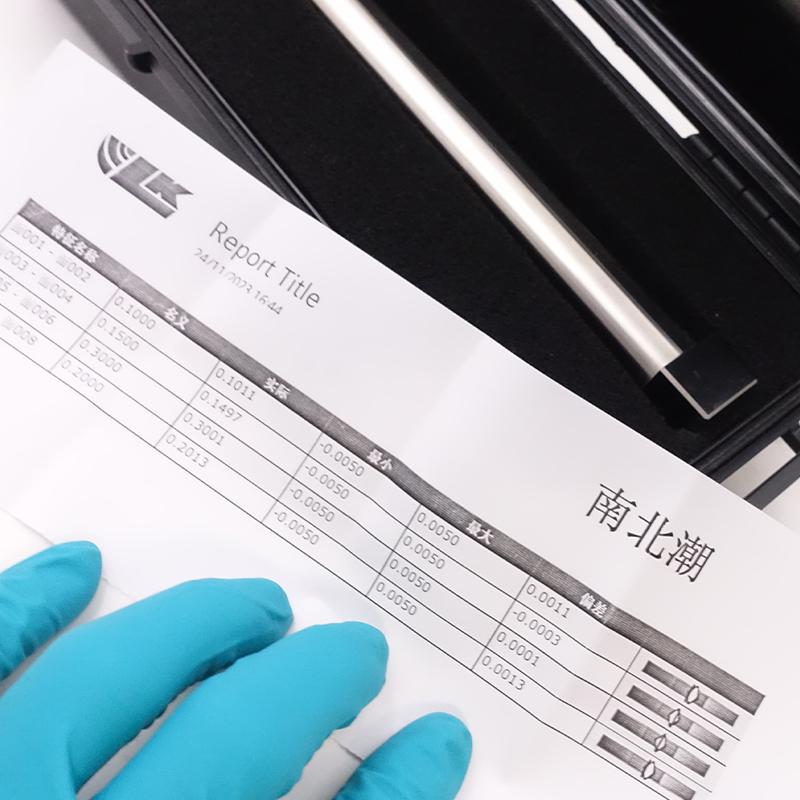

4. Adopt imported three-coordinate detection accuracy, with factory inspection report, can stand Measurement
Principle
The 4-sided Film Applicator controls the film thickness of wet-film or dry-film during manual or automatic film processes through its precisely designed film film thickness and Spreader width. It utilizes High Accuracy stainless steel material and imported coordinate detection technology to ensure the conformity and Repeatability of each film, suitable for quality control and R & D tests.
Applications
Coating, inks, paints and other experiments Manual film proofing, automatic film mechanism film
Steps
1. Place the Applicator on the Substrate
2. Manual or Automatic Film Applicator for film operation
Film thickness (100, 130, 150 or 170 μm) as needed
4. Remove Applicator after completing film
Notice
• Ensure that the Applicator surface is clean before use to avoid impurities affecting the film mass
• Pay attention to select the correct film Film thickness during operation to meet the experimental requirements
• Regularly check Applicator accuracy and calibrate if necessary
• Avoid collision or corrosive environments when storing to maintain its wear and corrosion resistance performance
