Overview

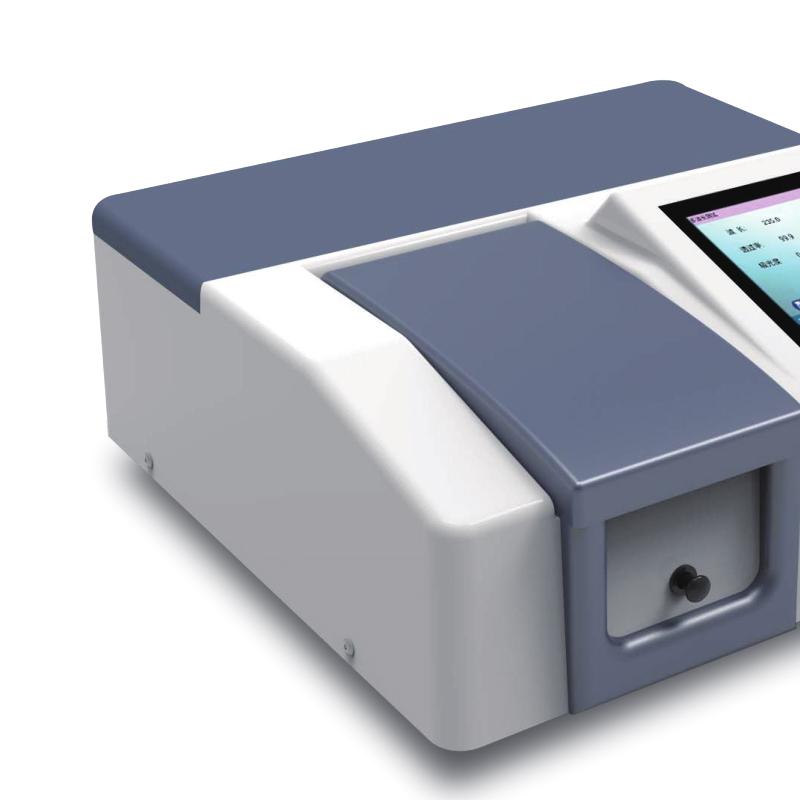

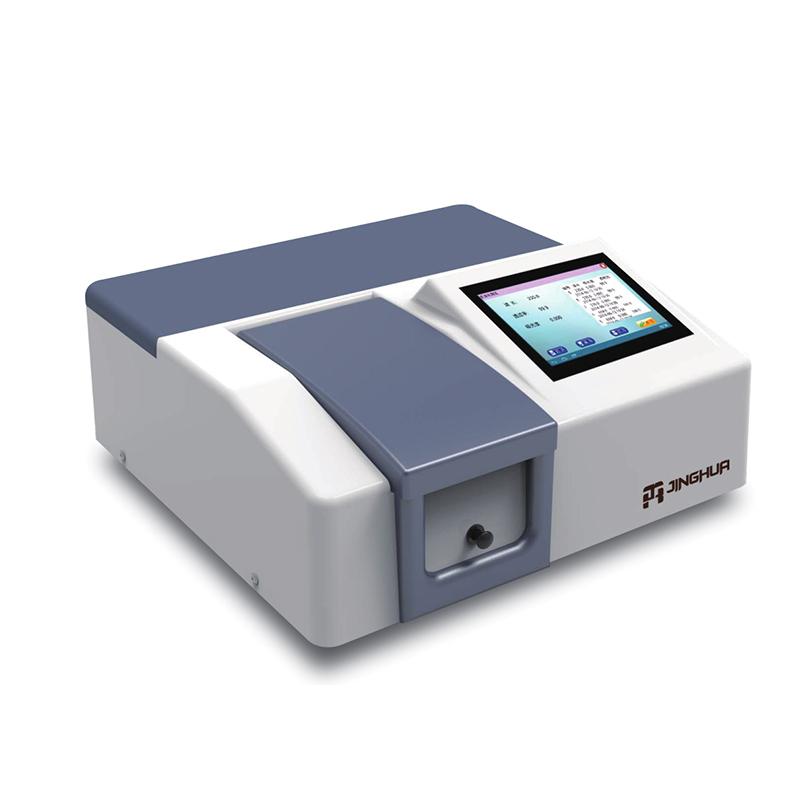

The JINGHUA JH752 UV-Vis Spectrophotometer is a laboratory instrument used for the measurement of the absorption, transmission or reflection of light by substances at different wavelengths. The degree of absorption of light emitted by the light source after passing through the sample is used to determine the sample concentration or Optical inspection properties. The instrument has a Light spectrum Bandwidth of 4nm, stray light accuracy ≤ 0.1% T, uses a C-T monochromator structure, and is equipped with a touch display screen. It has automatic correction of wavelength errors and light source switching functions, as well as various practical functions such as photometry, quantification and standard Linear dispersion. It is a High Accuracy and High Reliability instrument that meets the various needs of scientific research and laboratory work.
Features
1200L/mm high-performance UV dedicated grating, providing high resolution and accurate wavelength selection.
2. Use a long-life deuterium lamp/tungsten lamp as a light source, with a long service life and stable and long-lasting light source output.
3. Equipped with imported photoelectric converter to improve measurement accuracy and Sensitivity.
4. Adopt C-T monochromator structure to reduce stray light interference and improve instrument resolution and luminosity linearity.
5. With a large sample chamber, it can accommodate larger sample holders, expanding the testing range and applicability.
6. With automatic correction wavelength error and light source switching function to ensure Measurement accuracy and continuity.

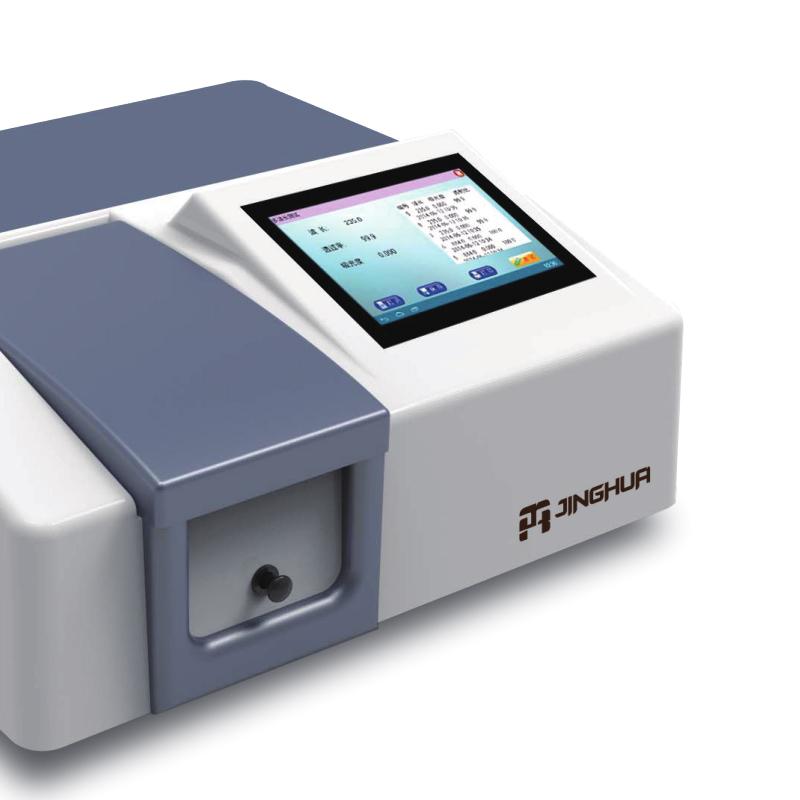

7. Equipped with a large-screen color Chinese/English touch display, the measurement data and maps are clearly and intuitively displayed.
8. Support photometric measurement, quantitative analysis, standard Linear dispersion drawing and other functions, and can expand regression equation, kinetics, DNA/protein analysis.
Principle
The spectrophotometer works based on the Beer-Lambert law, which states that the absorption of light is proportional to the concentration of the sample. The instrument emits light from a light source (such as a deuterium/tungsten lamp), selects a specific wavelength through a monochromator, and the intensity of the light passing through the sample in the sample chamber is affected by absorption or transmission. The photoelectric Sensor measures the light intensity after passing through the sample and converts it into an electrical signal. The detection system and data processing functions are used for measurement of light intensity, calibrating wavelengths, recording and analyzing data for measurement of sample concentration, reaction kinetics, solution equilibrating, and Light spectrum analysis.
Applications
Chemistry, biology, environment science
Steps
1. Select the appropriate wavelength.
2. calibrated instruments.
3. Absorbance or transmittance measurement.
Notice
• Ensure that the instrument is used in a stable environment to avoid measurement errors.
Periodically calibrate wavelengths and light sources to maintain accuracy.
• Use appropriate sample holders and avoid sample contamination.
• Pay attention to the life of the light source and replace it in time to ensure performance.
• Follow the operation manual for data processing and function expansion.
