Overview

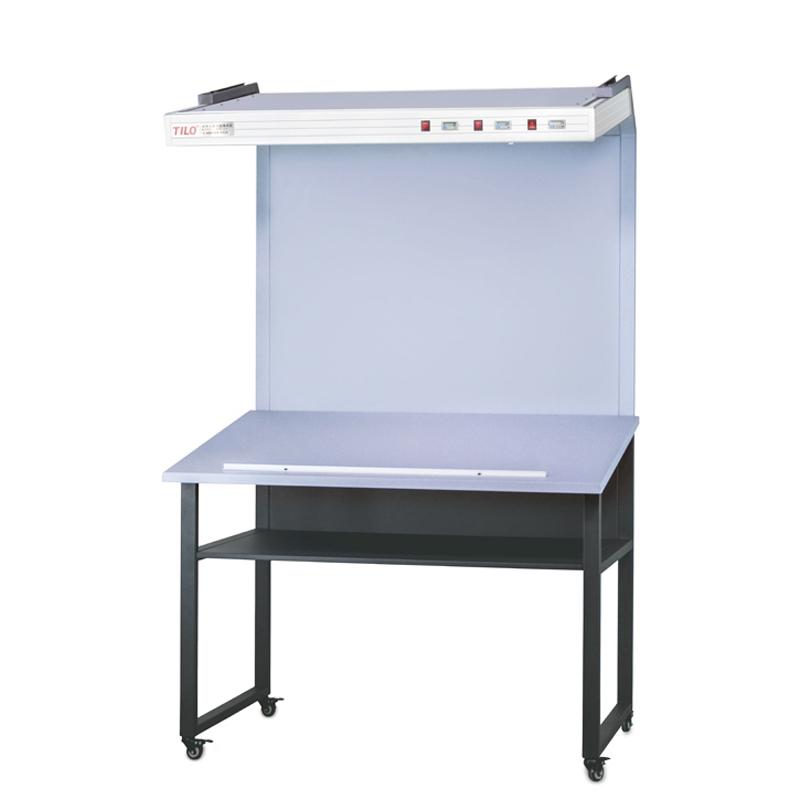

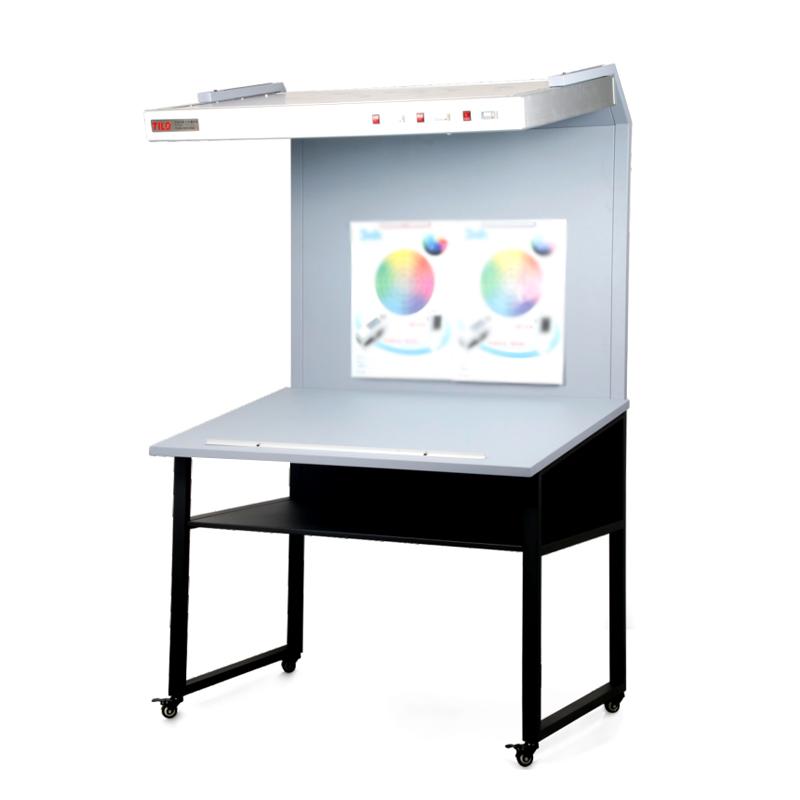

CC120-A-3 Color Assessment Cabinet is a professional tool for color comparison and evaluation, using three different light sources (D65, D50, TL84), in line with ISO3664 international standards, to ensure the conformity and authenticity of color under different light sources. All-metal construction, durable, providing a stable and reliable working environment, suitable for the printing industry demanding environment.
Features
1. In line with ISO3664 international standards
2. Color temperature type: D50 (5000K) or D65 (6500K)
3. Lamp series: Graphica imported printing press
4. Color rendering index: CRI = 98 high color strength index
5. Number of lamps: 36W x 4, Timer with light source
6. All metal material, real material
7. The overall sheet metal structure of the work cabinet is thick and stable
8. Operating table bevel design, in line with visual observation habits
9. The hanging light source adopts aluminum alloy profile, streamlined design, imported reflective plate and uniform light cover plate, uniform light
10. Large folio size, easy to operate
Principle
Standard light sources (D65, D50, TL84) are provided to ensure the conformity and authenticity of colors under different lighting conditions, high color strength index ensures accurate restoration of color samples and visible subtle differences, and light source Timer assists in managing use time.
Applications
Printing, Dyeing Spinning & weaving, Plastic, Hardware and other Color Management Fields
Steps
1. Connect power supply AC220V, 50HZ
2. Select the desired light source (D65, D50, or TL84)
3. Place the reflection manuscript on the countertop
4. Turn on the light source for Color Comparison and Evaluation
5. Use Light Timer to manage usage time
Notice
• Power supply voltage AC220V, 50HZ
• Check whether the light source is working normally before use
Avoid using in non-standard environments to affect Color accuracy
• Regular maintenance of lamps and reflectors to ensure uniformity of light
• Pay attention to the use of light source Timer, timely replacement of lamp tube
