Overview

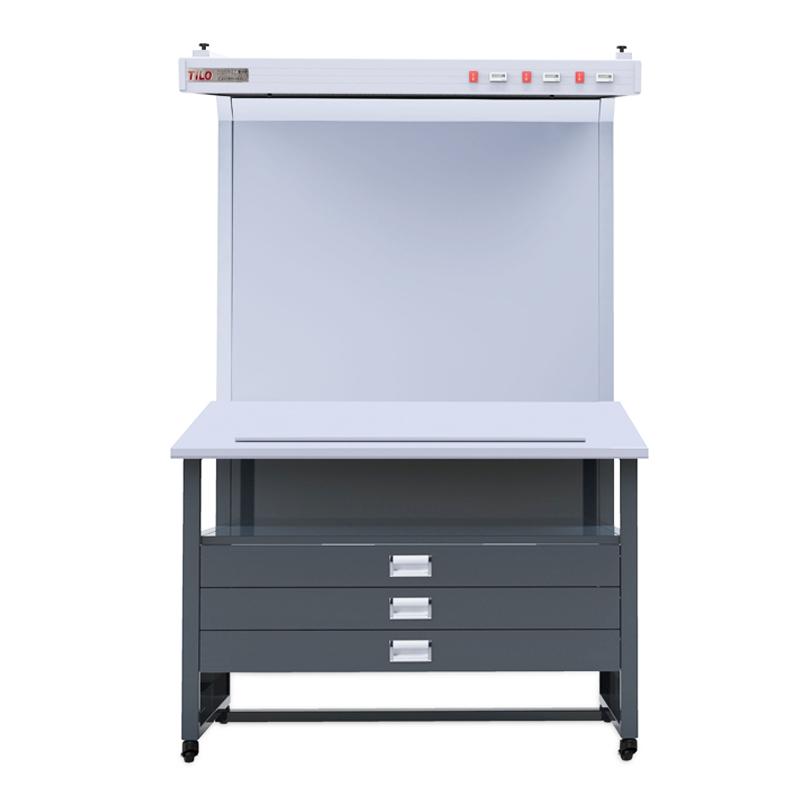

The CC120-B-3 Color Assessment Cabinet is a three-light source, high color strength index, and all-metal color evaluation instrument with three layers of drawers at the bottom. It features a multi-light source design, including a D65 light source (daylight source), a TL84 light source (commercial lighting source), and a D50 light source, capable of simulating color performance under different lighting conditions. High color strength index can more accurately display the true Color and color differences of objects, and is widely used in printing, Spinning & weaving, Plastics, Coating, and Miscellaneous industries for color management and quality control.
Features
1. The light source conforms to ISO3664 international standards
2. Color temperature types include D50 (5000K) and D65 (6500K).
3. Adopt Graphica imported printing press special lamp series
4. Color rendering index CRI = 98, with high color strength index
5. The lamp is configured as 36W x4, with light source Timer
6. All-metal material, stable and durable structure
7. The overall sheet metal structure work cabinet is thick and stable
8. Bevel operation table design, in line with visual observation habits
9. The hanging light source adopts aluminum alloy profile, streamlined design, beautiful and elegant, equipped with imported reflective plate and uniform light cover plate, uniform light
10. Large folio size, easy to operate
Principle
Color Assessment Cabinet simulates the color performance under different lighting conditions through multi-light source design, and uses high-color strength index lamps to accurately display the true Color and color difference of objects. The all-metal structure provides a stable test environment to ensure the accuracy of color evaluation results.
Applications
Printing, Spinning & weaving, Plastic, Coating, Hardware and other Color Management Fields
Steps
1. Connect the AC220V, 50HZ power supply
2. Select the desired light source (D65, D50, or TL84)
3. Place the specimen on the operating table for observation
4. Use the light source Timer to record the use time
5. Turn off the power after the observation is completed
Notice
• Power supply voltage AC220V, 50HZ
• Check whether the lamp is working normally before use
• Regularly clean the reflector and uniform cover to keep the light uniform
• Avoid use in humid or vibrating environments
• Replace the lamp tube according to the instructions
