Overview

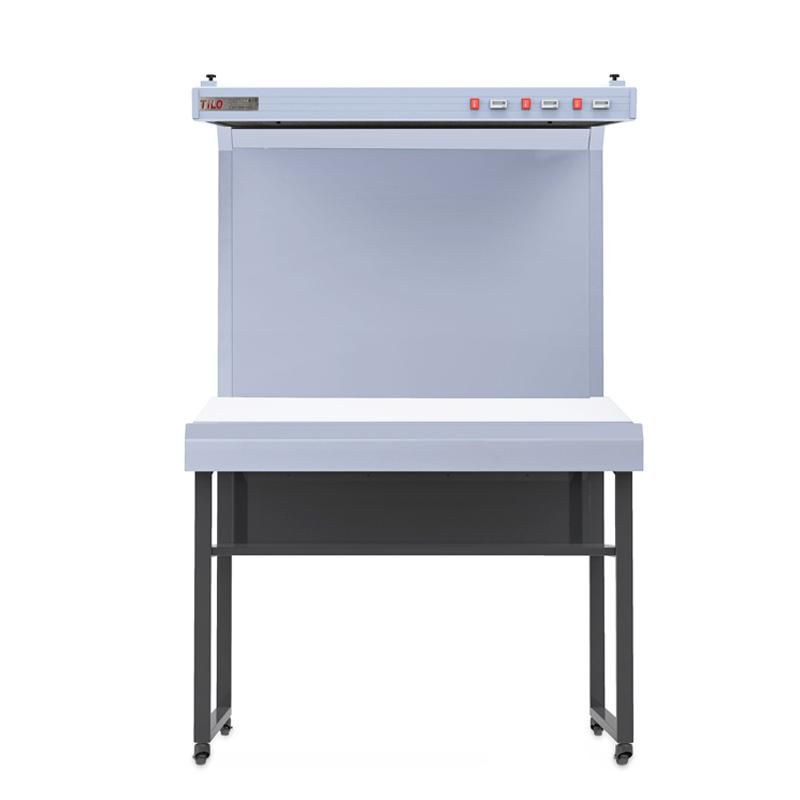

Color Assessment Cabinet CC120-C-3 is a high-mass color evaluation device with three independent light sources (D65, TL84, D50), can simulate different light source environments, with high color rendering index, can realistically restore the color of objects. Made of all-metal materials, it is rugged and suitable for high-demand environments in printing, Spinning & weaving industries.
Features
1. The light source conforms to ISO3664 international standards
2. Color temperature types include D50 (5000K) and D65 (6500K).
3. Use Graphica imported printing press special lamp
4. Color rendering index up to CRI = 98
5. The number of lamps is 36W x 4, with light source Timer
6. All-metal material, sturdy structure
7. The workbench is an overall sheet metal structure, thick and stable
8. The operating table is designed with a bevel, which conforms to visual observation habits
9. The hanging light source adopts aluminum alloy profile, streamlined design, imported reflective plate and uniform light cover plate, uniform light
10. Large folio size, easy to operate
Principle
Standard light sources such as D65, TL84 and D50 are provided to simulate different lighting environments, and high color rendering index lamps are used to truly restore the color of objects to ensure color evaluation under the same Standard light source and reduce Color deviation.
Applications
Printing, Spinning & weaving, dyestuff, Plastic, Cosmetics, Hardware
Steps
1. Connect the power supply (AC220V, 50HZ)
2. Select the desired light source (D65, TL84, or D50)
3. Place the sample on the operating table
4. Observe and evaluate color, use light source Timer to monitor usage time
Notice
• Power supply voltage AC220V, 50HZ
• Regularly check the lamp status to avoid light source attenuation affecting the accuracy of the assessment
• Keep the equipment clean to avoid dust affecting the uniformity of lighting
• Use the light source Timer to replace the aging lamp in time
• Avoid use in humid or high temperature environments to extend equipment life
