Overview

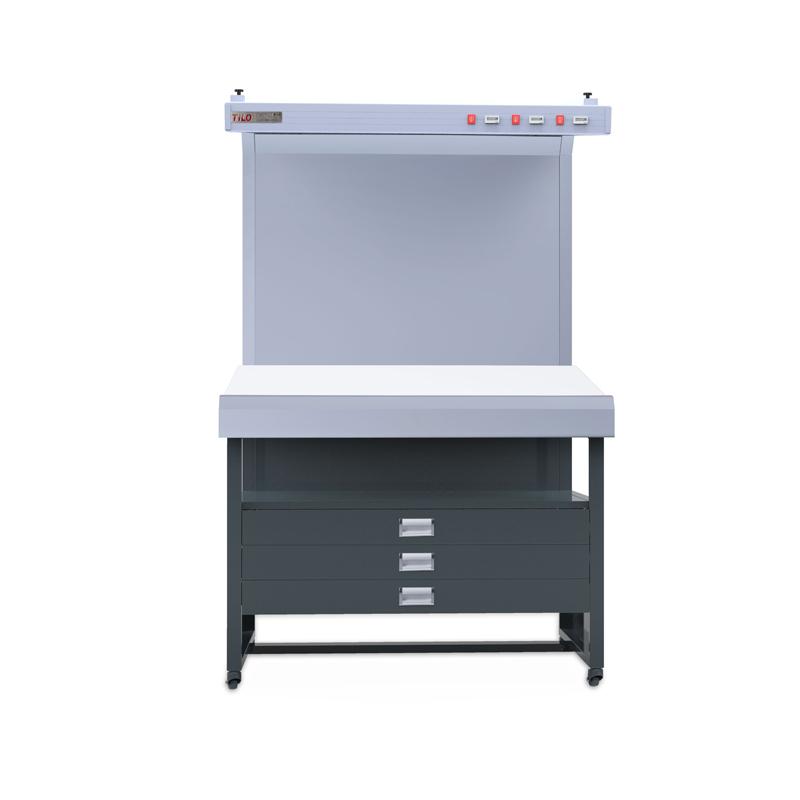

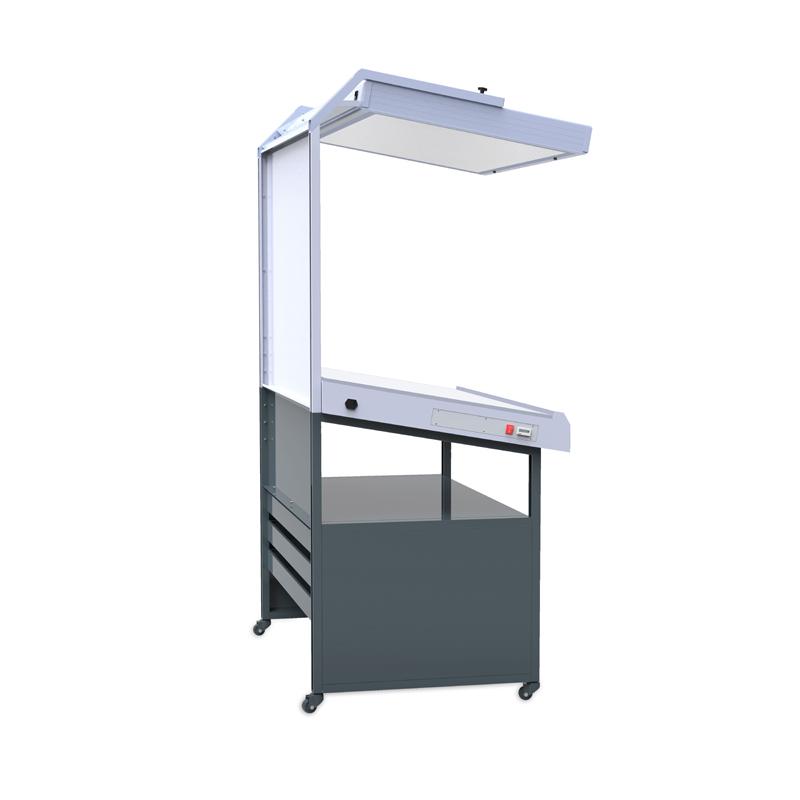

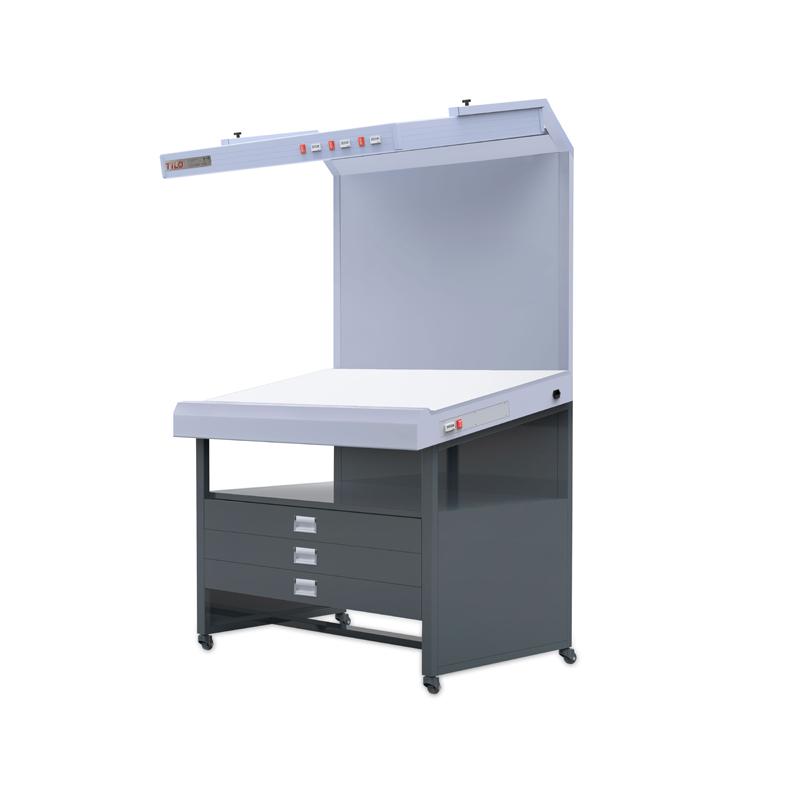

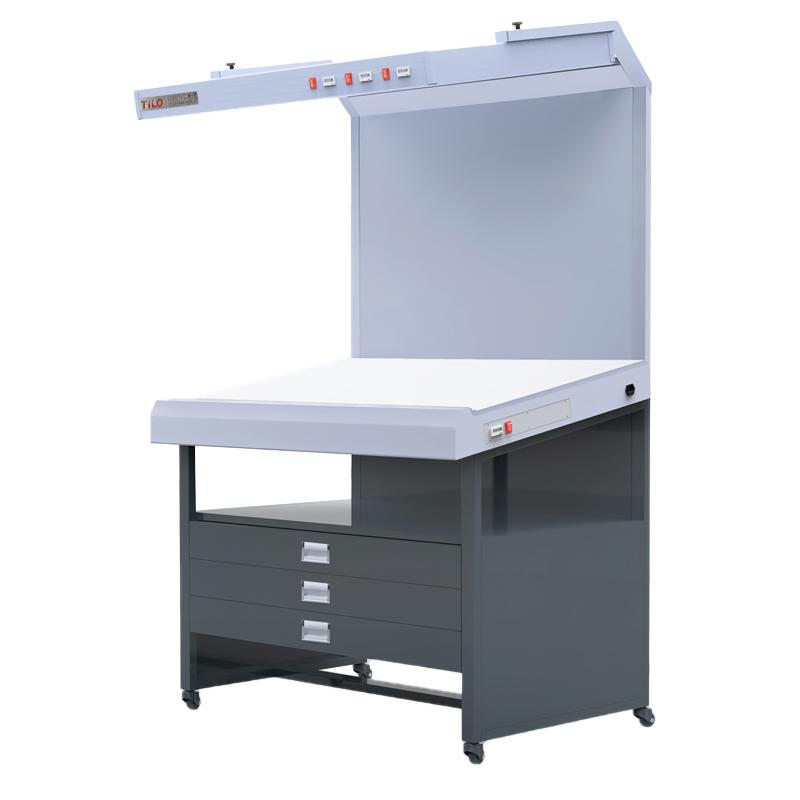

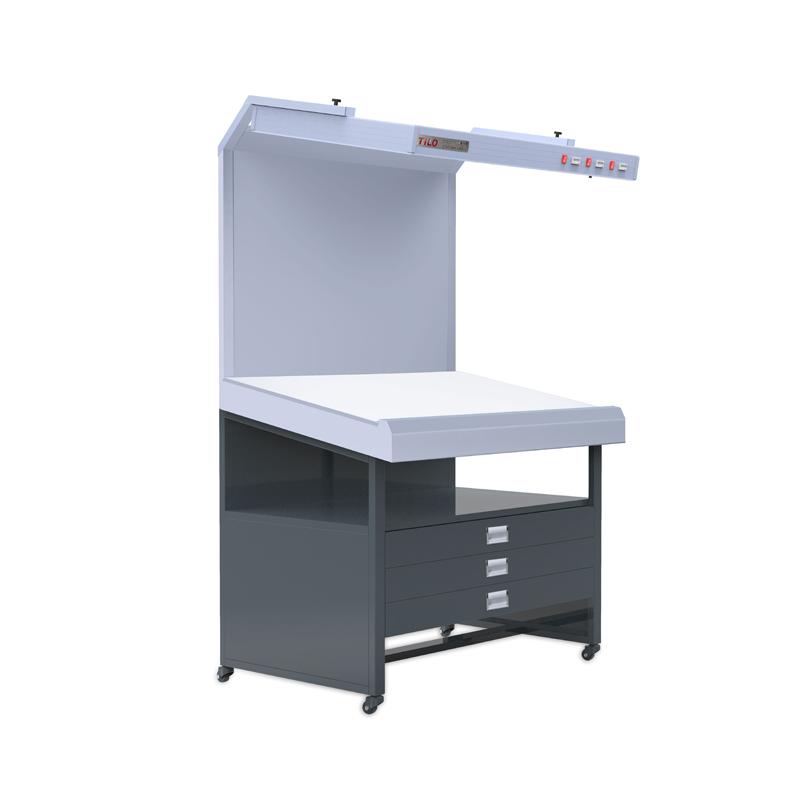

The CC120-D-3 Color Assessment Cabinet is an all-metal color inspection device with three light sources and three drawers for easy sample storage. With a high color rendering index and light source Timer, it meets ISO3664:2009 standards and is suitable for Spinning & weaving, printing, dyeing, paints, plastics and other industries for Color matching, quality control and visual evaluation.
Features
1.Comply with ISO3664 International Standard light source
2. Color temperature types include D50 (5000K) or D65 (6500K).
3. Adopt Graphica imported printing press special lamp series
4. High color rendering index, CRI = 98
5. The number of lamps is 36W x12, with light source Timer
6. All-metal material, strong and stable structure
7. The workbench is a whole sheet metal structure, and the inclined operation table conforms to visual observation habits
8. The hanging light source adopts aluminum alloy profile, streamlined design, imported reflective plate and uniform light cover plate, uniform light
9. Large folio size, easy to operate
Principle
Color Assessment Cabinet ensures the accuracy and conformity of Color Assessment by providing a variety of Standard light sources (e.g. D50, D65, TL84) to illuminate the sample at a specific color temperature and color rendering index. Light source Timer records usage time and helps maintain light source Stability in accordance with ISO 3664:2009 standards.
Applications
Printing, Spinning & weaving, Dyeing, paints, Plastics, Hardware
Steps
1. Turn on the power supply and turn on the device.
2. Select the desired Light source type (e.g. D50, D65 or TL84)
3. Place the sample on the operating table for observation
4. Use a drawer to store or remove samples
5. Turn off the light source and power supply
Notice
• Power supply voltage AC220V, 50HZ
• Regularly check lamp and Timer status
• Avoid use in humid or high temperature environments
• Turn off the light source in time after use to prolong life
• Keep the equipment clean to avoid dust accumulation
