Overview

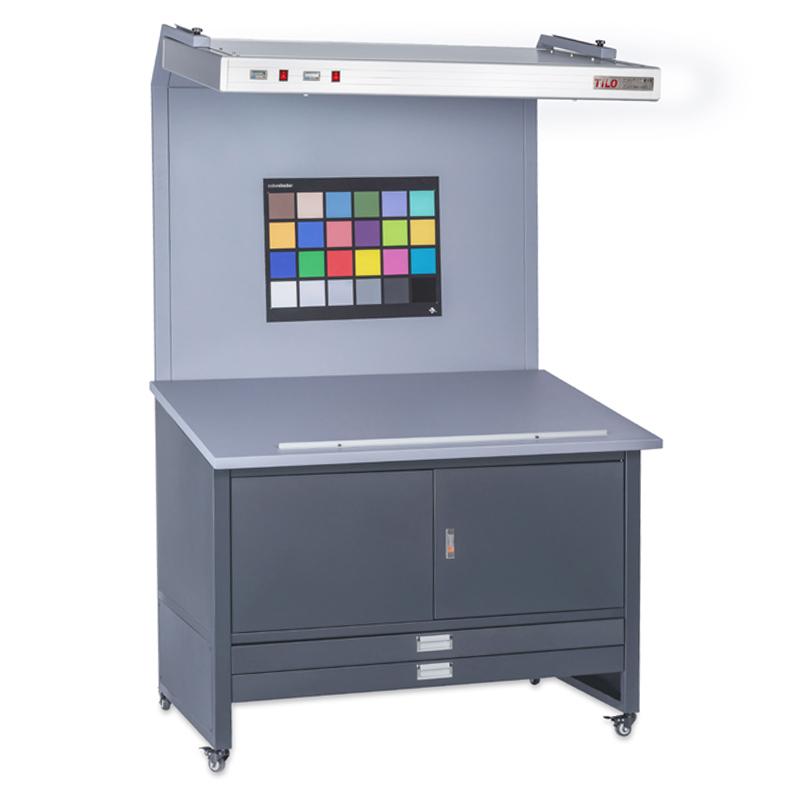

CC120-E-3 Color Assessment Cabinet is a printing viewing table that complies with ISO3664 international standards. It provides single light source, dual light source, and three light source configurations, with high color rendering index and light source Timer function. All-metal material structure, large folio size design, easy operation, suitable for printing industry environment requirements high workshop or proofing center, support offset, flexo, gravure and other printing plants to directly read the reflection manuscript to ensure accurate Color determination.
Features
1. The light source conforms to ISO3664 international standards
2. Color temperature type available D50 (5000K) or D65 (6500K)
3. Adopt Graphica imported printing press special lamp series
4. High color rendering index, CRI = 98
5. The number of lamps is 36W x 4, with light source Timer
6. All metal material, real material
7. The workbench is an overall sheet metal structure, thick and stable
8. Operating table bevel design, in line with visual observation habits
9. The hanging light source adopts aluminum alloy profile, streamlined design, beautiful and elegant, equipped with imported reflective plate and uniform light cover plate, uniform light
10. Large folio size, easy to operate
Principle
Color Assessment Cabinet is based on the scientific principle that different light sources have different radiation energies, and irradiates items under the same light source and controllable conditions to accurately display Color. It provides Standard light sources such as D65, D50, TL84, CWF, etc., to ensure that the light source environment is consistent in printing Color management, to avoid color difference judgment errors due to differences in rays of light, so as to effectively calibrate the color deviation of printing products, and has the function of testing the effect of the same color spectrum.
Applications
Printing, Dyeing Spinning & weaving, Plastic, Hardware and other Color Management Fields
Steps
1. Turn on the power supply, the voltage is AC220V, 50HZ
2. Standard light source type (such as D65, D50, TL84, etc.)
3. Turn on the light source and use the light source Timer to monitor the use time
4. Place the reflection manuscript on the operating table for Color comparison
5. Observe and calibrate Color deviation to ensure compliance with quality requirements
Notice
• Color verification must be performed under the same Standard light source and controlled conditions
• Regularly check the state of the lamp to ensure that the color rendering index is stable
• Avoid use in non-standard environment light sources to prevent inaccurate color difference determination
• Turn off the light source in time after use to prolong the life of the equipment
