Overview

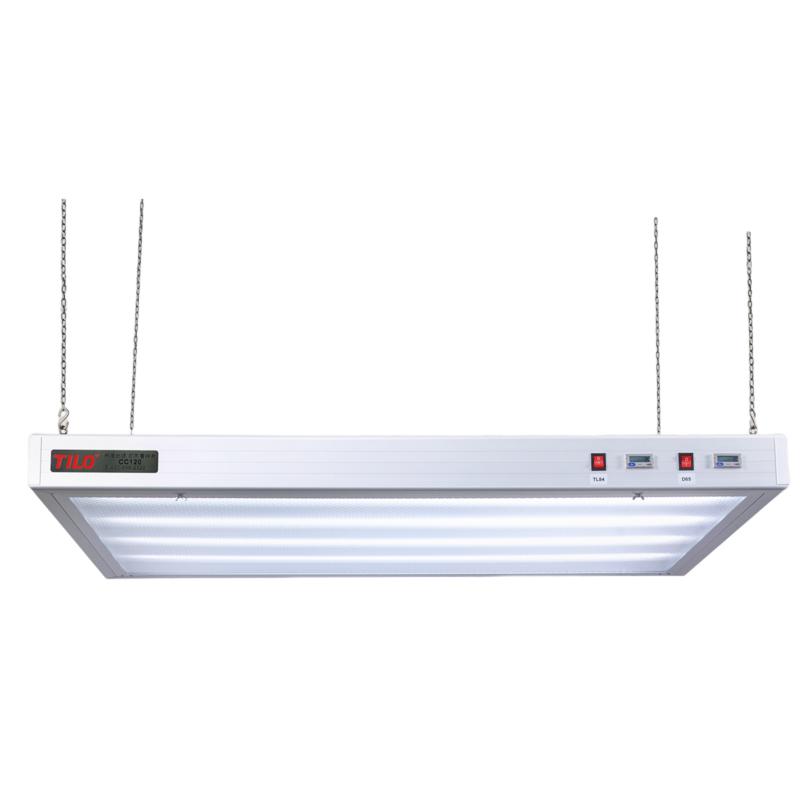

CC120-W-3 Color Assessment Cabinet is a hanging light source box of the 3nh brand, providing single light source, dual light source, and three light sources. The product is made of all metal material, large folio size design, easy to operate, equipped with high color strength index lamp tube and light source Timer. It complies with ISO 3664:2009 industry lighting standards. It is suitable for printing factory workshops, advertising agencies, output centers and other places that require color management. It can be hung on the viewing table or ceiling to ensure accurate comparison of Color deviations under Standard light sources.
Features
1. The light source conforms to ISO3664 international standards
2. Color temperature types include D50 (5000K) or D65 (6500K).
3. The lamp series is dedicated to Graphica imported printing press
4. Color rendering index CRI = 98, high color strength index
5. The number of lamps is 36W x12, with light source Timer
6. The material is aluminum alloy, and the material used is real
7. The frame material is aluminum alloy profile, streamlined design, beautiful and elegant, imported reflective plate and uniform light cover plate, uniform light
8. The light cover is openable, and the lamp tube is easy to replace
9. Hanging materials include back hooks and load-bearing steel chains, which can be directly hung from the ceiling or fixed to the bench
10. The size is large folio size, easy to operate
Principle
Color Assessment Cabinet is based on scientific principles. Different light sources have different radiation energies, and different colors will appear when irradiating the same item. Therefore, when verifying the color of the goods, it must be carried out under the same light source and controllable conditions. This product provides Standard light sources such as D65, D50, TL84, CWF, etc., to ensure that the environment light source is consistent, and to avoid inaccurate color determination due to differences in rays of light, so as to effectively manage Color and test the effect of homochromatic heterochromic.
Applications
Printing, Dyeing Spinning & weaving, Plastic, Hardware and other Color Management Fields
Steps
1. Install or hang on the grandstand and ceiling
2. Open the uniform light cover and replace the lamp tube as needed
3. Select the desired Light source type (e.g. D65, D50, TL84)
4. Start the light source and use the light source Timer to control it
5. Standard light source for sample, production, Quality control or acceptance, Comparison Color deviation
Notice
• Power supply voltage AC220V, 50HZ
• Use back hooks and load-bearing steel chains during installation to ensure stability
• Regularly check the lamp status and replace it in time to maintain a high color rendering index
• Avoid use in non-Standard light source environments to prevent Color determination errors
• Pay attention to safety during operation to prevent electric shock or falling
