Overview

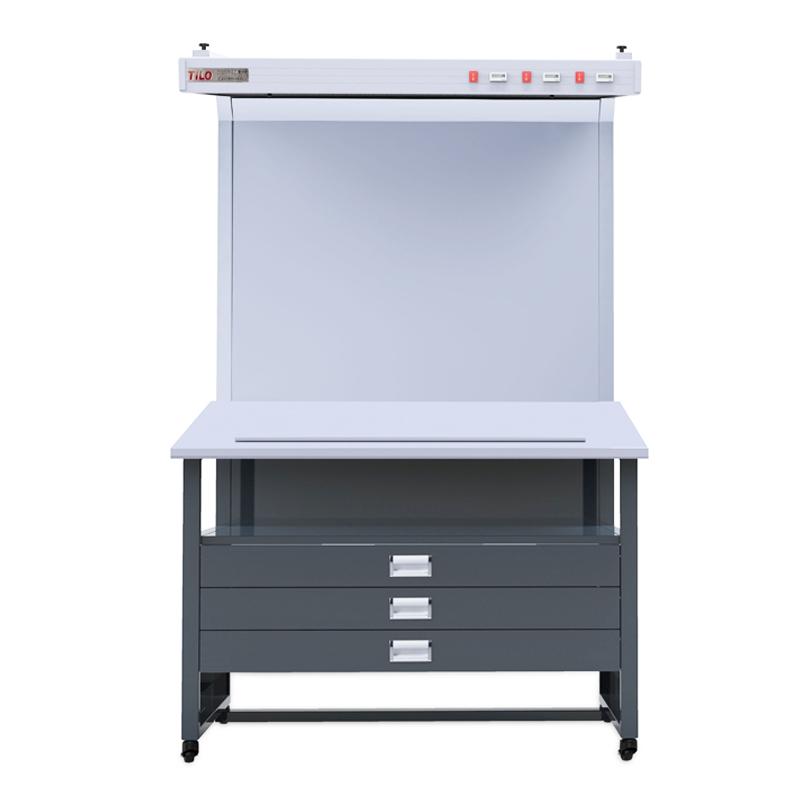

Color Assessment Cabinet CC120-B-2 is a color assessment instrument with high color strength index and all metal material, with three layers of drawers at the bottom. It uses a multi-light source design, including D65 light source (daylight light source) and D50 light source, which can simulate color performance under different lighting conditions. It is widely used in color management and quality control in printing, Spinning & weaving, plastics, Coating and other industries.
Features
1. The light source conforms to ISO3664 international standards
2. Color temperature type is D50 (5000K) or D65 (6500K)
3. The lamp series is dedicated to Graphica imported printing press
4. Color rendering index CRI = 98, high color strength index
5. Number of lamps 36W x 8, with light source Timer
6. All-metal material, stable and durable structure
7. The workbench is an overall sheet metal structure, thick and stable
8. The operating table is designed with a bevel, which conforms to visual observation habits
9. The hanging light source adopts aluminum alloy profile, streamlined design, beautiful and generous, imported reflective plate, uniform light cover plate, uniform light
10. Large folio size, easy to operate
Principle
The instrument simulates different lighting conditions through multi-light source design, high color strength index can more accurately display the true Color and color difference of the object, all-metal material provides a stable test environment to ensure the accuracy of color evaluation results.
Applications
Printing, Spinning & weaving, Plastic, Coating, Hardware and other Color Management Fields
Steps
1. Connect power supply AC220V, 50HZ
2. Select the desired light source (D50 or D65)
3. Place the sample on the operating table for observation
4. Use the light source Timer to monitor the usage time
Notice
• Power supply voltage AC220V, 50HZ
• Regularly check the state of the lamp tube to keep the light uniform
• Avoid use in non-standard environments to ensure color evaluation accuracy
• Pay attention to maintaining the metal structure to prevent corrosion or damage
