Overview

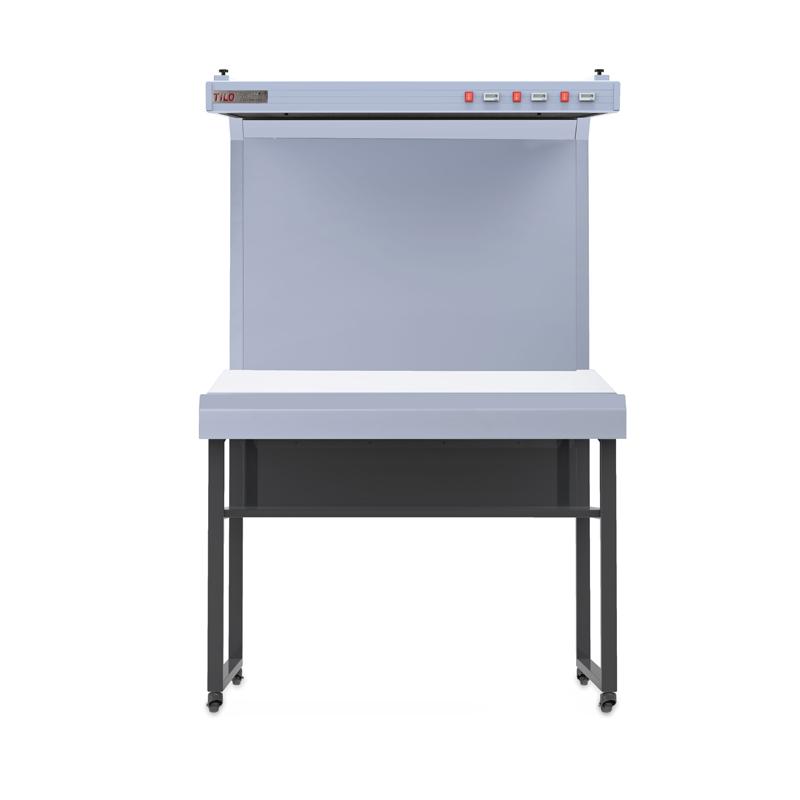

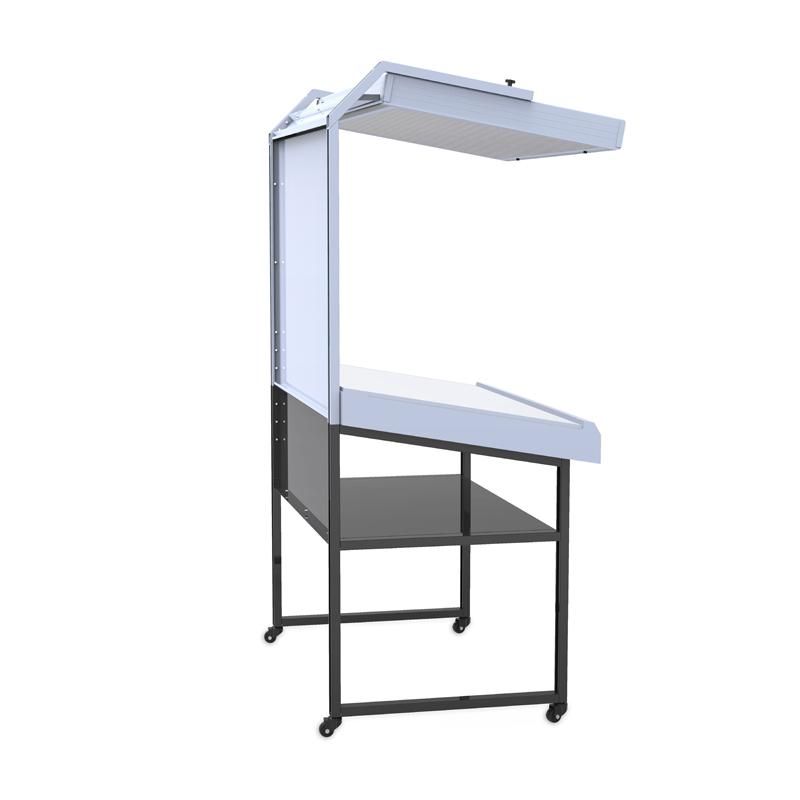

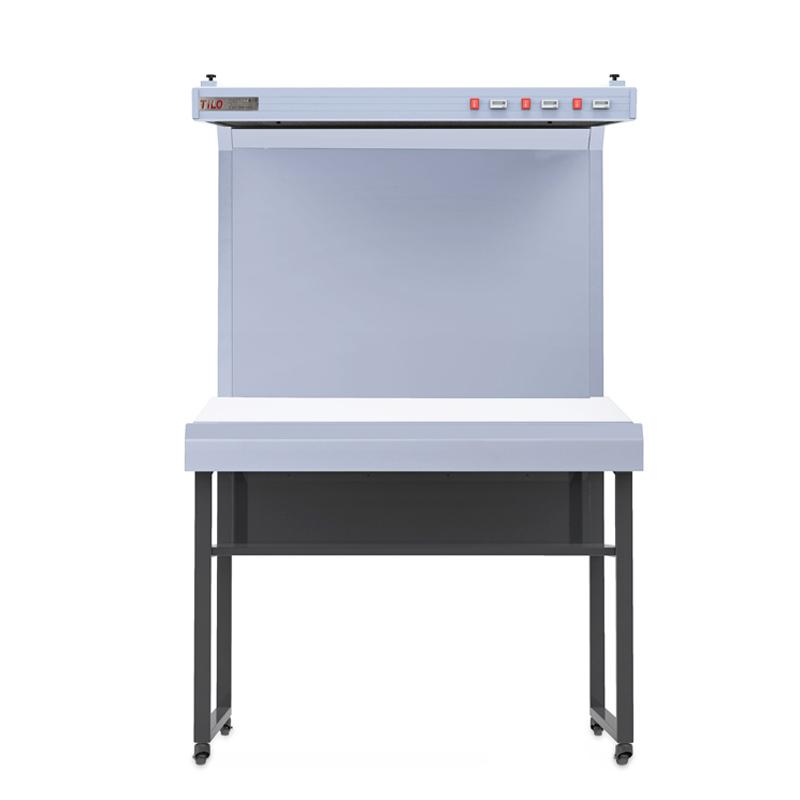

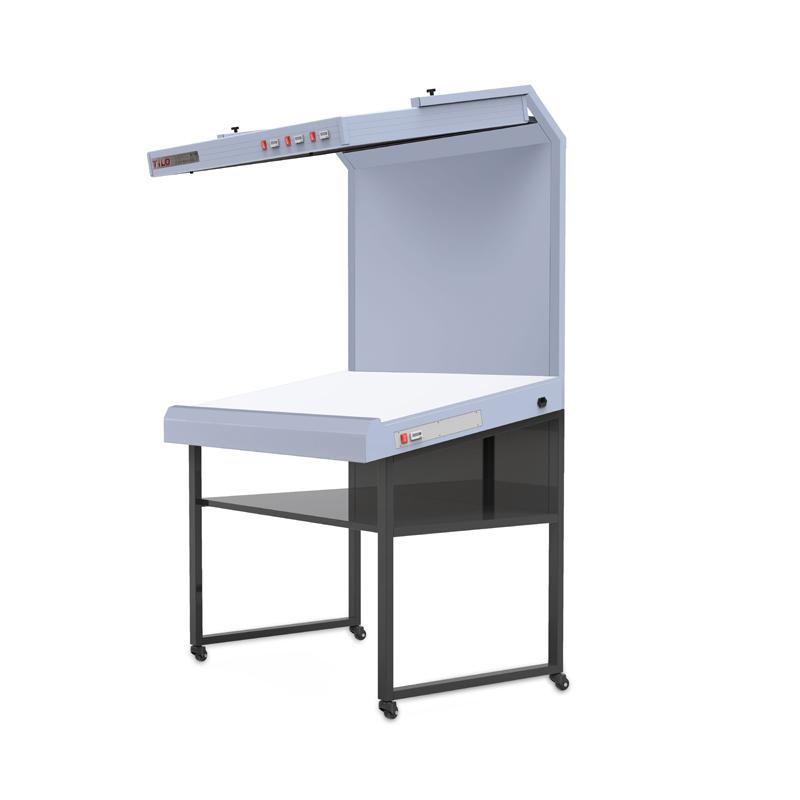

Color Assessment Cabinet CC120-C-1 is a high-mass color evaluation device using D65 light source with high color rendering index, which can truly restore the color of objects and provide accurate evaluation. Made of all metal, it is rugged and durable, suitable for Spinning & weaving, printing, dyestuff, plastics, cosmetics and other industries, especially suitable for printing workshops or proofing centers with high environment requirements.
Features
1. The light source conforms to ISO3664 international standards
2. Color temperature type is D65 (6500K)
3. Use Graphica imported printing press special lamp
4. High color rendering index CRI = 98
5. The number of lamps is 36W x 4, with light source Timer
6. All-metal material, sturdy structure
7. The workbench is an overall sheet metal structure, thick and stable
8. The operating table is designed with a bevel, which conforms to visual observation habits
9. The hanging light source adopts aluminum alloy profile, streamlined design, beautiful and elegant, imported reflective plate and uniform light cover plate to ensure uniform light
10. Large folio size, easy to operate
Principle
The device provides a standard D65 light source, uses a high color rendering index lamp tube to truly restore the color of the object, and combines a uniform light design to ensure uniform lighting for accurate color evaluation and proofreading.
Applications
Spinning & weaving, printing, dyestuff, plastic, cosmetics, printing and dyeing Spinning & weaving, plastic, Hardware and other Color management fields
Steps
1. Power supply voltage AC220V, 50HZ
2. Turn on the light source switch and start the D65 lamp tube
3. Place the sample to be tested on the operating table
4. Visual observation with inclined plane design
5. Use the light source Timer to monitor the usage time
6. Turn off the light source after completing the evaluation
Notice
• Power supply voltage AC220V, 50HZ
• Regularly check the lamp status to ensure color performance
• Keep the operating table clean to avoid affecting the observation
• Use the light source Timer to control the light source usage time reasonably
Avoid use in humid or extreme environments to extend equipment life
