Overview

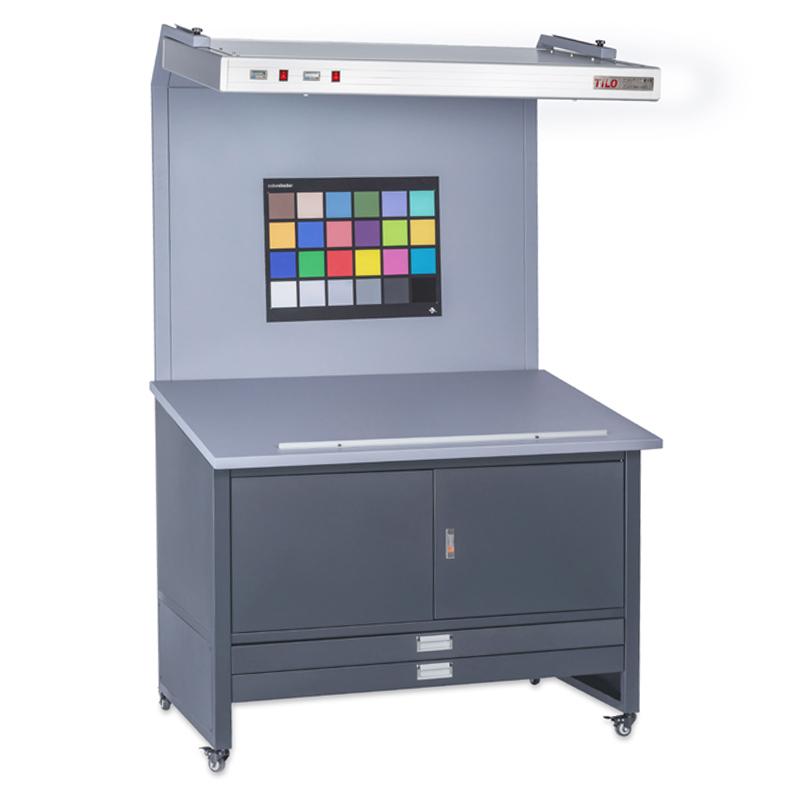

CC120-E-2 Color Assessment Cabinet is a dual light source viewing table that complies with ISO3664 international standards, with high color rendering index and light source Timer function. The all-metal material is sturdy in structure, and the large folio size design is easy to operate. Standard light source commonly used in the printing industry is provided. It is suitable for offset printing, flexo printing, gravure printing and other printing factories. You can directly look at the reflection manuscript to ensure accurate Color determination.
Features
1. The light source conforms to ISO3664 international standards
2. Color temperature type is D50 (5000K) or D65 (6500K)
3. Adopt Graphica imported printing press special lamp series
4. Color rendering index CRI = 98, high color strength index
5. The number of lamps is 36W x 8, with light source Timer
6. All metal material, real material
7. The overall rice gold structure of the work cabinet is thick, strong and stable
8. Operating table bevel design, in line with visual observation habits
9. The hanging light source adopts aluminum alloy profile, the streamlined design is beautiful and generous, and the imported reflector and uniform cover ensure uniform light
10. Large folio size, easy to operate
Principle
Color Assessment Cabinet ensures the conformity of Color determination under different light sources by providing a standardized light source environment. Scientific experiments have shown that different light sources have different radiation energies, which will lead to differences in Color of the same item, so it is necessary to check the Color of the item under the same controllable light source. The product can provide D65 and D50 light sources to choose from, and has the function of testing homochromatic heterochromic effects, which effectively solves the problem of color difference caused by non-standard environment light sources in printing production.
Applications
Printing, Dyeing Spinning & weaving, Plastic, Hardware and other Color Management Fields
Steps
1. Connect power supply AC220V, 50HZ
2. Select the desired Light source type (D50 or D65)
3. Turn on the light source and use the light source Timer to monitor the use time
4. Place the manuscript on the operating table for Color Comparison
5. Turn off the power after use
Notice
• Color comparison must be performed under the same Standard light source
• Regularly check the state of the lamp to ensure that the color rendering index is stable
Avoid use in non-standard environments
• Power supply voltage matching to prevent equipment damage
• Keep the equipment clean to avoid dust affecting the uniformity of lighting
