Overview

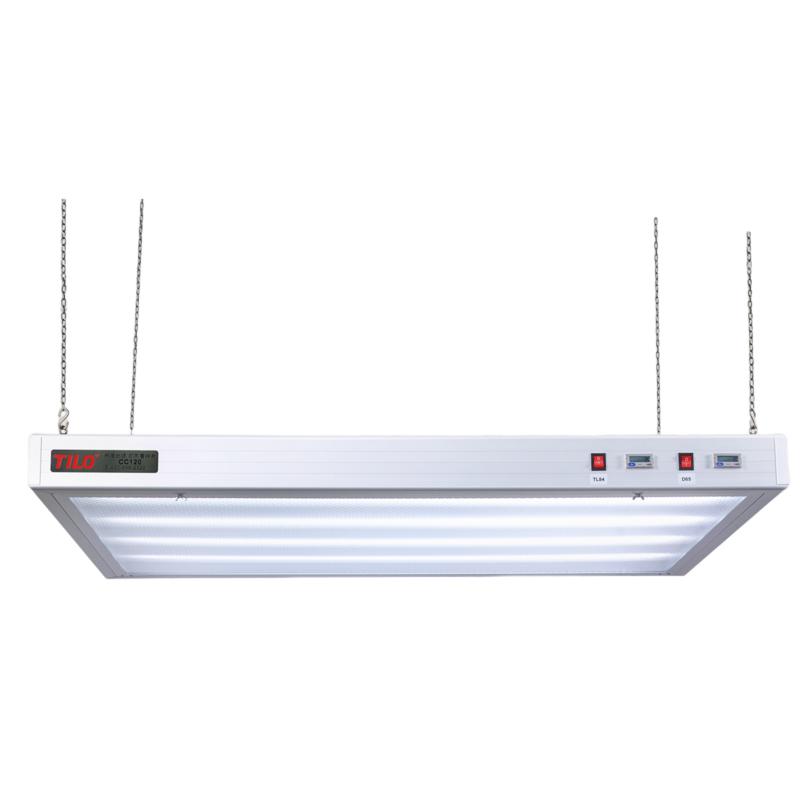

The CC120-W-2 Color Assessment Cabinet is a hanging dual light source device made of all metal, with a large folio size design for easy operation. It provides a standard light source commonly used in the printing industry. It meets the requirements of ISO 3664:2009 industry lighting standards. It is suitable for printing factory workshops, advertising companies and other places that require color management. It can be installed or hung on the stands and ceilings. Scientific tests have shown that different light sources will show different Colors when irradiating the same item. This product can ensure accurate determination of Colors under Standard light sources and avoid color difference problems.
Features
1. The light source conforms to ISO3664 international standards
2. Color temperature types include D50 (5000K) or D65 (6500K).
3. The lamp series is dedicated to Graphica imported printing press
4. Color rendering index CRI = 98, high color strength index
5. The number of lamps is 36W x 8, with light source Timer
6. The material is aluminum alloy, and the material used is real
7. The frame material is aluminum alloy profile, streamlined design, beautiful and elegant, imported reflective plate and uniform light cover plate, uniform light
8. The light cover is openable, and the lamp tube is easy to replace
9. The hanging material has a hook behind it and is equipped with a load-bearing steel chain, which can be directly hung from the ceiling or fixed on the bench
10. The size is large folio size, easy to operate
Principle
Color Assessment Cabinet is based on the scientific principle that different light sources have different radiation energies, and different Colors appear when irradiating items. It provides Standard light sources to ensure Color verification under the same light source and controlled conditions, avoiding the problem of inaccurate color difference determination due to non-standard environment light sources, thus ensuring the accuracy of Color Management.
Applications
Printing factory workshop, advertising company, output center, printing and dyeing Spinning & weaving, plastic, Hardware and other Color management fields
Steps
1. Install or hang the equipment on the stands and ceilings
2. Turn on the device and select the desired Standard light source
3. Place the item to be tested under the light source for Color Comparison
4. Turn off the device after use
Notice
Color comparison under the same Standard light source
• Regularly check the lamp status and replace it if necessary
• Use load-bearing steel chains to ensure safety during installation
Avoid use in non-Standard light source environments
