Overview

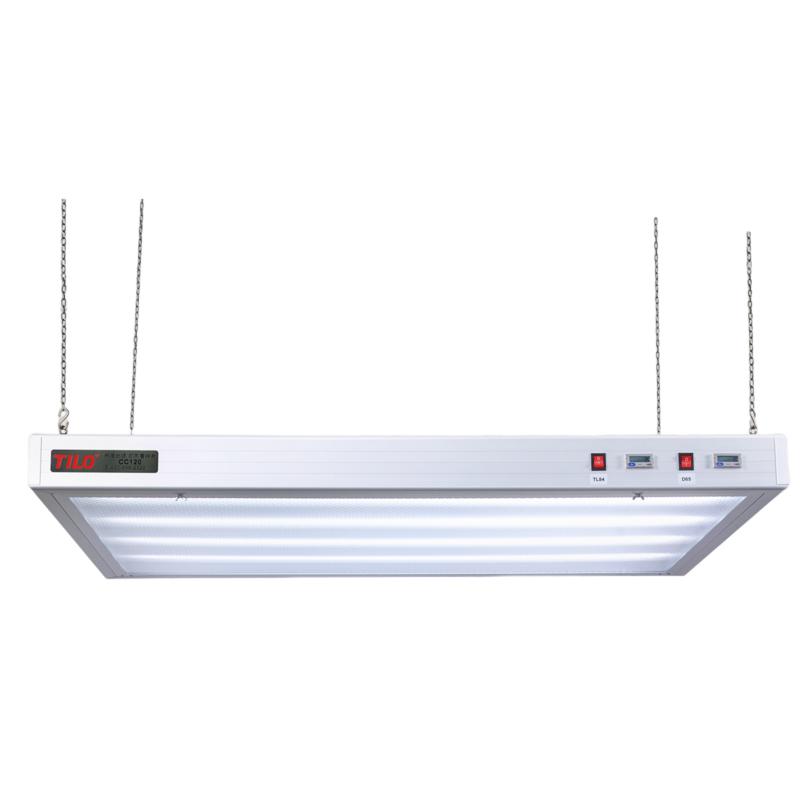

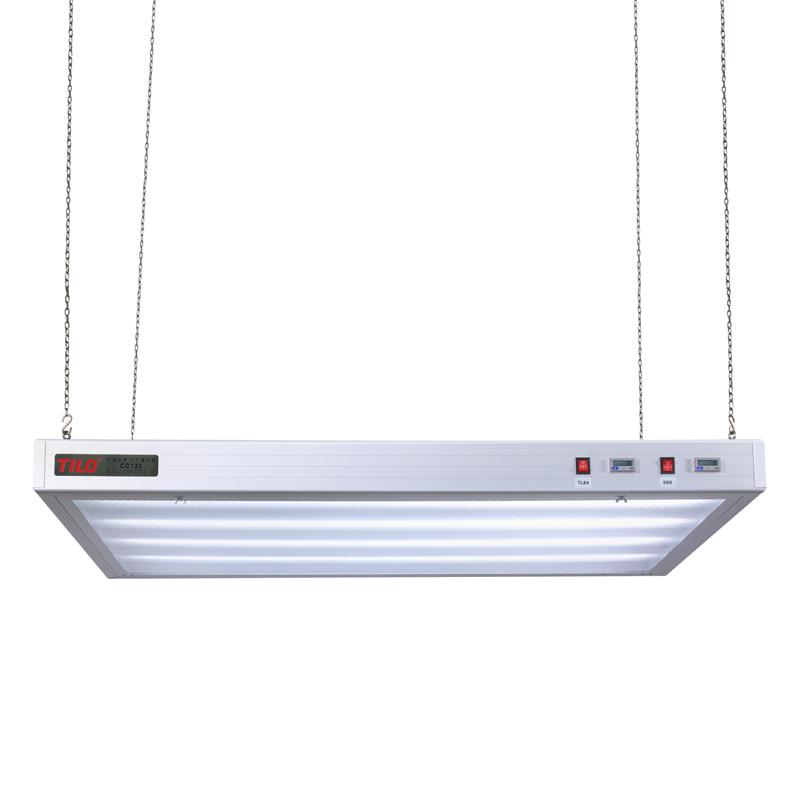

The CC120-W-1 Color Assessment Cabinet is a hanging single light source device made of all metal, with a large folio size design for easy operation. Standard light sources commonly used in the printing industry meet the requirements of ISO 3664:2009 industry lighting standards. It is suitable for printing factory workshops, advertising companies and other places that require color management. It can be hung and installed on the stands and ceilings.
Features
1. The light source conforms to ISO3664 international standards
2. Color temperature type is D65 (6500K)
3. Adopt Graphica imported printing press special lamp series
4. Color rendering index CRI = 98, with high color strength index
5. The lamp is configured as 36W x4, with light source Timer
6. Made of aluminum alloy, the material is practical
7. The frame is made of aluminum alloy profiles, with a streamlined design that is beautiful and elegant
8. Imported reflector and uniform cover to ensure uniform light
9. Openable uniform cover for lamp replacement

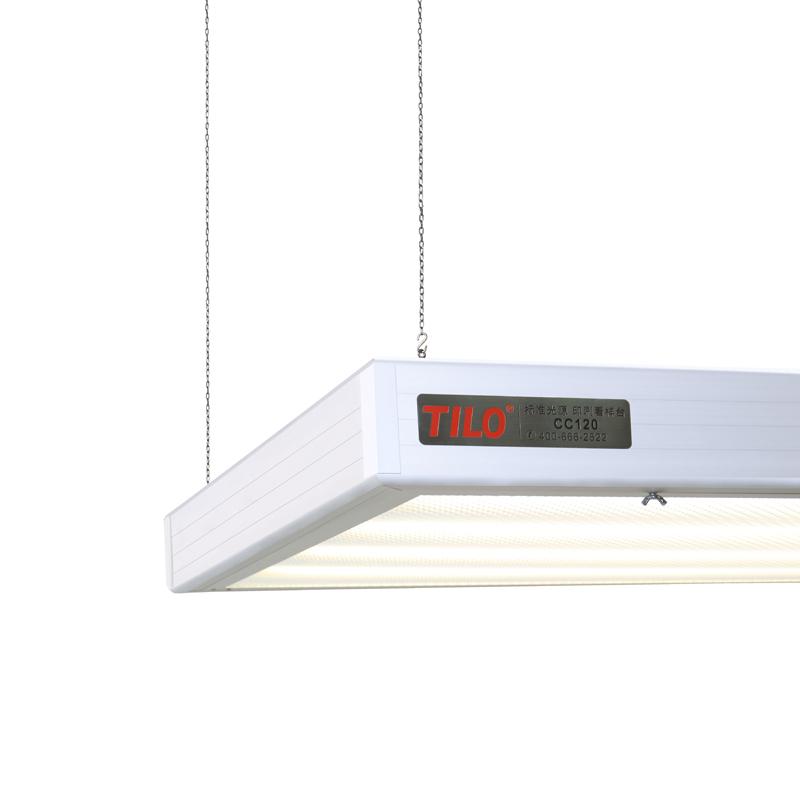

10. With a hook on the back and a load-bearing steel chain, it can be directly hung and installed
11. Large folio size design for easy operation
Principle

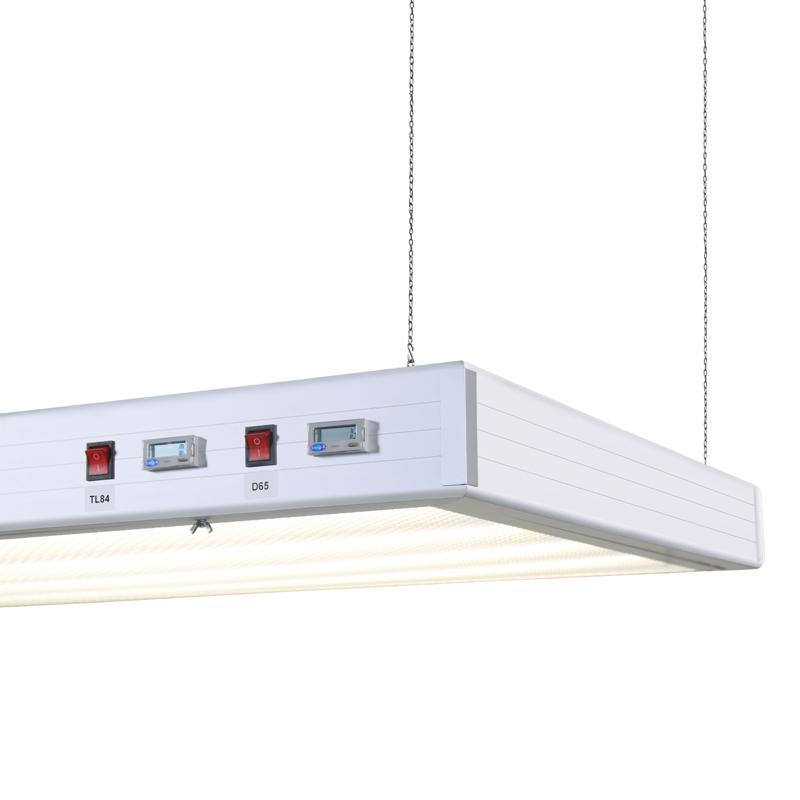

Scientific experiments have found that different light sources have different radiation energies, and different Colors will appear when irradiating the same item. Color Assessment Cabinet provides the same light source and controllable conditions when verifying the Color of goods to ensure the accuracy of Color determination. It has the function of testing the effect of the same color spectrum, and can provide D65, D50, TL84, CWF and other light sources at the same time.
Applications
Printing factory workshop, advertising company, output center, printing and dyeing Spinning & weaving, plastic, Hardware and other Color management fields
Steps
1. Hang the equipment on the grandstand or ceiling
2. Connect AC220V, 50HZ power supply
3. Turn on the device and use Standard light source for Color Comparison
Notice
• Color verification must be performed under the same light source and controllable conditions
• The environment light source needs to be standard and consistent with the light source used by customers
• Regularly check the status of the lamp tube, and facilitate the replacement of the lamp tube through the openable uniform light cover
• Ensure that the load-bearing steel chain is firmly fixed during hanging installation
