Overview

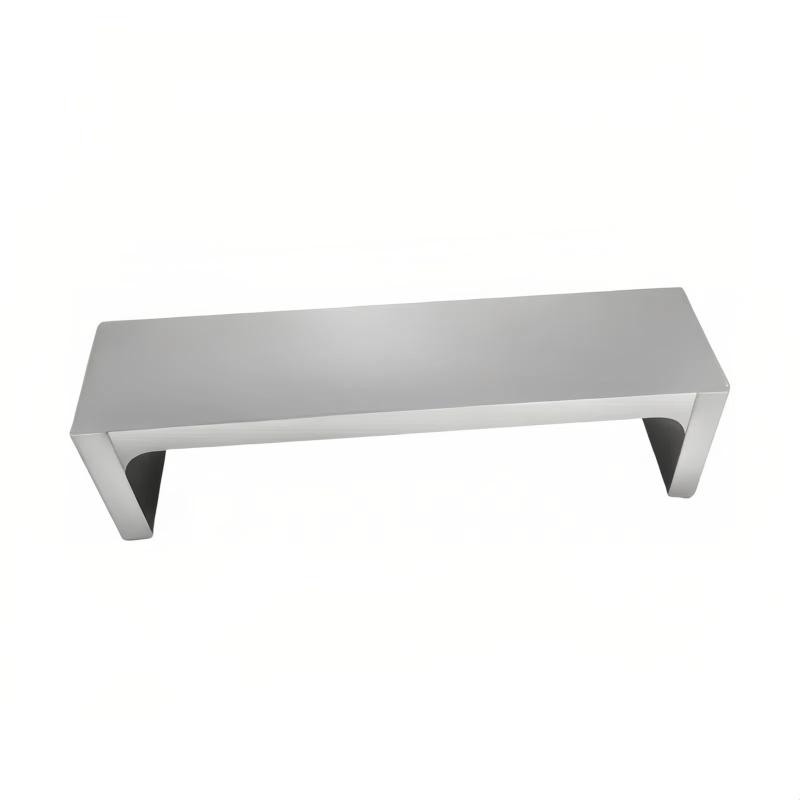

QTG 25/50μm Double Sided Applicator is a laboratory manual film applicator with film Film thickness of 25μm and 50μm, Spreader width 80mm, total length 100mm, film accuracy +/- 2μm. Made of high carbon chromium wear-resistant and anti-corrosion stainless steel, it is tested by imported three coordinates before leaving the factory for dimensional accuracy to ensure film accuracy. Suitable for Moulding of glues, Coating paints, inks, polymer materials, etc., can be equipped with Film Applicator for automatic film scraping.
Features
1. Made of 9Cr18Mo High Hardness Stainless Steel, with Good Abrasion Resistance and corrosion resistance, Hardness value of 50~ 55HRC
2, film accuracy of +/- 2μm
3. Smooth surface, diverse styles, wide range of applications, support for customized specifications
4. Adopt imported three-coordinate detection accuracy, with factory inspection report, can stand Measurement
Principle
Film Applicator manually scrapes on the substrate to form a wet-film of the specified Film thickness. High Accuracy stainless steel material and strict testing process are used to ensure film film thickness and uniformity, and can be used with Film Applicator to realize automatic film scraping.
Applications
Glue, Coating paints, inks, Polymer materials
Steps
1. Prepare the substrate and the material to be coated
2. Place the Applicator on the Substrate
3. Scratch manually or with Film Applicator
4. Remove Applicator to form wet-film
Notice
• Check if Applicator's surface is clean before use
• Maintain uniform force during operation to ensure film accuracy
Avoid collisions and corrosive environments when storing
• Regularly verify accuracy and send for inspection and Measurement if necessary
