Overview

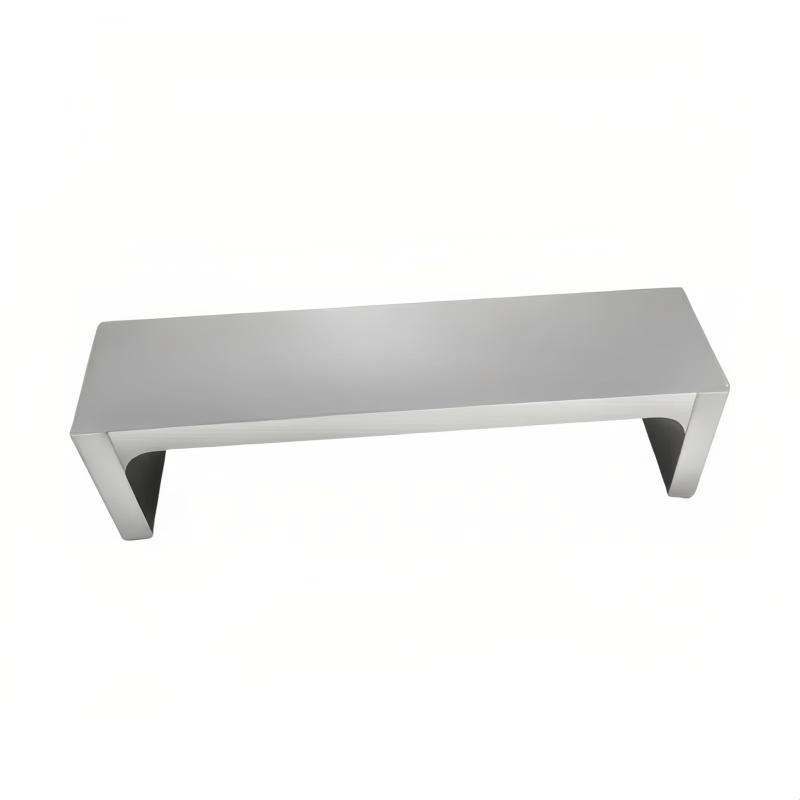

QTG 300/400μm double-sided film Applicator is a laboratory manual film applicator with film Film thickness of 300μm and 400μm, Spreader width 80mm, total length 100mm, film accuracy +/- 2μm. Made of high carbon chromium wear-resistant and anti-corrosion stainless steel, it is tested by imported three coordinates before leaving the factory for dimensional accuracy to ensure film accuracy. It is suitable for Moulding of glues, Coating paints, inks, polymer materials, etc., and can be equipped with Film Applicator for automatic film scraping.
Features
1. Made of 9Cr18Mo High Hardness Stainless Steel, with Good Abrasion Resistance and corrosion resistance, Hardness value of 50~ 55HRC
2, film accuracy of +/- 2μm
3. Smooth surface, diverse styles, wide range of applications, support for customized specifications
4. Adopt imported three-coordinate detection accuracy, with factory inspection report, can stand Measurement
Principle
The Film Applicator manually scrapes the substrate to form a wet-film of the specified Film thickness. The double-sided design provides two coating surfaces with different Film thicknesses (300μm and 400μm), and the High Accuracy stainless steel material ensures film uniformity and accuracy. It can be used with the Film Applicator to achieve automatic film scraping.
Applications
Glue, Coating paints, inks, Polymer materials
Steps
1. Select the appropriate coating surface of the Applicator (300μm or 400μm)
2. Place the Applicator on the Substrate
3. Scratch operation manually or with Film Applicator
4. Clean the Applicator after finishing the film
Notice
• Check if Applicator's surface is clean before use
• Avoid prolonged contact with corrosive substances
Periodically calibrated to ensure film accuracy
Maintain a drying environment during storage
