Overview

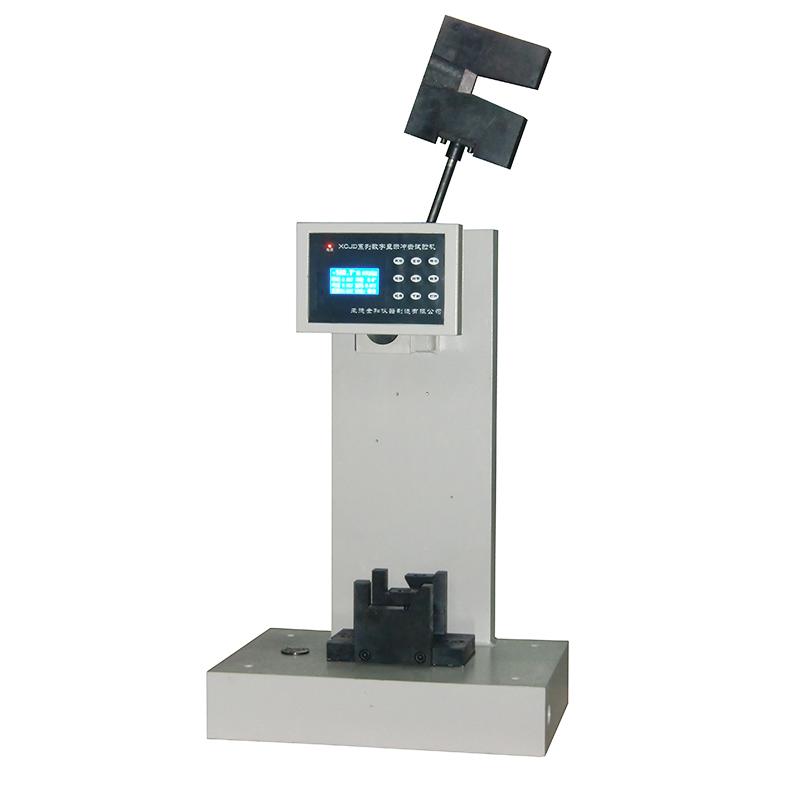

XCJD-5 digital simply supported beam Impact Tester meets ISO179, GB/T1043, JB/T8762 and other standards. It is suitable for impact toughness testing of non-metallic materials such as hard plastics, fiber reinforced composites, nylon, frp, Pottery and porcelain, cast stone, asbestos board, electrical insulation materials, etc., including machined samples and injection molded samples, and also suitable for notched and non-notched samples. It is a suitable testing equipment for the chemical industry, R & D institutions, Universities & colleges, and mass testing departments.
The XCJD-5 digital display simply supported beam Impact Tester is improved on the basis of the pointer dial simply supported beam Impact Tester. It is collected by the High Accuracy swirl/spin encoder to collect the pendulum swing angle and speed information, and calculate the impact strength of the sample through the pendulum energy. The instrument is intelligently controlled and stored by the embedded system, and the test process and results are set and displayed by the LCD display and matrix keyboard, thus replacing the original dial pointer display mode. The angle resolution is high (up to 0.075 °), the display results are accurate and unquestionable, the error caused by human reading is eliminated, and the intelligent control can automatically calculate the results, automatically eliminate the wind resistance error, and save the multiple impact test results.
Features
1. Using single chip control, LCD Chinese display, flexible and convenient operation, high control accuracy.
2. Automatically correct the energy loss caused by friction and wind resistance, without the need for manual calculation.
3. Direct display of the corrected sample absorption energy, improve the Precision and efficiency of the test.
4. By setting the sample size, the impact strength of the sample is automatically calculated after each impact test is completed.
5. After each group of tests is completed, the average impact energy and average impact strength of the group of samples are automatically calculated and displayed.
6. After each group of tests is completed, the test results can be saved with one click for future reference.
Principle
The XCJD-5 digital display simply supported beam Impact Tester collects the pendulum swing angle and speed information by the High Accuracy swirl/spin encoder, and calculates the impact strength of the sample through the pendulum energy. The instrument is intelligently controlled and stored by an embedded system, and the test process and results are set and displayed by an LCD display and a matrix keyboard, thus replacing the original dial pointer display.
Applications
Chemical industry, R & D institutions, Universities & colleges, mass testing departments
Standards
ISO179、GB/T1043、JB/T8762、GB/T 21189-2007
Steps
1. Set the sample size through the matrix keyboard.
2. Conduct impact tests.
3. Impact strength of the specimen is automatically calculated after the test is completed.
4. After each group of tests is completed, the average impact energy and average impact strength of the group of samples are automatically calculated and displayed.
5. Save the test results with one click.
Notice
• This instrument follows the national standard "1043-2008 Plastics, Determination of Impact performance of simply supported beams" and the international standard "ISO179:2000 Determination of Impact strength of simply supported beams" for simply supported beams Impact Tester.
• Each instrument is inspected in strict accordance with the standard of GB/T 21189-2007 Plastic Simply Supported Beam, Cantilever Beam and Pendulum Impact Tester inspection for tensile impact testing to ensure the accuracy and service life of the product.
