Overview

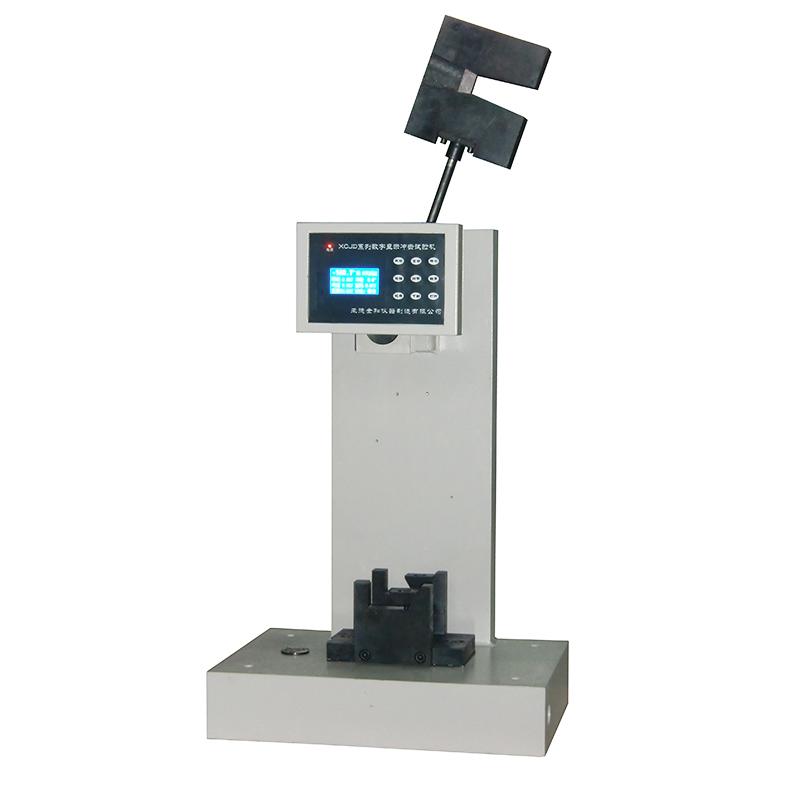

XCJD-50 digital display simply supported beam Impact Tester conforms to ISO179, GB/T1043, JB/T8762 and other standards. It is suitable for impact toughness testing of non-metallic materials such as hard plastics, fiber reinforced composites, nylon, frp, Pottery and porcelain, cast stone, asbestos board, electrical insulation materials, etc., including machined samples and injection molded samples, and also suitable for samples with and without gaps. The instrument is improved on the basis of the simple supported beam Impact Tester of the pointer dial type. The High Accuracy swirl/spin encoder collects the swing angle and speed information of the pendulum, and calculates the impact strength of the sample through the pendulum energy.
Features
1. Using single chip control, LCD Chinese display, flexible and convenient operation, high control accuracy.
2. Automatically correct the energy loss caused by friction and wind resistance, without the need for manual calculation.
3. Direct display of the corrected sample absorption energy, improve the Precision and efficiency of the test.
4. By setting the sample size, the impact strength of the sample is automatically calculated after each impact test is completed.
5. After each group of tests is completed, the average impact energy and average impact strength of the group of samples are automatically calculated and displayed.
6. After each group of tests is completed, the test results can be saved with one click for future reference.
7. With the model of the configured printer, the test results can be printed out for easy archiving.
Principle
The instrument is intelligently controlled and stored by an embedded system, and the test process and results are set and displayed by a liquid crystal display and a matrix keyboard, thus replacing the original dial pointer display mode. The pendulum swing angle and speed information are collected by the High Accuracy swirl/spin encoder, and the impact strength of the sample is calculated by the pendulum energy.
Applications
Chemical industry, R & D institutions, Universities & colleges, mass testing departments
Standards
ISO179、GB/T1043、JB/T8762、GB/T 21189-2007
Steps
1. Set the sample size.
2. Conduct impact tests.
3. Impact strength of the specimen is automatically calculated.
4. Automatically calculate and display the average impact energy and average impact intensity of the group of samples.
5. Save the test results with one click.
Notice
• Follow the national standard "1043-2008 Plastics, Determination of Impact performance of Simply Supported Beams" and the international standard "ISO179:2000 Determination of Impact Strength of Simply Supported Beams" for Impact Tester of Simply Supported Beams.
• Each instrument is inspected in strict accordance with the standards specified in GB/T 21189-2007 Plastic Simply Supported Beam, Cantilever Beam and Pendulum Impact Tester inspection for tensile impact testing.
• Suitable for impact toughness testing of various Non-metallic materials, can use machined and injection molded samples, and is suitable for both notched and non-notched samples.
