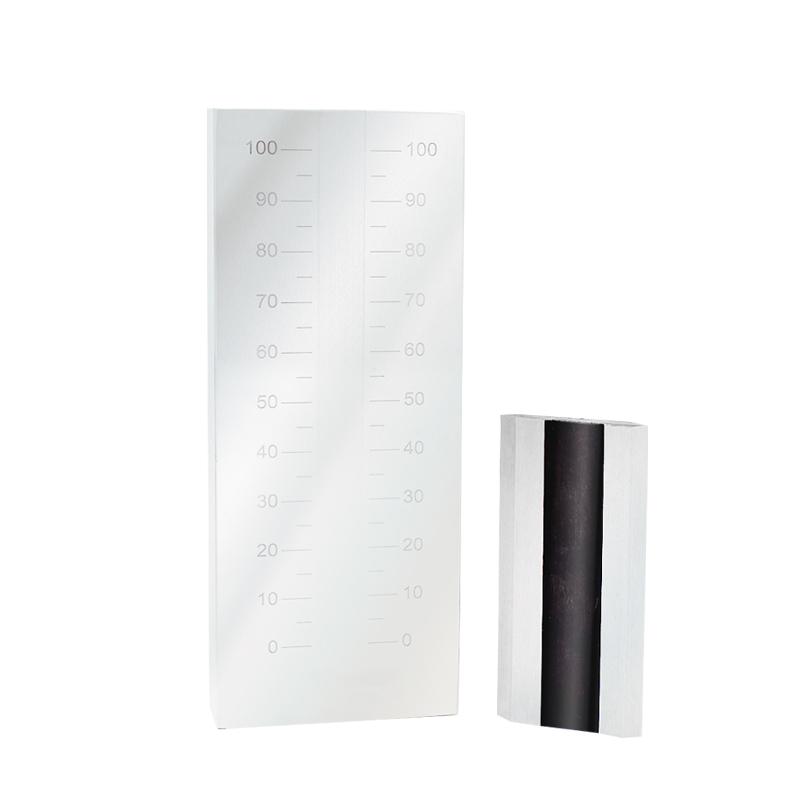

Huinuo QXD-25 Zirconia Pottery and porcelain single-channe Fineness Meter Corrosive material testing

Name: Huinuo QXD-25 Zirconia Pottery and porcelain single-channe Fineness Meter Corrosive material testing
Brand: HuiNuo
SKU: NB043908
Price: 439.0 USD
Availability: InStock

$ 439.00Ex works

Using Zirconia Pottery and porcelain material, with High Hardness and Abrasion Resistance, Good Chemical Stability, Suitable for high temperature environment, Range 0~ 25μm, Groove size 140 × 12.5mm, Ensure measurement accuracy and Repeatability.

Model

Get Quote

Category : Fineness Gauge

Brand : HuiNuo

SKU : NB043908

Service :The delivery and service By NBCLab.Com

Overview

The Grindometer is an instrument used to evaluate the Fineness of pigments, inks, paints, colorants and other particles in a laboratory environment. The China QXD-25 Zirconia Pottery and Porcelain Fineness Meter is a standard single-channe Grindometer with a range of 0 to 25 μm and a groove size of 140 × 12.5mm. It is made of Zirconia Pottery and porcelain and is dedicated to testing Fineness of heavily corroded materials.

Features

1. Made of Zirconia Pottery and porcelain with High Hardness and Abrasion Resistance to Improve Measurement Accuracy and Repeatability 2. Zirconia Pottery and porcelain have Good Chemical Stability and are not easily affected by corrosion or chemical reaction 3. Zirconia Pottery and porcelain High Temperature Stability, suitable for high temperature measurement environment 4. Zirconia Pottery and porcelain have good insulation performance and can be used in electrical and electronic fields

Principle

The Grindometer consists of a scraper and a scraper. By carving one or two grooves of different shades on the scraper, the test sample is scraped from deep to shallow using a scraper, and the particle Fineness is observed by the naked eye. This method is based on physical principles and is relatively simple.

Applications

Coatings, pastes, plastics, inks, paper

Standards

Meet the standard

Notice

• Dedicated to testing the Fineness of heavily corroded materials • Suitable for use in laboratory environments

scraper material
Pottery and porcelain
Range
0~25μm
Graduation
1.25μm
Number of grooves
Article 1
Groove Size
140*12.5mm
Scraper Type
single-channe
Dimension
175 x65 x 13mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
