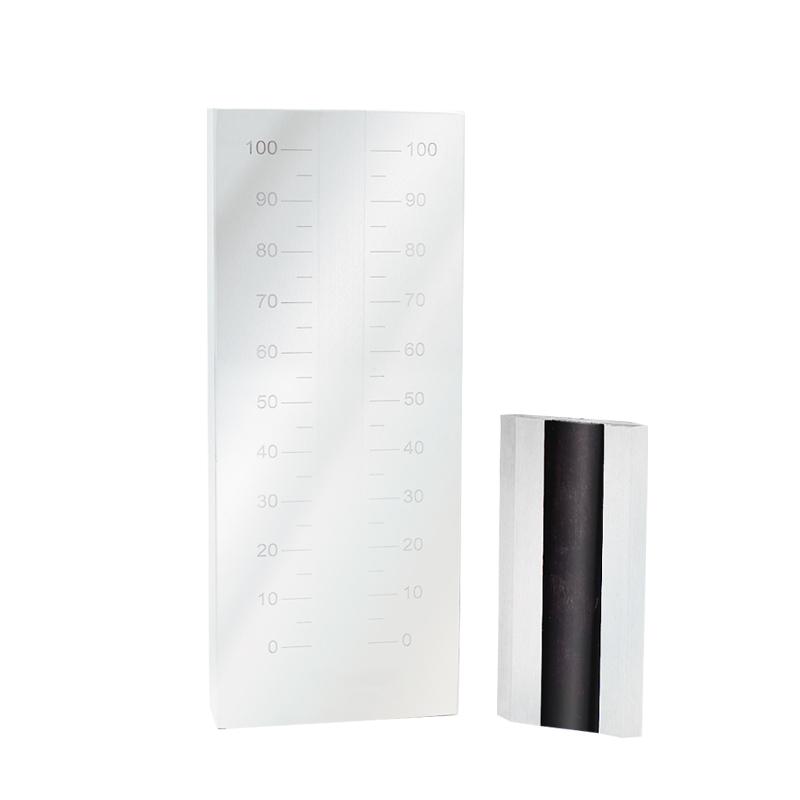

Huinuo QXD-100 Zirconia Pottery and porcelain single-channe Fineness Meter, corrosion resistant material testing

Name: Huinuo QXD-100 Zirconia Pottery and porcelain single-channe Fineness Meter, corrosion resistant material testing
Brand: HuiNuo
SKU: NB043909
Price: 439.0 USD
Availability: InStock

$ 439.00Ex works

Pottery and porcelain zirconia material, Hardness and wear resistance, to ensure stable measurement; Good Chemical Stability, suitable for heavy corrosion material testing, range 0~ 100μm.

Model

Get Quote

Category : Fineness Gauge

Brand : HuiNuo

SKU : NB043909

Service :The delivery and service By NBCLab.Com

Overview

The Grindometer is an instrument used to evaluate the Fineness of pigments, inks, paints, colorants and other particles in a laboratory environment. The China QXD-100 Zirconia Pottery and Porcelain Fineness Meter is a standard single-channe Grindometer with a range of 0 to 100 μm and a groove size of 140 × 12.5mm. It is made of Zirconia Pottery and porcelain and is dedicated to testing Fineness of heavily corroded materials.

Features

1. Made of Zirconia Pottery and porcelain with High Hardness and Abrasion Resistance to Improve Measurement Accuracy and Repeatability 2. Zirconia Pottery and porcelain have Good Chemical Stability and are not easily affected by corrosion or chemical reaction 3. High Temperature Stability, Suitable for high temperature measurement 4. With good insulation performance, it can be used in electrical and electronic fields

Principle

The Grindometer consists of a scraper and a scraper. By carving different shades of grooves on the scraper, the test sample is scraped from deep to shallow using a scraper, and the particle Fineness is observed by the naked eye. This method is based on physical principles and is relatively simple.

Applications

Coatings, pastes, plastics, inks, paper

Steps

1. Prepare test samples 2. Place the sample on the scraper 3. Use a spatula to scrape the sample from deep to shallow 4. Fineness of particles observed by naked eye

scraper material
Pottery and porcelain
Range
0~100μm
Graduation
5μm
Number of grooves
Article 1
Groove Size
140*12.5mm
Scraper Type
single-channe
Dimension
175 x65 x 13mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
