Overview

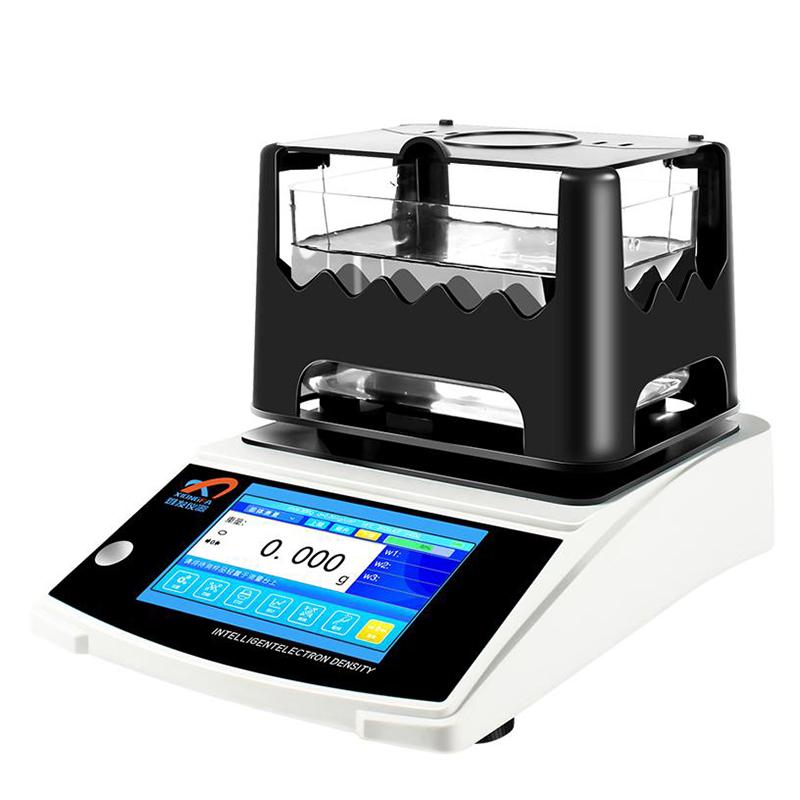

XIONGFA XFCNMD-1200K Touch Screen Solid Density Meter is a precision measuring instrument designed based on the principle of Archimedes substitution method in water, conforming to ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T208, GB/T5163, GB/T1933, GB/T4196, GB/T4123, GB/T5586, JB/T7780 and other standards. It can directly measure the density, volume and percentage of solid, granular, thin film and floating samples.
Features
1.5-Inch touch screen touch operation, built-in guided test step prompts, simplifying the operation process
2. Using STMicroelectronics high-performance 32-bit ARM processor, Measurement accuracy, fast running speed
3. Built-in large-capacity rechargeable lithium battery, using Tesla's same 18650 battery, equipped with an independent battery protection circuit board
4. HBM Sensor imported from Germany, 2uv resolution output, each device has undergone 48 hours of 40 degree high temperature aging test
5. Support solution compensation setting, can use water or Miscellaneous liquid medium
6. Intelligent pinyin Chinese character input, standard RS232 printer interface, support ticket printing and label printing, print content can be freely edited
7. Automatically save 100 sets of measurement data, support statistical analysis, dynamic deletion, export to U disk function
Principle
The Density Meter is based on the Archimedes principle buoyancy method and calculates the density value by measuring the weight difference between the sample in air and water. The measurement process is fast and can be completed in about 5 seconds.
Applications
Rubber, Plastic, Wire and cable, Food, Composites, Cosmetics, Shoe Material, Glass, Precious Metal Hardware, Plastic, Auto Parts, Magnetic Oxygen Core, Powder Metallurgy, Micro Fan, Tire
Standards
ASTM D792、ASTM D297、GB/T1033、GB/T2951、GB/T3850、GB/T533、HG4-1468、JIS K6268、ISO 2781、ISO 1183、GB/T208、GB/T5163、GB/T1933、GB/T4196、GB/T4123、GB/T5586、JB/T7780
Steps
1. Turn on the power supply of the device
2. Follow the touchscreen guide prompts for testing steps
3. Place the sample on the measurement platform
4. Automatic measurement and display results
5. You can choose to save the data or print the results
Notice
• Ensure equipment is properly calibrated before use
• The measurement solution needs to be compensated according to the actual medium
• Avoid Strong Impact or Vibration of Equipment
• Regularly check battery level to ensure measurement Stability
• Please use a compatible USB stick device when exporting data
