Overview

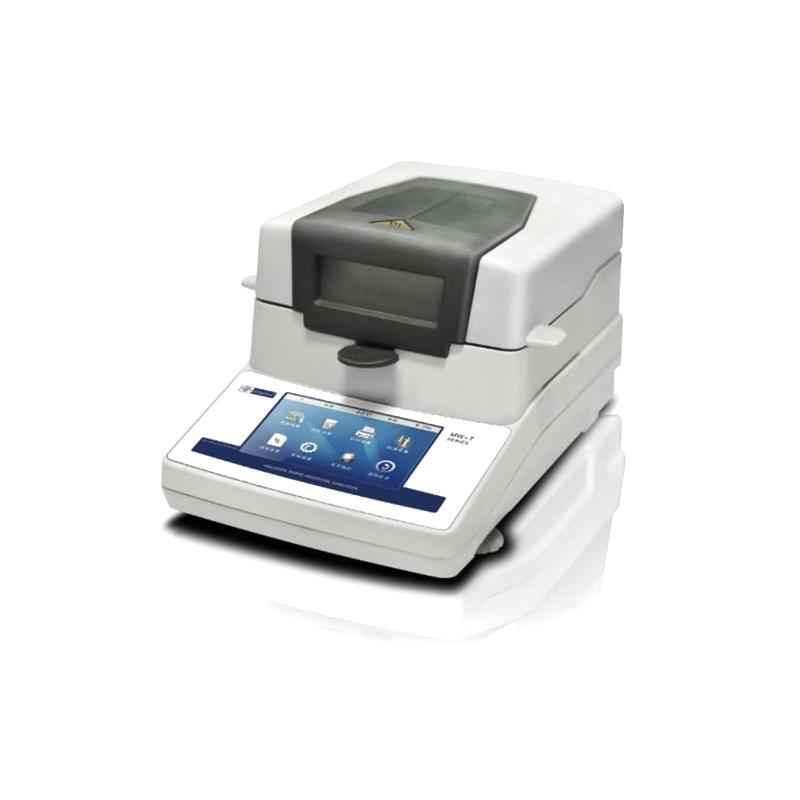

XINGYUN XY100MW-T Electronic Balance is a precision instrument that integrates weighing and moisture determination. It uses Touchscreen operation, has the characteristics of fast measurement and efficient work, and is suitable for water content and solid content analysis of various samples.
Features
1. Adopt 5-inch Touchscreen, with clear display and easy operation.
2. The measurement time is short and the work efficiency is high.
3. The heating chamber adopts pure stainless steel mirror cavity cover, which is resistant to high temperature, easy to clean and has good thermal insulation performance.
4. Soft heating method, uniform heating, stable performance and accurate testing.
5. Fully automatic measurement, measurement alarm reminder, measurement process without supervision.
The temperature is heated to 199 degrees Celsius, and the high temperature resistance of the special material cover can reach more than 260 degrees Celsius.
7. Precision cast aluminum shell, anti-interference, corrosion resistance.
8. The water content and solid content percentage of the sample can be converted simultaneously.
9. No installation, debugging, unpacking can be used.
10. Unique Draft Shield design and imported HBM Sensor make the weighing system more stable.
11. There are 15 sets of storage space, which can store different test variety data.
12. Time, temperature, and heating method can be adjusted according to the sample.
Principle
The Electronic Balance performs High Accuracy weighing with a built-in Load cell Sensor. In moisture measurement mode, the instrument gently heats the sample using the HALOGEN LAMP-2 halogen lamp heating method to evaporate the water, and precisely controls the heating temperature through the PT-100 temperature transducer (40 ° C -199 ° C). The system automatically calculates the percentage data such as moisture content and solids content by calculating the weight change of the sample before and after heating.
Applications
Food, Chemical, Pharmaceutical, Agriculture, Scientific Research, Quality control, Spinning & weaving, Plastic, Grain, Feed, Tea, Tobacco, Paper, Coal, Pottery and porcelain, Building materials
Steps
1. Place the instrument on a stable table and turn on the power supply.
2. Turn it on and set relevant parameters (such as time, temperature, heating method) through the 5-inch Touchscreen.
3. Place the sample in a pan (φ 90mm).
4. Close Draft Shield and start the test program.
5. The instrument automatically heats, weighs, and calculates, and an alarm is issued after the test is completed.
6. Read and record the water content, solid content and other data displayed on the screen.
7. Test data can be stored in 15 sets of built-in storage spaces.
Notice
Please read the instructions carefully before use.
• Please ensure that the instrument is placed on a stable, vibration-free table for use.
• Operating Environment Temperature should be between 5 ° C and 35 ° C.
• The temperature of the heating chamber is high, do not touch the heating chamber during the test to prevent burns.
• When cleaning, please wipe with a soft dry cloth to avoid the use of corrosive cleaners.
• Do not exceed the Capacity value of 110g.
Instruments are precision equipment and should be avoided from violent collisions or vibrations.
• When not in use for a long time, please disconnect the power supply and keep it safe.
