Overview

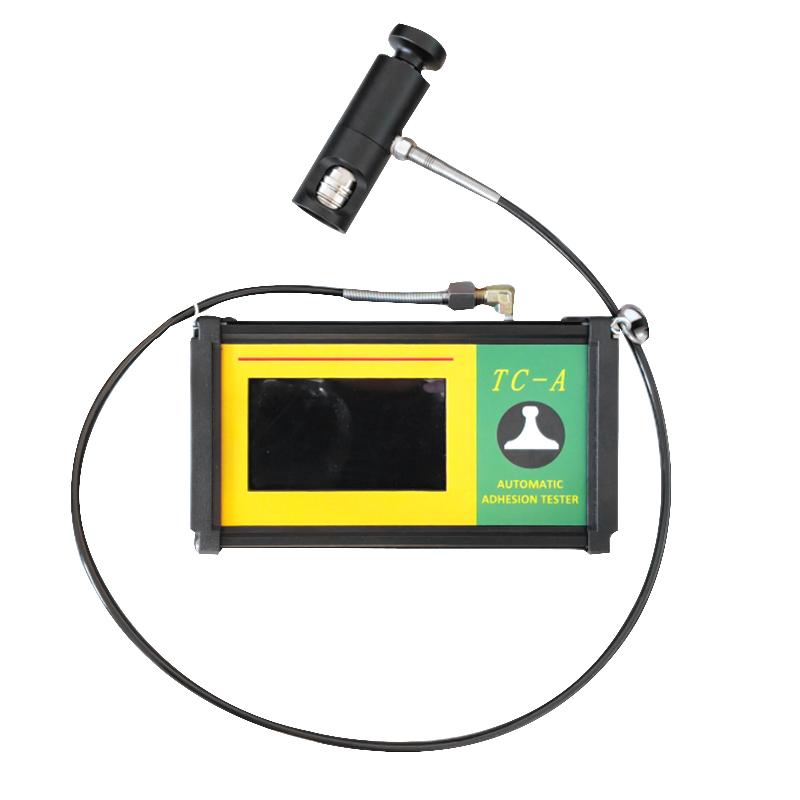

The TC-A10 fully automatic Adhesion Tester is produced by the Tiandi Spark brand for the measurement of adhesion of metal, concrete and Miscellaneous material coatings. The instrument detaches a certain diameter coating on the surface of the tested substrate through a hydraulic system to measure adhesion. It is equipped with a multi-function touch LCD screen to display the detection process in real time, and display the results in MPa, kN or Psi. It is designed and manufactured according to international and Chinese relevant standards, with stable performance.
Features
1.1280 * 720 high definition IPS touch display
2. Automatic conversion result, spindle size 10mm
3. Electric loading, adjustable rate
4. Three display units of kN/Mpa/Psi
5. The memory card stores data, and the data can be viewed online by the computer
6. Bluetooth printer can print test data (optional)
7. Drawing force value - Linear dispersion display
8. Large-capacity memory card, capable of storing 100,000 pieces of data
9. Load setting, no need to destroy the detection surface after passing the test
10. Data is automatically stored, the fastest 0.2S to store 1 data
11. Adjustable screen luminance
12. Automatic shutdown can be set
13. Chinese and English display switching
14. Engineering Plastic Encasement Box, Rainproof, Dustproof, Anti-impact
Principle
The tester uses a hydraulic system to detach a certain diameter coating from the surface of the tested substrate to measure coating adhesion. During the test, the multi-function touch LCD screen displays the detection process of adhesion in real time, and displays the measurement results in MPa, kN or Psi.
Standards
ISO 4624、ASTM D 4541、ASTM D7234、GB/T 5210-2006、TB-T2965-2011
Steps
1. Prepare the surface coating of the tested substrate
2. Set test parameters and units
3. Start the electric loading system for testing
4. Observe the drawing force value on the display - Linear dispersion
5. Data is automatically stored or printed through a Bluetooth printer (optional)
6. Storage data can be viewed online through the computer
