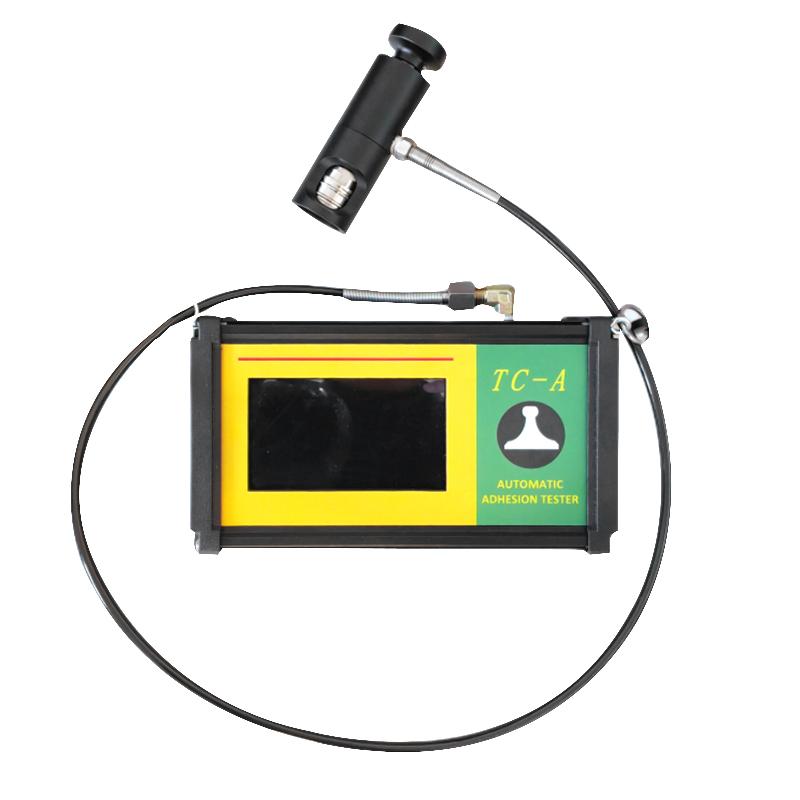

Tiandi Spark TC-A14 Automatic Adhesion Tester Automatic Pull-out 14mm Spindle

Name: Tiandi Spark TC-A14 Automatic Adhesion Tester Automatic Pull-out 14mm Spindle
Brand: Tiandi Spark
SKU: NB043970
Price: 1935.0 USD
Availability: InStock

$ 1935.00Ex works

Using 14mm spindle diaMeter, Measurement range 0-45.5 MPa, with adjustable electric loading rate, support for pull-out force-time Linear dispersion display and large-capacity data storage.

Model

Get Quote

Category : Pull-Off Adhesion Tester

Brand : Tiandi Spark

SKU : NB043970

Service :The delivery and service By NBCLab.Com

Overview

The TC-A type automatic pull-out Adhesion Tester can measure the adhesion of metal, concrete and Miscellaneous materials coatings. The instrument uses a hydraulic system to remove a certain diameter of coatings on the surface of the tested substrate to measure coating adhesion. The multi-function touch LCD screen of the tester displays the adhesion detection process in MPa or kN or Psi.

Features

1.1280 * 720 high definition IPS touch display 2. Automatic conversion result, spindle size 14mm 3. Electric loading, adjustable rate 4. Three display units of kN/Mpa/Psi 5. The memory card stores data, and the data can be viewed online by the computer 6. Bluetooth printer can print test data (optional) 7. Drawing force value - Linear dispersion display 8. Large-capacity memory card, capable of storing 100,000 pieces of data 9. Load setting, no need to destroy the detection surface after passing the test 10. Data is automatically stored, the fastest 0.2S to store 1 data 11. Adjustable screen luminance 12. Automatic shutdown can be set 13. Chinese and English display switching 14. Engineering Plastic Encasement Box, Rainproof, Dustproof, Anti-impact

Principle

The working principle of the instrument is to use the hydraulic system to make the coating of a certain diameter on the surface of the tested substrate to measure the adhesion of the coating.

Standards

ISO 4624 "Paints and varnishes-Pull-off test for adhesion", ASTM D 4541 "Standard Test Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers", ASTM D7234 "Standard Test Method for Pull-Off Adhesion Strength of Coatings on Concrete Using Portable Pull-Off Adhesion Testers", GB/T 5210-2006 "Paints and varnish Pull-off adhesion test", TB-T2965-2011 "Technical conditions for waterproof layer of railway concrete bridge deck"

Measurement Range
0-45.5 MPa
Display resolution
0.001 MPa
piston stroke
10mm
Indication Error
≤ +/- 1% (full scale)
Host weight
2.8 Kg
display screen
1280 * 720 high definition IPS touch display
Display unit
kN/Mpa/Psi
data storage
100,000 articles
Spindle Size
14mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
