Overview

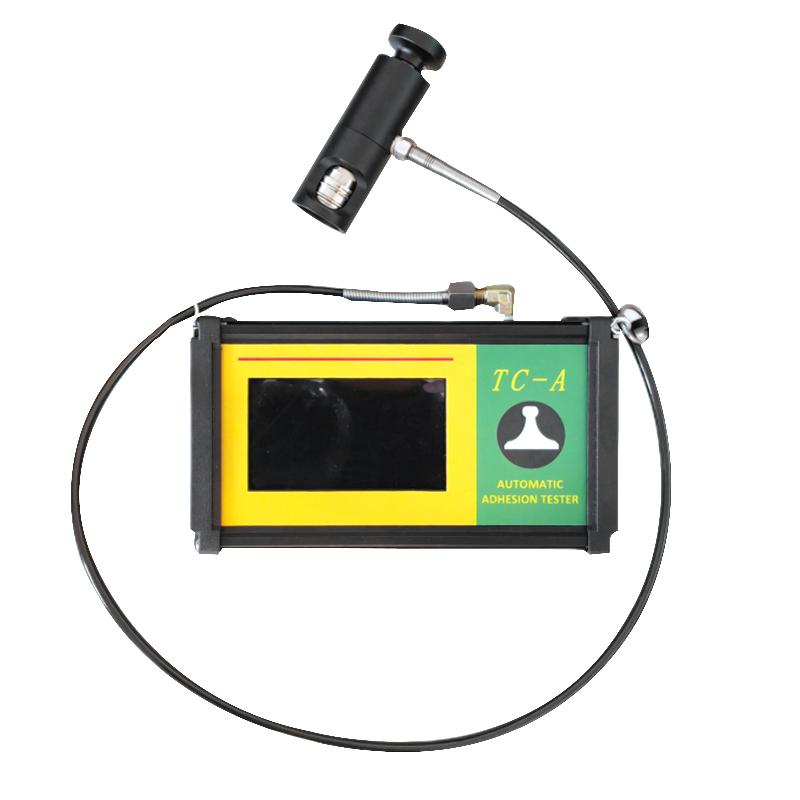

The TC-A20 fully automatic Adhesion Tester is a professional equipment of Tiandi Spark brand for the measurement of adhesion of metal, concrete and Miscellaneous material coatings. The instrument uses a hydraulic system to detach the surface coating of the tested substrate to measure adhesion. It is equipped with a multi-function touch LCD screen to display the detection process in real time. It supports MPa, kN, Psi unit display. It is designed and manufactured according to international and Chinese relevant standards, and has stable performance.
Features
1.1280 * 720 high definition IPS touch display
2. Automatic conversion result, spindle size 20mm
3. Electric loading, adjustable rate
4. Three display units of kN/Mpa/Psi
5. The memory card stores data, and the data can be viewed online by the computer
6. Bluetooth printer can print test data (optional)
7. Drawing force value - Linear dispersion display
8. Large-capacity memory card, capable of storing 100,000 pieces of data
9. Load setting, no need to destroy the detection surface after passing the test
10. Data is automatically stored, the fastest 0.2S to store 1 data
11. Adjustable screen luminance
12. Automatic shutdown can be set
13. Chinese and English display switching
14. Engineering Plastic Encasement Box, Rainproof, Dustproof, Anti-impact
Principle
The tester uses a hydraulic system to make a certain diameter coating on the surface of the tested substrate to measure coating adhesion. During the test, the adhesion detection process is displayed in real time through a multi-function touch LCD screen, and the results are displayed in MPa, kN or Psi.
Standards
ISO 4624、ASTM D 4541、ASTM D7234、GB/T 5210-2006、TB-T2965-2011
Steps
1. Prepare the surface coating of the tested substrate
2. Set the spindle diameter to 20mm.
3. Adjust the loading rate
4. Start the electric loading system
5. Observe the drawing force value displayed on the touch screen - Linear dispersion
6. Data is automatically stored or printed through a Bluetooth printer (optional)
7. View stored data or online computer analysis
