Overview

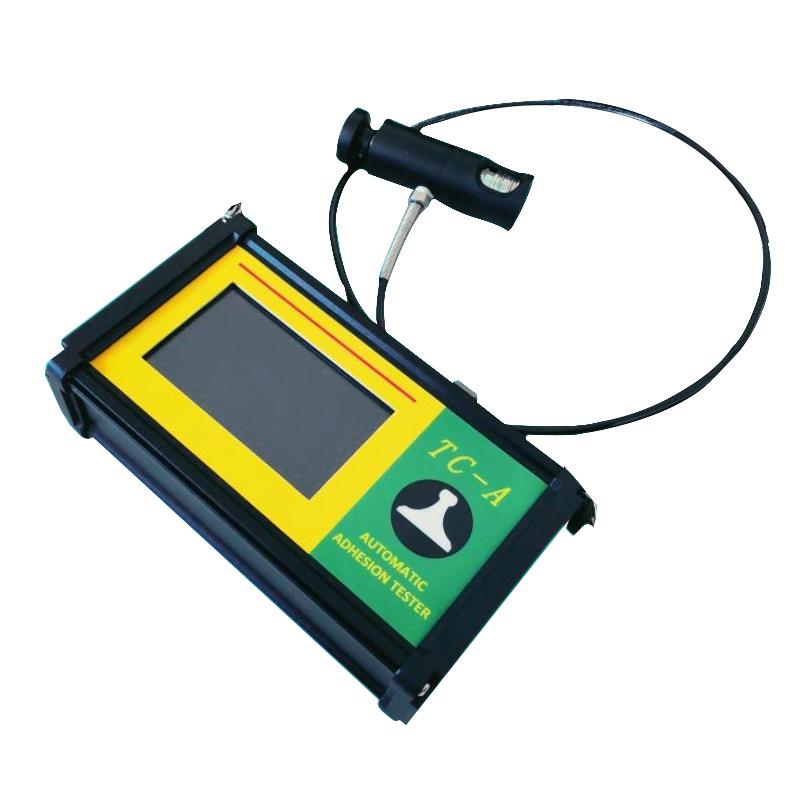

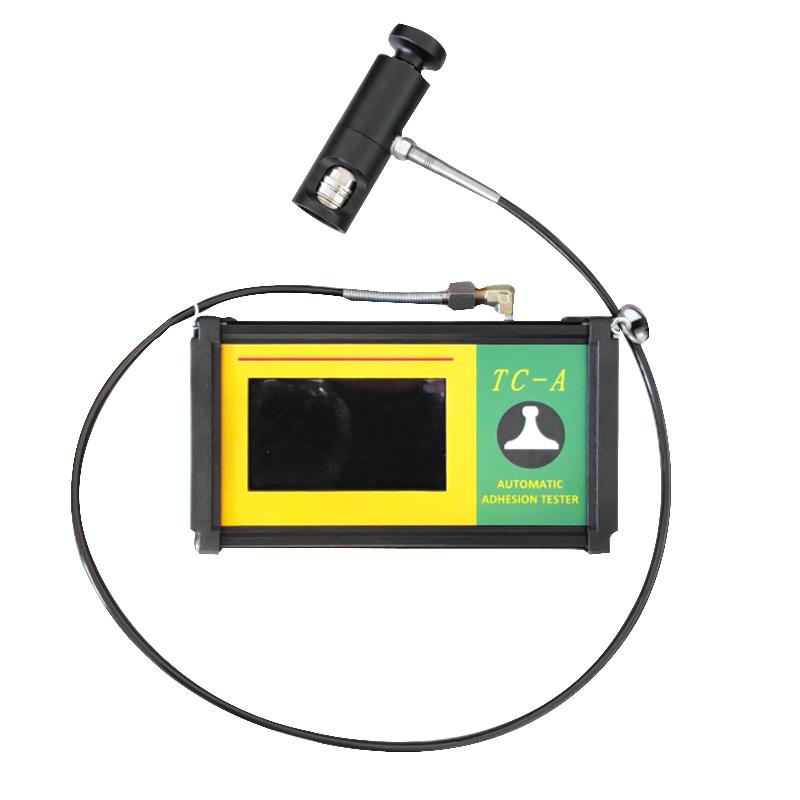

The TC-A type automatic pull-out Adhesion Tester can measure the adhesion of metal, concrete and Miscellaneous coatings. The instrument uses a hydraulic system to remove a certain diameter coating on the surface of the tested substrate to measure the adhesion of coatings. The multi-functional touch LCD screen of the tester shows the detection process of adhesion, in MPa or kN or Psi. The product is designed and manufactured according to international and Chinese relevant standards, with stable performance.
Features
1.1280 * 720 high definition IPS touch display
2. Automatic conversion result, spindle size 50mm
3. Electric loading, adjustable rate
4. Three display units of kN/Mpa/Psi
5. The memory card stores data, and the data can be viewed online by the computer
6. Bluetooth printer can print test data (optional)
7. Drawing force value - Linear dispersion display
8. Large-capacity memory card, capable of storing 100,000 pieces of data
9. Load setting, no need to destroy the detection surface after passing the test
10. Data is automatically stored, the fastest 0.2S to store 1 data
11. Adjustable screen luminance
12. Automatic shutdown can be set
13. Chinese and English display switching
14. Engineering Plastic Encasement Box, Rainproof, Dustproof, Anti-impact
Principle
The working principle of the instrument is to use the hydraulic system to make a certain diameter coating on the surface of the tested substrate to measure coating adhesion, and the multi-function touch LCD screen of the tester displays the detection process of adhesion, which is displayed in MPa or kN or Psi.
Standards
ISO 4624 "Paints and varnishes-Pull-off test for adhesion", ASTM D 4541 "Standard Test Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers", ASTM D7234 "Standard Test Method for Pull-Off Adhesion Strength of Coatings on Concrete Using Portable Pull-Off Adhesion Testers", GB/T 5210-2006 "Paints and varnish Pull-off adhesion test", TB-T2965-2011 "Technical conditions for waterproof layer of railway concrete bridge deck"
