Overview

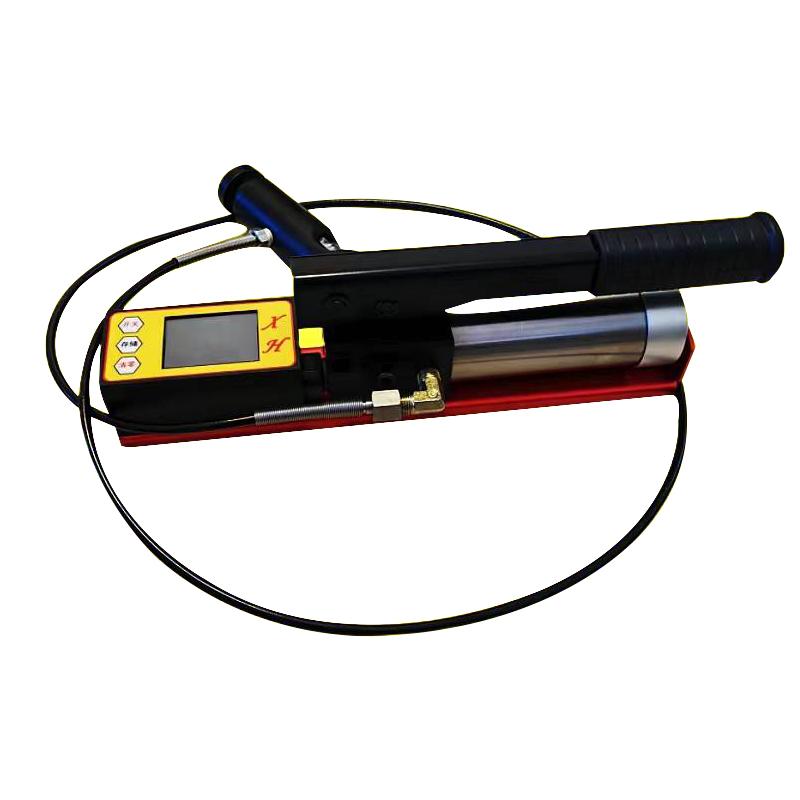

The TC-M type pull-out Adhesion Tester can measure the adhesion of metal, concrete and Miscellaneous coatings. The instrument uses a hydraulic system to remove a certain diameter coating on the surface of the tested substrate to measure the adhesion of coatings. The multi-functional touch LCD screen of the tester shows the detection process of adhesion, which is displayed in MPa or kN. The product is designed and manufactured according to international and Chinese relevant standards, with stable performance.
Features
1.240 * 320 color touch screen
2. Automatic conversion result, spindle size 20mm
3. Automatic storage of the detection process
4.KN/Mpa two display units
5. The memory card stores data, and the data can be viewed online by the computer
6. Drawing strength value - Linear dispersion display
7. Large-capacity memory card, capable of storing 10,000 pieces of data
8. Data is automatically stored, 0.5S stores 1 data
9. Adjustable screen luminance
10. Automatic shutdown can be set
11. Chinese and English display switching
12. Engineering Plastic Encasement Box, Rainproof, Dustproof, Anti-impact
Principle
The working principle of the instrument is to use the hydraulic system to make a certain diameter coating on the surface of the tested substrate to measure coating adhesion, and the multi-function touch LCD screen of the tester shows the detection process of adhesion, which is displayed in MPa or kN.
Standards
ISO 4624 "Paints and varnishes-Pull-off test for adhesion", ASTM D 4541 "Standard Test Method for Pull-Off Strength of Coatings Using Portable Adhesion Testers", ASTM D7234 "Standard Test Method for Pull-Off Adhesion Strength of Coatings on Concrete Using Portable Pull-Off Adhesion Testers", GB/T 5210-2006 "Paints and varnish Pull-off adhesion test", TB-T2965-2011 "Technical conditions for waterproof layer of railway concrete bridge deck"
