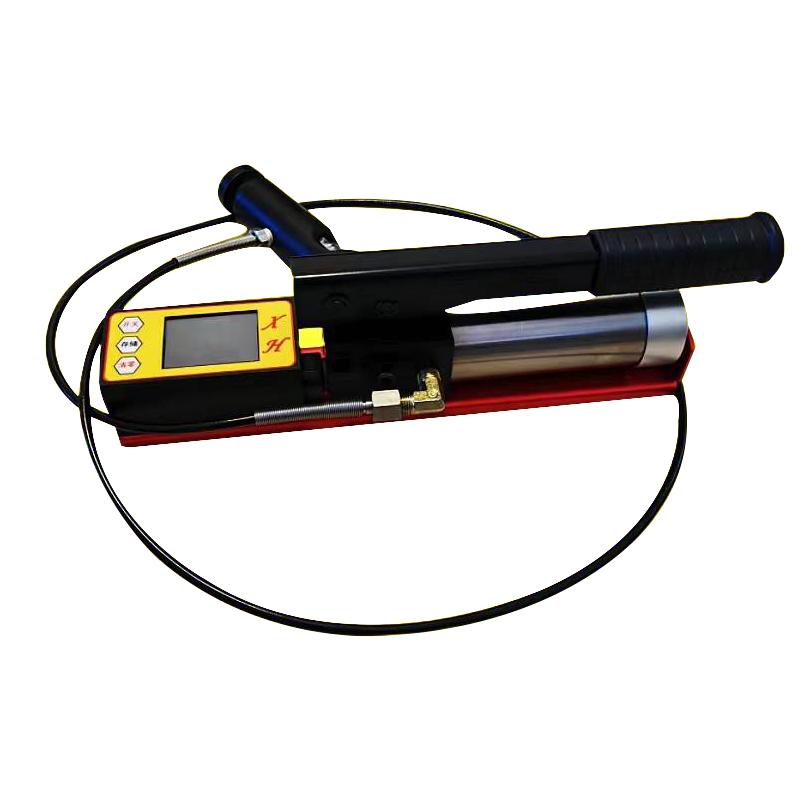

Tiandi Spark TC-M50 Touch Screen Adhesion Tester 50mm Spindle Automatic Storage

Name: Tiandi Spark TC-M50 Touch Screen Adhesion Tester 50mm Spindle Automatic Storage
Brand: Tiandi Spark
SKU: NB043976
Price: 1566.0 USD
Availability: InStock

$ 1566.00Ex works

Using 50mm spindle diaMeter, Measurement range 0-5.09 MPa, error ≤ +/- 1%, with automatic storage of 10000 data function, can display drawing strength-time Linear dispersion.

Model

Get Quote

Category : Pull-Off Adhesion Tester

Brand : Tiandi Spark

SKU : NB043976

Service :The delivery and service By NBCLab.Com

Overview

The TC-M type pull-out Adhesion Tester can measure the adhesion of metal, concrete and Miscellaneous coatings. The instrument uses a hydraulic system to remove a certain diameter coating on the surface of the tested substrate to measure the adhesion of coatings. The multi-functional touch LCD screen of the tester shows the detection process of adhesion, which is displayed in MPa or kN. The product is designed and manufactured according to international and Chinese relevant standards, with stable performance.

Features

1.240 * 320 color touch screen 2. Automatic conversion result, spindle size 50mm 3. Automatic storage of the detection process 4.KN/Mpa two display units 5. The memory card stores data, and the data can be viewed online by the computer 6. Drawing strength value - Linear dispersion display 7. Large-capacity memory card, capable of storing 10,000 pieces of data 8. Data is automatically stored, 0.5S stores 1 data 9. Adjustable screen luminance 10. Automatic shutdown can be set 11. Chinese and English display switching 12. Engineering Plastic Encasement Box, Rainproof, Dustproof, Anti-impact

Principle

The working principle of the instrument is to use the hydraulic system to make the coating of a certain diameter on the surface of the tested substrate to measure the adhesion of the coating.

Standards

ISO 4624、ASTM D 4541、ASTM D7234、GB/T 5210-2006、TB-T2965-2011

Measurement Range
0-5.09 MPa
Spindle diameter
50mm
Display resolution
0.001 MPa/0.001 kN
piston stroke
10mm
Indication Error
≤ +/- 1% (full scale)
Host weight
2.8 Kg
display screen
240 * 320 color touch screen
Display unit
kN/Mpa

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
