Overview

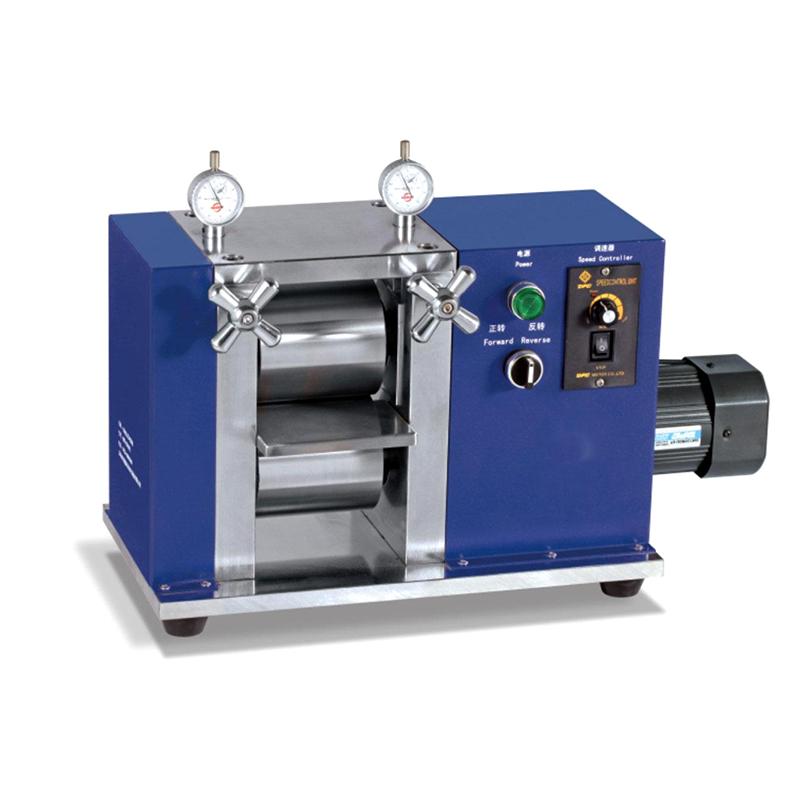

Roller machine is a kind of Machinery for processing, forming and pressing various materials, usually composed of two or more rollers. GRS-DG100L vertical roller machine is mainly suitable for reducing and increasing the density of battery materials and clean energy materials lithium battery plates in the laboratory. It adopts gear transmission to achieve roller pressing, and the rolling Film thickness can be adjusted, which is convenient to use.
Features
1. High Hardness Roll, Hard Chrome Plated Surface, Hardness up to HRC62 and rust-proof.
2. Adopt oblique block to adjust the tablet gap, with good self-cumbersome and high adjustment accuracy.
3. High rolling accuracy, roller cylindricity ≤ +/- 2um.
4. Vertical design, convenient for feeding and rolling of sheet and strip materials.
5. Use gear meshing to rotate to achieve roller pressing.
6. Film thickness and speed can be adjusted, and the appearance is exquisite and beautiful.
7. Electric rolling, forming automation, can be reversed.
8. Small size, easy to operate, flexible and fast to use.
Principle
This machine adopts gear transmission to achieve roller pressing, and the rolling Film thickness can be adjusted.
Applications
Laboratory battery materials, clean energy materials, lithium battery plates
Steps
1. Adjust the tableting gap and Film thickness.
2. Set the tableting speed.
3. Put the strip material into the vertical feeding port.
4. Start the electric operation, and you can choose to reverse.
Notice
Make sure the voltage is AC220V/50Hz.
• The width of the tablet should not exceed 100mm.
• Film thickness adjustment range 0~ 2mm.
• The maximum roller pressure is 4t.
• The feed speed is controlled at 0~ 40mm/s.
