Overview

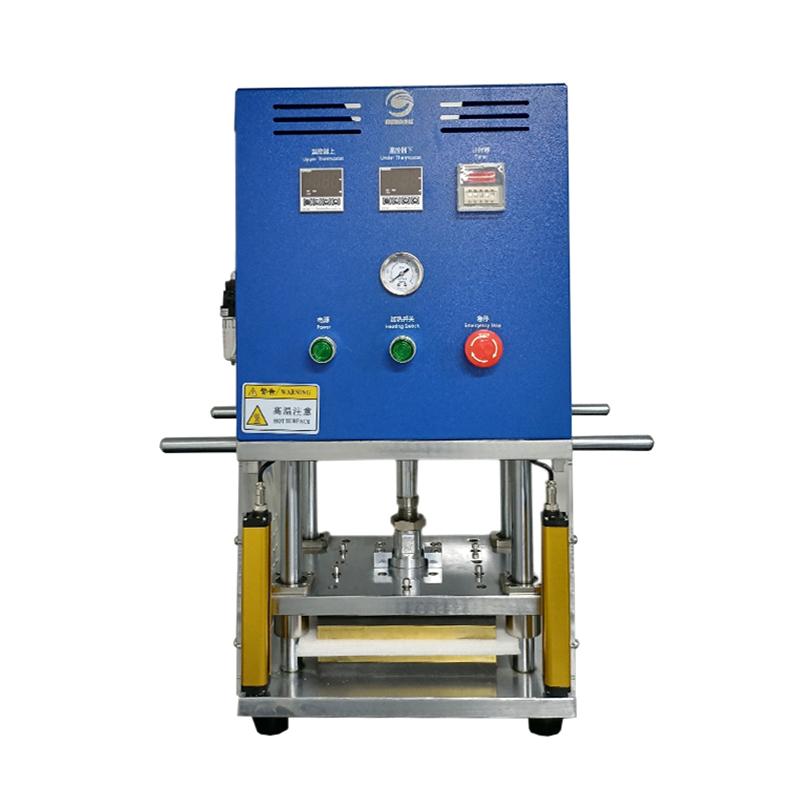

GRS-RY200 hot press shaping machine is a GERUISI brand product, which is mainly suitable for hot flat pressing of battery cells after winding, which is convenient for entering the shell. The equipment makes the battery cells shaped by pressing and heating to achieve the same film thickness of the battery cells, reduce the resilience of the battery cells, reduce the short circuit rate of the installed core and ensure the conformity of the film thickness of the finished battery cells.
Features
1. The temperature of the work surface can be adjusted by the thermostat, the LCD display visually displays the current value and the set value, the temperature control accuracy is high, the operation is convenient
2. The pressure of the upper and lower working surfaces can be adjusted by the pressure regulating valve to meet the requirements of different process parameters
3. Adopt a single station structure, with high parallelism between the upper and lower table panels, and a stable and reliable structure
4. The work surface is made of high-quality materials, which has good heat transfer effect, saves power consumption, and improves work efficiency
5. Equipped with light curtain protection device, safe to use
6. With abnormal temperature alarm function
7. Adjustable hot pressing time, temperature and pressure
8. Adopt automatic and semi-automatic control for easy operation
9. Dimensions are small, saving space
10. Appearance is exquisite, sheet metal adopts three-dimensional geometric design, simple and beautiful
11. Electrical control can be used for automatic operation during operation, and manual function can be used during debugging
Principle
This equipment uses a thermostat and Thermocouple to control the heat transfer of the heating tube to the pressure template to reach the set temperature, and then presses the upper and lower templates on the battery cells under the action of the cylinder. At the same time, the heat of the heating templates is transferred to the battery cells, so that the battery cells can be formed stably under a certain temperature and pressure.
Applications
After the battery is wound, it is hot and flat.
