Overview

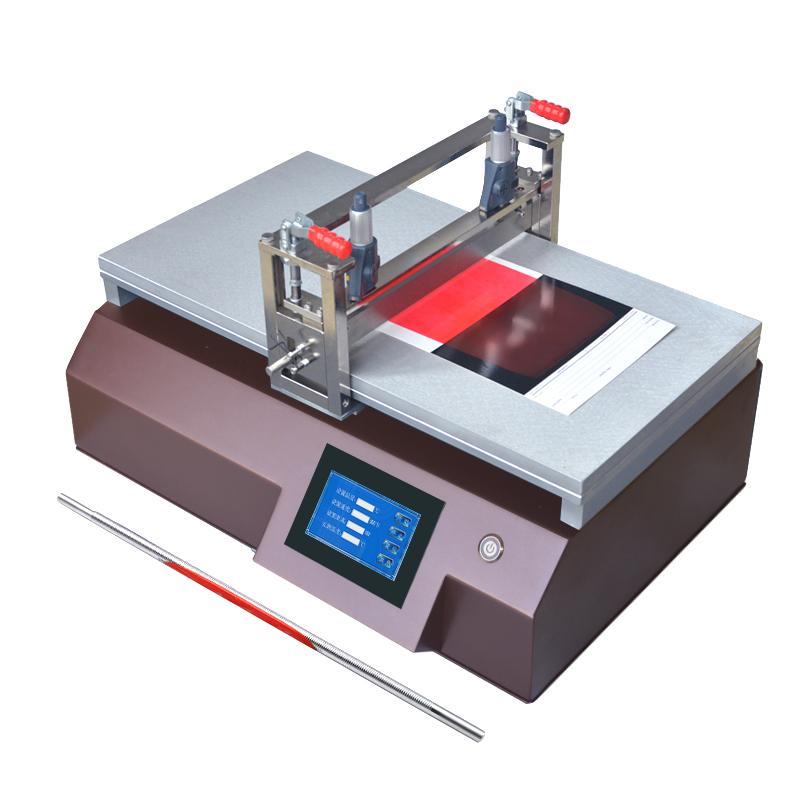

TBJ-X3-DJ10 Multifunctional Automatic Film Applicator provides vacuum adsorption, wire rod, scraper and heating four-in-one functions. The design Spreader area is 400 * 600mm and supports customization. The scraper is made of 316 material, which is suitable for corrosion-resistant material film sample preparation. Temperature range can reach room temperature to 180 ℃. The series adopts imported accessories and is affordable. It is favored by international multinational R & D institutions and well-known universities and scientific research institutions at home and abroad. Through precise control of speed and stable pressure, it ensures the uniformity and Stability of Spreader and gluing.
Features
1. Four-in-one function: vacuum adsorption, wire rod, scraper and heating; 2. Spreader area of 400 * 600mm, support customization; 3. The scraper is made of 316 material, corrosion resistance; 4. Temperature control range from room temperature to 180 ° C; 5. Imported accessories, affordable; 6. Precise control of speed and stable pressure to ensure Spreader uniformity and Stability; 7. Optional accessories are rich, such as leakage tank, substrate fixing fixture, etc.; 8. Customizable functions include jet system device, UV solid inclusion device, automatic inking system.
Principle
Fix the substrate by vacuum adsorption, use a scraper or wire rod for Spreader, and control the temperature in combination with the heating function to achieve uniform film. Precise control of Spreader speed and pressure ensures stable Spreader effect.
Applications
R & D institutions, universities, scientific research institutions
Steps
1. Prepare the substrate and fix it on the Spreader table; 2. Set the Spreader parameters such as speed and temperature; 3. Start the vacuum adsorption function; 4. Select the scraper or wire rod for Spreader; 5. Monitor the Spreader process to ensure uniformity; 6. Turn off the device after completing the Spreader.
Notice
• Check the integrity of the power supply and accessories of the equipment before use; • Ensure that the Spreader parameters are set correctly to avoid over-range operation; • Regularly clean the scraper and Spreader table to prevent material residue; • Pay attention to temperature control when heating to prevent overheating; • Customized functions need to be operated according to the instructions; • Vacuumpump and adsorption system need regular maintenance.
