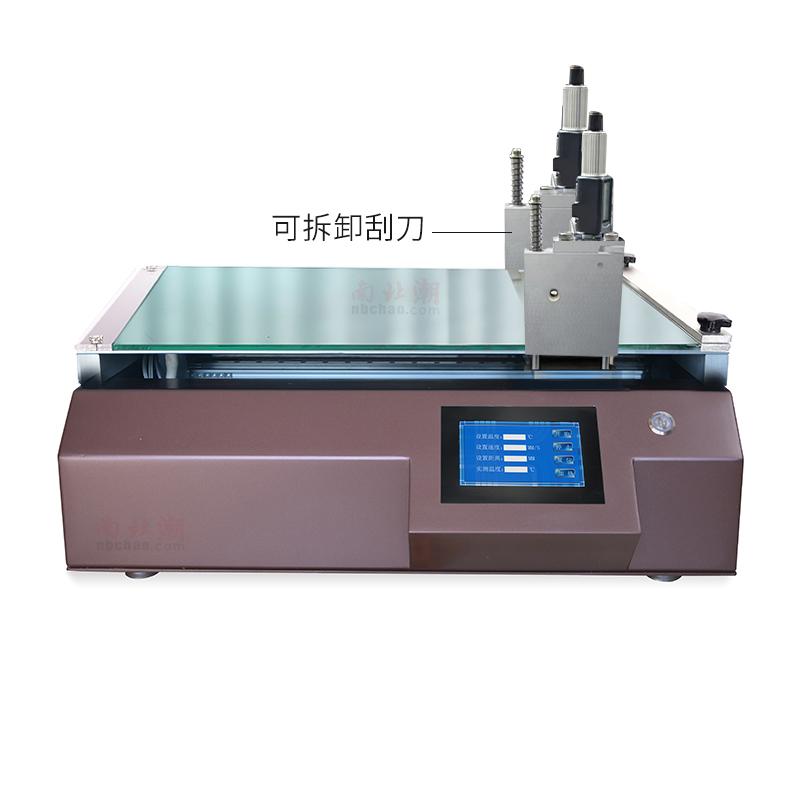

China TBJ-B1-DJ4 Automatic Film Applicator Detachable Scraper Lab Film Applicator

Name: China TBJ-B1-DJ4 Automatic Film Applicator Detachable Scraper Lab Film Applicator
Brand: zy
SKU: NB044101
Price: 2304.0 USD
Availability: InStock

$ 2304.00Ex works

Adopt removable scraper for easy cleaning and replacement, with bracket design to improve running Stability; Spreader accuracy of +/- 0.003mm, Film thickness range of 0~ 10mm adjustable, effective Spreader area of 400 * 300mm, through stepless speed control to ensure uniform Spreader.

Model

TBJ-B1-DJ4
TBJ-B1

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB044101

Service :The delivery and service By NBCLab.Com

Overview

TBJ-B1-DJ4 Automatic Film Applicator is a small Spreader equipment in China laboratory. It comes standard with a detachable scraper, which is easy to clean and replace. The scraper with a bracket ensures the stable operation of the Spreader and the uniform film. The equipment adopts imported accessories and is cheap. It is widely used in R & D institutions, universities and scientific research institutions of multinational enterprises. It ensures the uniformity and smoothness of Spreader coating through control speed and stable pressure, and improves film reproducibility.

Features

1. Detachable scraper design, easy to clean and replace; 2. With bracket scraper, stable operation, uniform film; 3. Imported accessories, cheap; 4. Stepless speed control, Spreader rate range 5~ 200mm/s; 5. High scraper Spreader accuracy, up to +/- 0.003mm; 6. Spreader Film thickness range 0~ 10mm adjustable; 7. Effective Spreader area is large, up to 400 * 300mm; 8. Optional accessories are rich, support customized functions.

Principle

Automatic Film Applicator Spreader produces accurate wet-film on the substrate by controlling the speed of the Spreader and the steady pressure applied to the scraper. The scraper Spreader method ensures uniform coating, avoids the inconsistency problem of manual Spreader, and improves the reproducibility of the film.

Applications

Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Spreader accuracy
±0.003mm
Spreader Film thickness Range
0~ 10Mm adjustable
Spreader rate
5~ 200mm/s (< 5mm/s can be customized)
Coating Size
300 * 400Mm (Spreader length 0-400mm can be set arbitrarily)
speed control
Stepless speed regulation, stepless speed change
scraper length
400mm
Host power supply
220V 50HZ
Dimension
626*410*520mm
weight
Net weight 45kg
Spreader material
Glass
optional accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and weight (for applications with uneven film thickness of Spreader substrate), film width control baffle
customizable function
Jet system device, UV solid inclusion device, automatic inking system
Scraper Type
Detachable scraper
Scraper material
304 stainless steel
Spreader mode
Spreader

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
