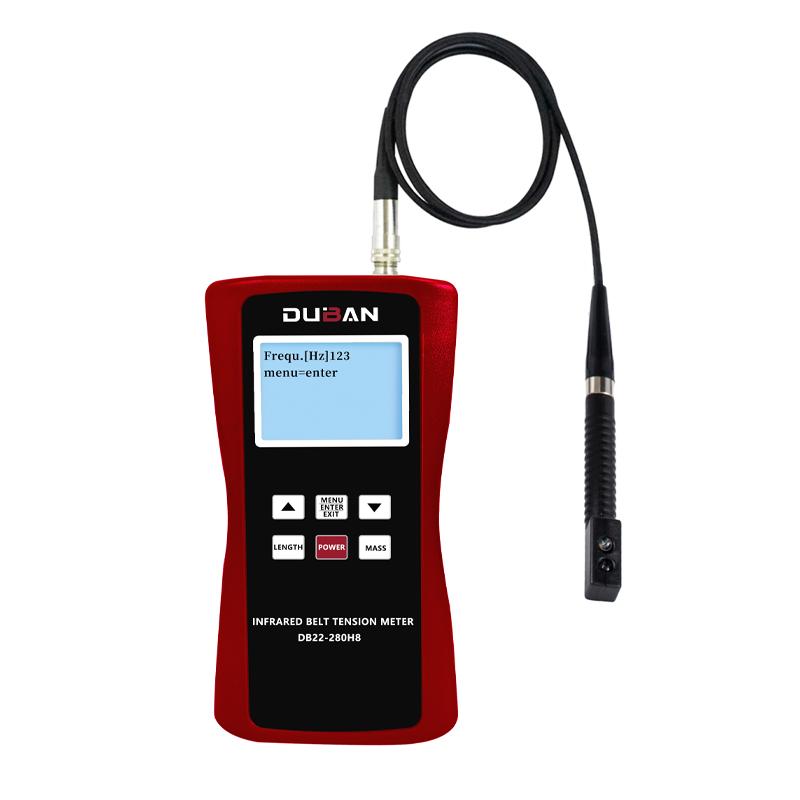

DUBAN DB22-280H8 Infrared Belt TensioMeter, Laser Sensor split probe

Name: DUBAN DB22-280H8 Infrared Belt TensioMeter, Laser Sensor split probe
Brand: Duban
SKU: NB044143
Price: 893.0 USD
Availability: InStock

$ 893.00Ex works

Laser Sensor is used to directly measure the natural vibration frequency of the belt. Measurement range is 10-800Hz. The split probe size is 124 * 21 * 12mm and can penetrate into a small space of 66mm. It supports metric and imperial unit switching.

Model

DB22-280H8

Get Quote

Category : Tensiometer

Brand : Duban

SKU : NB044143

Service :The delivery and service By NBCLab.Com

Overview

The DUBAN DB22-280H8 infrared belt tension meter is a professional measurement device that quickly measures the belt tension of motors and other machinery through laser emission and reception technology. The instrument can measure the natural vibration frequency of the belt, and calculate the belt tension value accurately by combining the input belt mass and free belt length.

Features

1. Laser Sensor, direct measurement, more convenient than mechanical Sensor 2. The split Sensor is small in size and suitable for measurement in tight spaces 3. Two different units of metric or imperial can be used to display readings 4. With automatic shutdown function 5. Bring your own probe

Principle

The tension meter measures the natural vibration frequency of the belt through the emission and reception of the laser, and then calculates the tension value of the belt by combining the input belt mass and the free belt length.

Applications

Motor, machinery

Steps

1. Place the split probe in the belt measurement position and keep the optical path measurement distance 3~ 20mm 2. Enter belt mass and free belt length parameters 3. Instrument automatic measurement of belt natural vibration frequency 4. Read the tension value on the LCD display, you can choose the metric or imperial unit display

Notice

• Operating Temperature range is + 10~ 50 ° C, beyond this range may affect Measurement accuracy • Transport Temperature range -5~ 70 ° C, avoid storage or transportation in extreme temperatures • The optical path measurement distance should be kept within the range of 3~ 20mm • The split probe can penetrate to a depth of about 66mm, please pay attention to space limitations when using it • Powered by 4 1.5V AAA AA AA batteries, check the battery power regularly • The instrument has an automatic shutdown function to save power

Measurement Range
10~800 Hz
input Range
Free section belt length Max 99.99 m; belt mass Max 9.999 kg/m
Digital sampling error
<1%
display error
±1 Hz
Total error
<5%
Temperature Range
+10~50℃
Temperature Range
－5~70℃
show
LCD
Physical unit of measurement
Metric: m, kg/m, N; Imperial: inch, Ibs/foot, Ibf
Optical path measurement distance
3~20mm
Split probe can penetrate deep
Approx. 66mm
power supply
4X1.5v AAA AA batteries
Size
Host: 140x77x32mm; Sensor: 124x21x12mm
Net weight
130 g (without battery)
