Overview

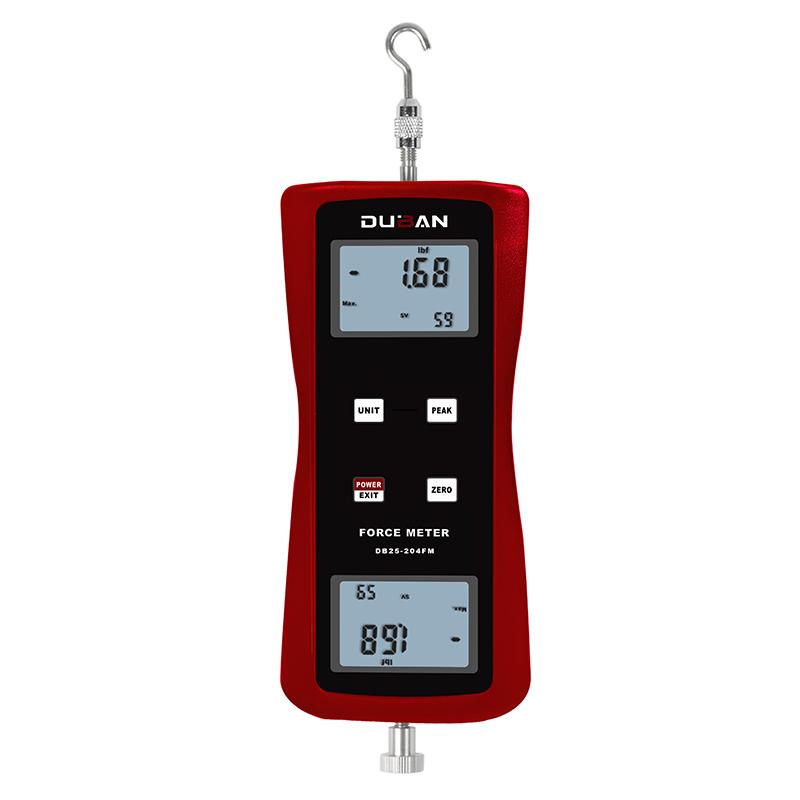

DUBAN DB25-204FM-20N Integrated Force Gauge is a small, simple and multi-functional High Accuracy thrust and tension testing instrument, which is widely used in Electronics, Construction Hardware, Light Industry Spinning & Weaving, Auto Parts, Lighters and other ignition devices, fire fighting equipment, pen making, lock making, fishing gear, chemical industry, power machinery, scientific research institutions and other industries. Push-pull load, insertion force test, Destructiveness test, etc.
Features
1. High Accuracy and high resolution, digital display ignores poor
2. Four measurement units of N (newton), kg (kilogram), lb (pound), g (gram) are available and converted to each other
3. Peak hold function, keep peak display until manually cleared
4. It can be set to shut down automatically without operation for 10 minutes, or it can be shut down manually.
5. Can be powered by alkaline battery or 5V DC power supply
Principle
Sensor measurement of thrust and tensile loads converts mechanical signals into electrical signals, and displays measurement results in digital form after processing.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Steps
1. Install the battery or connect the 5V DC power supply
2. Select the desired Measurement unit (N, kg, lb, g)
3. Perform a thrust or pull test
4. Read peak or instantaneous value display
5. Manually clear or wait for automatic shutdown
Notice
• The allowable load does not exceed 150% F.s, and there is a beep alarm when it exceeds 110% F.s
• Operating temperature range 0~ 40 ℃
• relative humidity should be less than 80%
• The working environment should be free of seismic sources and corrosive media
• Avoid over-range use to maintain accuracy
