Overview

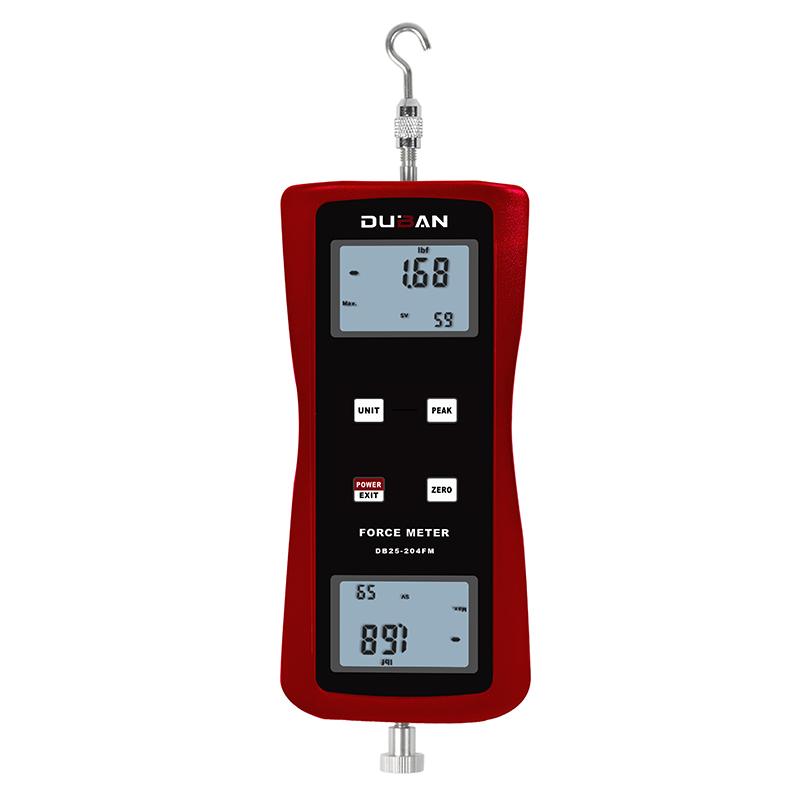

DUBAN DB25-204FM-200N Integrated Force Gauge is a small, simple, multi-functional, High Accuracy Thrust and Tensile Testing Instrument. It uses digital display mode and is widely used in push-pull load, plug-in force testing and Destructiveness testing in many industries.
Features
1. High Accuracy and high resolution, digital display ignores poor.
2. N (newton), kg (kilogram), lb (pound), g (gram) four measurement units are available and converted to each other.
3. Peak hold function, keep peak display until manually cleared.
4. It can be set to shut down automatically or manually for 10 minutes without operation.
It can be powered by alkaline battery or 5V DC power supply.
Principle
The Force Gauge detects thrust or pull through the Sensor, converts physical signals into electrical signals, and displays peak or instantaneous values on a four-digit large LCD screen after processing. It supports forward and reverse dual displays and has an automatic shutdown function to save energy.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Steps
1. Install the battery or connect the 5V DC power supply.
2. Select the required measurement unit (N, kg, lb, g).
3. Perform a thrust or pull test and observe the display readings.
4. When using the peak hold function, manually clear to reset.
5. After the test is completed, you can manually shut down or wait for the automatic shutdown.
Notice
• The allowable load does not exceed 150% F.s. There will be a beep alarm when it exceeds 110% F.s.
• Operating temperature range is 0~ 40 ℃, relative humidity < 80%.
• Ensure that there are no sources and corrosive media around the working environment.
• Avoid overloading to prevent damage to the instrument.
