Overview

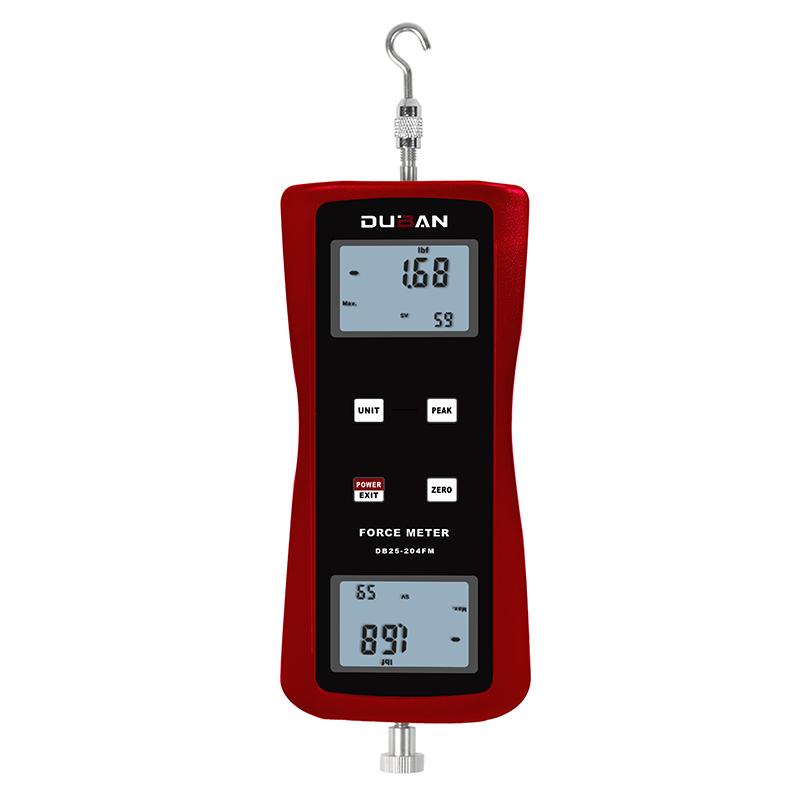

DUBAN DB25-204FM-1KN Integrated Force Gauge is a small, simple and multi-functional High Accuracy Thrust and Tension Test Instrument, which is widely used in push-pull load, plug-in force test and Destructiveness test in many industries.
Features
1. High Accuracy and high resolution, digital display ignores poor.
2. N (newton), kg (kilogram), lb (pound), g (gram) four measurement units are available for selection and conversion.
3. Peak hold function, keep peak display until manually cleared.
4. It can be set to shut down automatically or manually for 10 minutes without operation.
5. It can be powered by alkaline battery or connected to 5V DC power supply.
Principle
The Force Gauge converts physical signals into digital signals through Sensor measurement of thrust or pull, and displays peak or instantaneous values on a large four-digit LCD screen, supports forward and reverse dual-screen display, and has automatic or manual shutdown function.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Steps
1. Install the battery or connect the 5V DC power supply.
2. Select the required measurement unit (N, kg, lb, g).
3. Perform a thrust or pull test and observe the display readings.
4. Record the MAX Maximum with Peak Hold and clear it manually.
5. After the test is completed, you can manually shut down or wait for the automatic shutdown.
Notice
• The allowable load does not exceed 150% F.s. There will be a beep alarm when it exceeds 110% F.s.
• Operating temperature range is 0~ 40 ℃.
• The relative humidity should be less than 80%.
• The working environment requires no seismic source and corrosive medium.
• Avoid overloading to prevent damage to the instrument.
