Overview

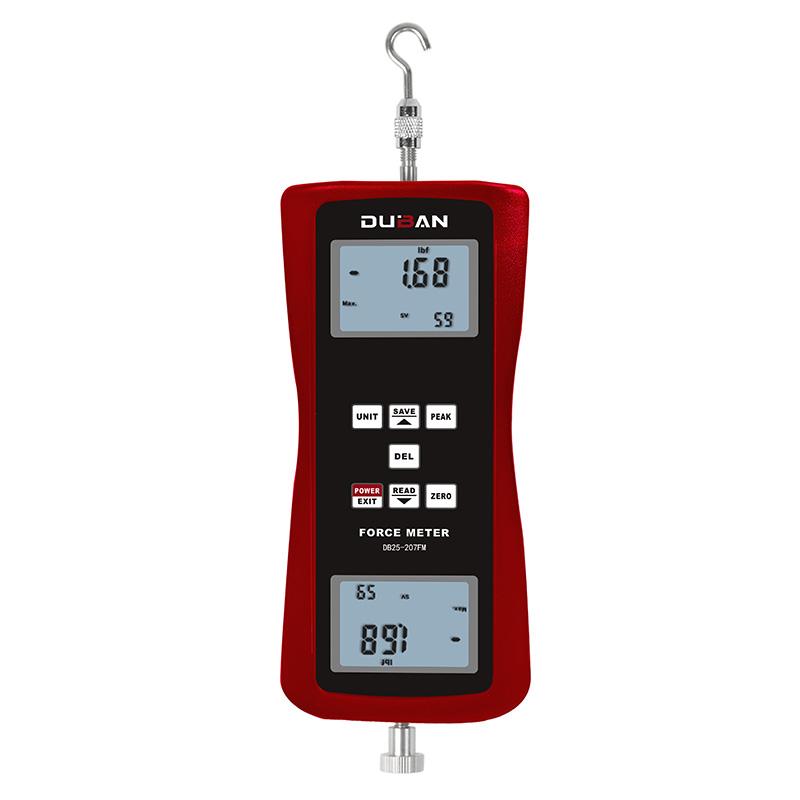

DUBAN DB25-207FM-20N Integrated Force Gauge is a small, simple and multi-functional High Accuracy thrust and tension testing instrument. It is widely used in Electronics, Construction Hardware, Light Industry Spinning & Weaving, Auto Parts, Lighters and other ignition devices, fire fighting equipment, pen making, lock making, fishing gear, chemical industry, power machinery, scientific research institutions and other industries. Push-pull load, insertion force test, Destructiveness test, etc.
Features
1. High Accuracy and high resolution, digital display ignores poor.
2. N (newton), kg (kilogram), lb (pound), g (gram) four measurement units are available for selection and conversion.
3. Peak hold function, keep peak display until manually cleared.
4. Data storage function, capable of storing 99 test values.
5. Data output function, data can be input into the computer through data cable or Bluetooth for various analysis.
6. Green and environmentally friendly, it can be set to automatically shut down without operation for 10 minutes; it can also be shut down manually.
7. Can use alkaline battery power supply; can also be connected to 6V DC power supply.
Principle
The Force Gauge converts mechanical signals into electrical signals through Sensor measurement of thrust or tensile loads, and displays measurements digitally on a large four-digit LCD screen after internal processing. It supports peak and instantaneous value measurement, and has data storage and output functions.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Steps
1. Install the battery or connect the 6V DC power supply.
2. Select the desired Measurement unit (N, kg, lb, g).
3. Perform a thrust or tension test, and the instrument automatically displays the instantaneous value or peak value.
4. When using the peak hold function, manually clear to reset.
5. Data can be output to the computer via USB or Bluetooth.
6. After the test is completed, manually shut down or wait 10 minutes for automatic shutdown.
Notice
• The allowable load does not exceed 150% F.s. There will be a beep alarm when it exceeds 110% F.s.
• Operating temperature range is 0~ 40 ℃.
• The relative humidity should be less than 80%.
• The working environment requires no seismic source and corrosive medium around.
