Overview

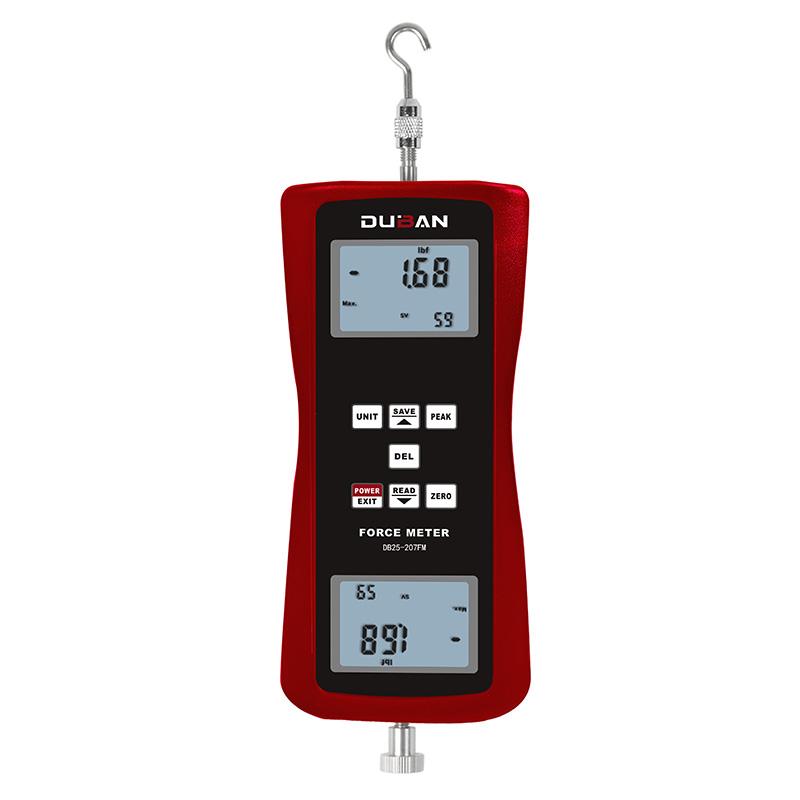

DUBAN DB25-207FM-500N Integrated Force Gauge is a small, simple and multi-functional High Accuracy thrust and tensile testing instrument, which is widely used in Electronics, Construction Hardware, Light Industry Spinning & Weaving, Auto Parts, Lighters and other ignition devices, fire fighting equipment, pen making, lock making, fishing gear, chemical industry, power machinery, scientific research institutions and other industries. Push-pull load, insertion force test, Destructiveness test, etc.
Features
1. High Accuracy and high resolution, digital display ignores poor.
2. N (newton), kg (kilogram), lb (pound), g (gram) four measurement units are available for selection and conversion.
3. Peak hold function, keep peak display until manually cleared.
4. Data storage function, capable of storing 99 test values.
5. Data output function, data can be input into the computer through data cable or Bluetooth for various analysis.
6. Green and environmentally friendly, it can be set to automatically shut down without operation for 10 minutes; it can also be shut down manually.
7. Can use alkaline battery power supply; can also be connected to 6V DC power supply.
Principle
The Force Gauge converts physical signals into digital signals through Sensor measurement of thrust or tensile loads, displays instantaneous or peak values in real time on a large four-digit LCD, and supports data storage and output functions.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Standards
Precision 0.2, accuracy +/- 0.2% FS (range) +/- 1 digital peak
Steps
1. Install the battery or connect the 6V DC power supply.
2. Select the required measurement unit (N, kg, lb, g).
3. Perform a thrust or pull test and observe the display readings.
4. Use the peak hold function to record the maximum load.
5. Store test data or output via USB/Bluetooth.
6. Manual shutdown or wait 10 minutes for automatic shutdown.
Notice
• The allowable load does not exceed 150% F.s. There will be a beep alarm when it exceeds 110% F.s.
• Operating temperature range is 0~ 40 ℃.
• The relative humidity should be less than 80%.
• The working environment requires no seismic source and corrosive medium around.
