Overview

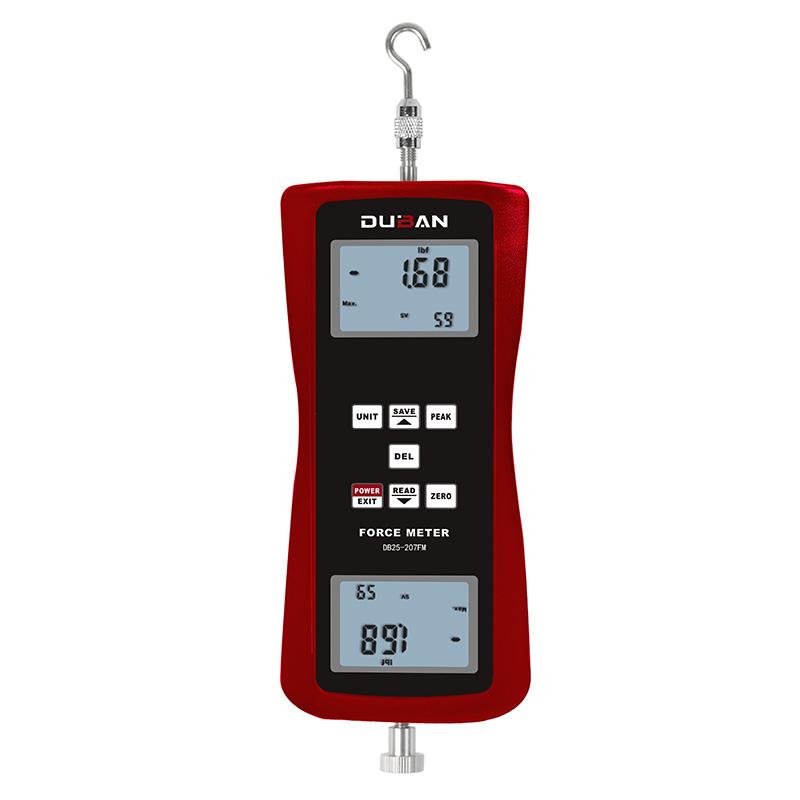

DUBAN DB25-207FM-1KN Integrated Force Gauge is a small, simple and multi-functional High Accuracy thrust and tensile testing instrument, which is widely used in Electronics, Construction Hardware, Light Industry Spinning & Weaving, Auto Parts, Lighters and other ignition devices, fire fighting equipment, pen making, lock making, fishing gear, chemical industry, power machinery, scientific research institutions and other industries. Push-pull load, insertion force test, Destructiveness test, etc.
Features
1. High Accuracy and high resolution, digital display ignores poor.
2. N (newton), kg (kilogram), lb (pound), g (gram) four measurement units are available for selection and conversion.
3. Peak hold function, keep peak display until manually cleared.
4. Data storage function, capable of storing 99 test values.
5. Data output function, data can be input into the computer through data cable or Bluetooth for various analysis.
6. Green and environmentally friendly, it can be set to shut down automatically or manually for 10 minutes without operation.
7. It can be powered by alkaline battery or connected to 6V DC power supply.
Principle
The Force Gauge converts physical signals into digital signals through Sensor measurement of push-pull loads, displays peak or instantaneous values on a large four-digit LCD, supports data storage and output, and enables High Accuracy Testing.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Steps
1. Install the battery or connect the 6V DC power supply.
2. Select Measurement unit (N, kg, lb, g).
3. Perform a push-pull force test and observe the display reading.
4. Use the peak hold function to record the MAX Maximum.
5. Manual reset or automatic shutdown.
6. Output data via USB or Bluetooth.
Notice
• The allowable load does not exceed 150% F.s. There will be a beep alarm when it exceeds 110% F.s.
• Operating temperature range is 0~ 40 ℃.
• The relative humidity should be less than 80%.
• The working environment requires no seismic source and corrosive medium around.
• Avoid overloading to prevent damage to the instrument.
