Overview

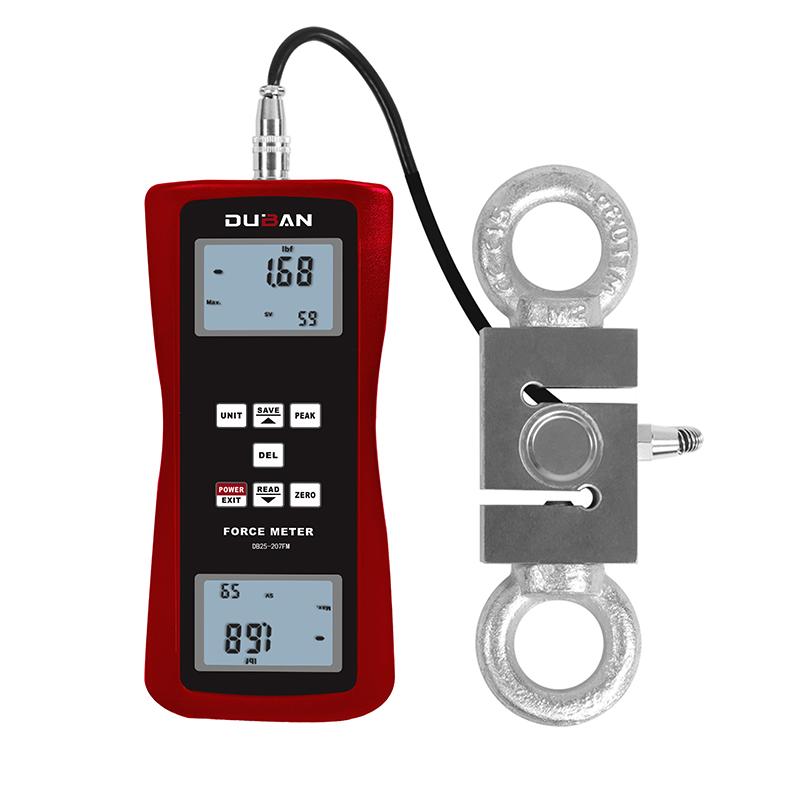

DUBAN DB25-207FM-5KN Split Force Gauge is a small, simple and multi-functional High Accuracy thrust and tensile testing instrument, which is widely used in Electronics, Construction Hardware, Light Industry Spinning & Weaving, Auto Parts, Lighters and other ignition devices, fire fighting equipment, pen making, lock making, fishing gear, chemical industry, power machinery, scientific research institutions and other industries. Push-pull load, insertion force test, Destructiveness test, etc.
Features
1. High Accuracy and high resolution, digital display ignores poor.
2. N (newton), kg (kilogram), lb (pound), g (gram) four measurement units are available for selection and conversion.
3. Peak hold function, keep peak display until manually cleared.
4. Data storage function, capable of storing 99 test values.
5. Data output function, data can be input into the computer through data cable or Bluetooth for various analysis.
6. Green and environmentally friendly, it can be set to automatically shut down without operation for 10 minutes; it can also be shut down manually.
7. Can use alkaline battery power supply; can also be connected to 6V DC power supply.
Principle
The split Force Gauge converts mechanical signals into electrical signals through Sensor measurement of push-pull loads, displays measurement results on a four-digit large LCD screen after internal processing, supports peak and instantaneous value measurement, and realizes data transmission through a data output interface.
Applications
Electronics, Construction Hardware, Light Industry Spinning & weaving, Auto Parts, Lighters and other ignition devices, Fire Equipment, Pen Making, Lock Making, Fishing Tackle, Chemical Industry, Power Machinery, Scientific Research Institutions
Steps
1. Install the battery or connect the 6V DC power supply.
2. Select the required measurement unit (N, kg, lb, g).
3. Carry out the push-pull force test, and the instrument automatically displays the measurement value.
4. Use the peak hold function to record the maximum load.
5. Manually clear or wait for automatic shutdown.
Notice
• The working environment should be free of seismic sources and corrosive media.
• Operating temperature 0~ 40 ℃, relative humidity < 80%.
• Avoid overload use, the allowable load is 150% F.s, and there is a beep alarm when it exceeds 110% F.s.
• Shut down in time after use to save power.
