Overview

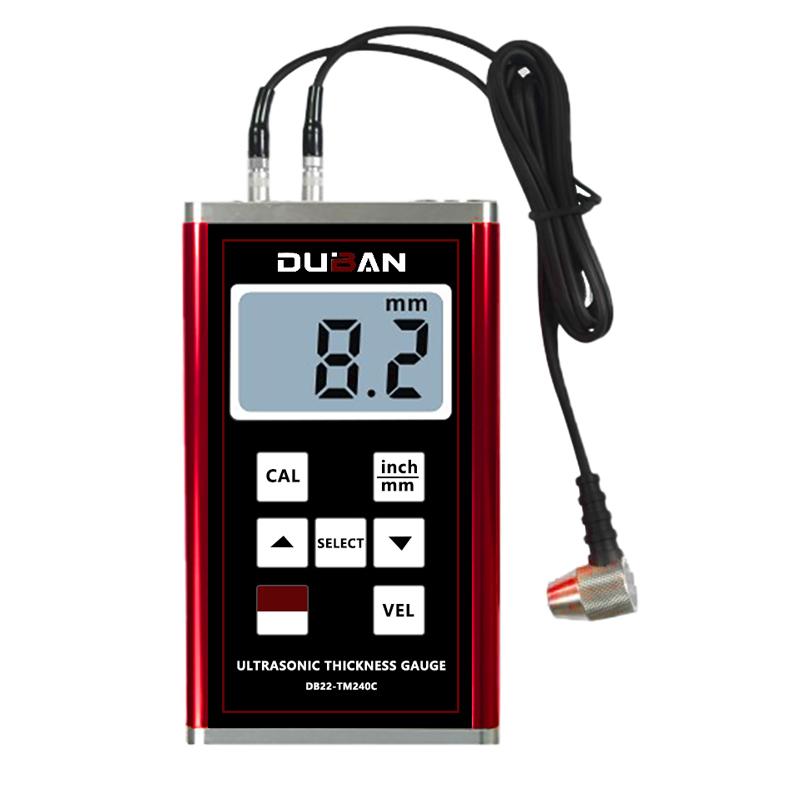

DUBAN DB22-TM240C High Accuracy Ultrasonic Thickness Gauge is a film thickness measurement device for a wide range of industrial applications, capable of accurate measurement of metals, Pottery and porcelain, plastics and other materials. It has a wide Measurement range and a variety of practical functions, suitable for film thickness and corrosion measurement of boilers, pipes, hulls and other components.
Features
1. With strong transmission power and high broadband reception sensitivity, it can adapt to different frequency probes, and can measure severely corroded surfaces, lacquered surfaces and some gray cast iron.
2. Support two-way measurement, known sound speed can be measured Film thickness, known Film thickness can be measured sound speed.
3. Automatically memorize material codes and sound speed values for easy operation.
4. With coupling status prompt function, as well as automatic shutdown and manual shutdown functions.
5. Using USB data cable output, data collection can be carried out with PC.
6. Optional Bluetooth Bluetooth data output.
Principle
Based on the principle of ultrasonic propagation, the instrument measures the film thickness of a material by emitting ultrasonic waves and receiving them back. For materials that can propagate ultrasonic waves, such as metals, Pottery and porcelain, the instrument calculates the round-trip time of sound waves to determine Film thickness or sound speed.
Applications
Petrochemical industry, shipbuilding, automobile manufacturing, power station, machinery manufacturing
Steps
1. Turn on the instrument power.
2. Select the probe and install it.
3. Set the material code or sound velocity value.
4. Couple the probe to the surface under test.
5. Read measurement results.
6. Use USB or Bluetooth to output data (if required).
7. Shut down.
Notice
• Ensure that the working environment temperature is 0~ 40 ° C and the humidity is less than 85% RH.
• Check whether the probe is suitable for the material under test before use.
• When the coupling state is poor, the instrument will prompt that it needs to be re-coupled.
• Insufficient battery power may affect Measurement accuracy, replace in time.
• Avoid operating the instrument in extreme environments or humid conditions.
