Overview

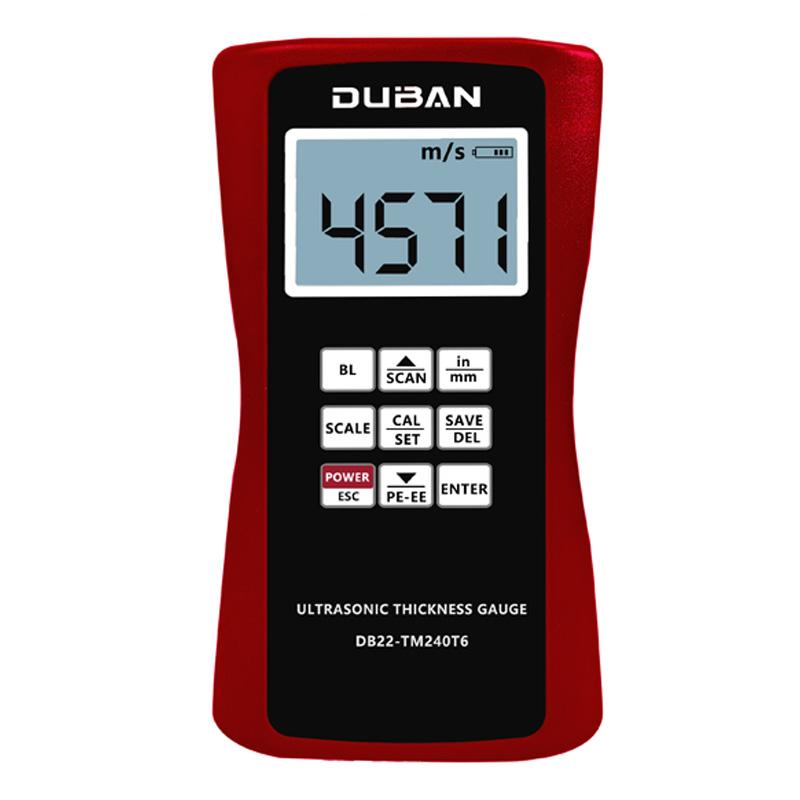

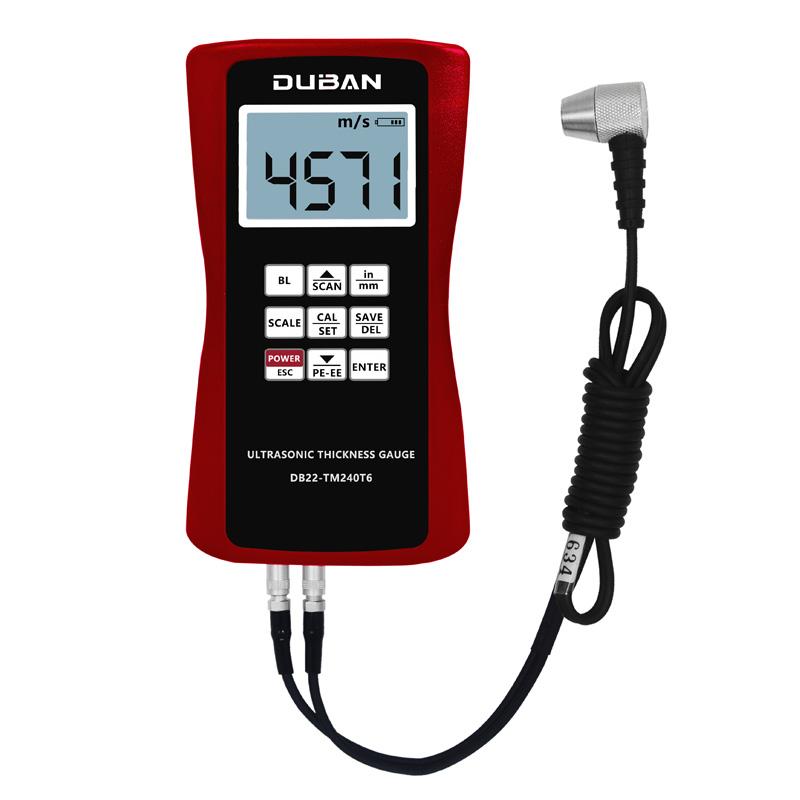

DUBAN DB22-TM240T6 Multi-mode Ultrasonic Thickness Gauge is suitable for film thickness measurement and corrosion measurement of boilers, oil storage tanks, pipes, pipes, slabs, forgings, flanges, hulls, decks, tracks, machined parts, etc. in the petrochemical industry, shipbuilding industry, automobile manufacturing industry, power plants, and machine manufacturing industries. This instrument can be used for thickness measurement of most materials that can transmit ultrasonic waves, such as metal, Pottery and porcelain, plastic, nylon, Glass, etc.
Features
1. Multiple modes: pulse echo mode (for flaw detection and pit detection) and echo echo mode (for paints elimination or Coating thickness measurement).
2. With strong transmission power and high broadband reception sensitivity, it can adapt to probes of different frequencies, and can be measured on severely corroded rough surfaces, lacquered surfaces, and even some gray cast iron.
3. With coupling status prompt function; automatic shutdown, manual shutdown function.
4. Using USB data cable output, data collection with PC.
5. In addition, there are Bluetooth data output options.
Principle
This instrument uses ultrasonic technology for Film thickness measurement and works through pulse echo mode and echo echo mode. Pulse echo mode is used for flaw detection and pit detection, echo echo mode is used for paints elimination or Coating thickness measurement, using the propagation characteristics of ultrasonic waves in the material reflection to accurately measure Film thickness.
Applications
Petrochemical industry, shipbuilding, automobile manufacturing, power station, machinery manufacturing, boilers, oil storage tanks, pipes, pipes, slabs, forgings, flanges, hulls, decks, tracks, machined parts
Steps
1. Select the working mode: single point mode or scan mode.
2. Set the sound speed range according to the material: 1000m/s-9999 m/s.
3. Coupling the probe to the measured surface for measurement.
4. 4 measurements per second in single point mode and 10 measurements per second in scan mode.
5. Use the USB data cable or Bluetooth to output data to the PC for collection.
Notice
• Operating temperature range is 0 ° C-40 ° C.
• The relative humidity should be less than 85% RH.
• Powered by 4 AA batteries.
• Ensure that the probe is well coupled to the surface under test for accurate measurement.
When storing data, you can store up to 20 files, each with up to 99 values.
