Overview

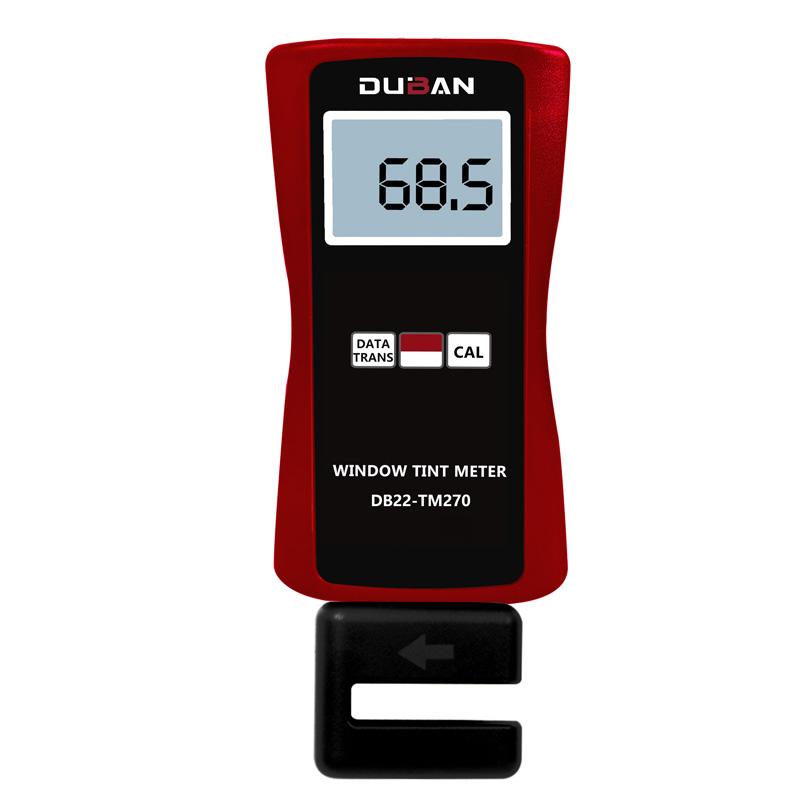

The DB22-TM270 Integral Transmittance meter is a portable measuring instrument powered by batteries. It works based on the relationship between the transmitted luminous flux of a transparent or translucent object and the incident ray flux. It is suitable for the measurement of light transmitance of various transparent and translucent planar samples. It is widely used in automotive manufacturing, aerospace, Glass products and plastic sheets and sheets. It can also determine the turbidity or clarity of liquid samples.
Features

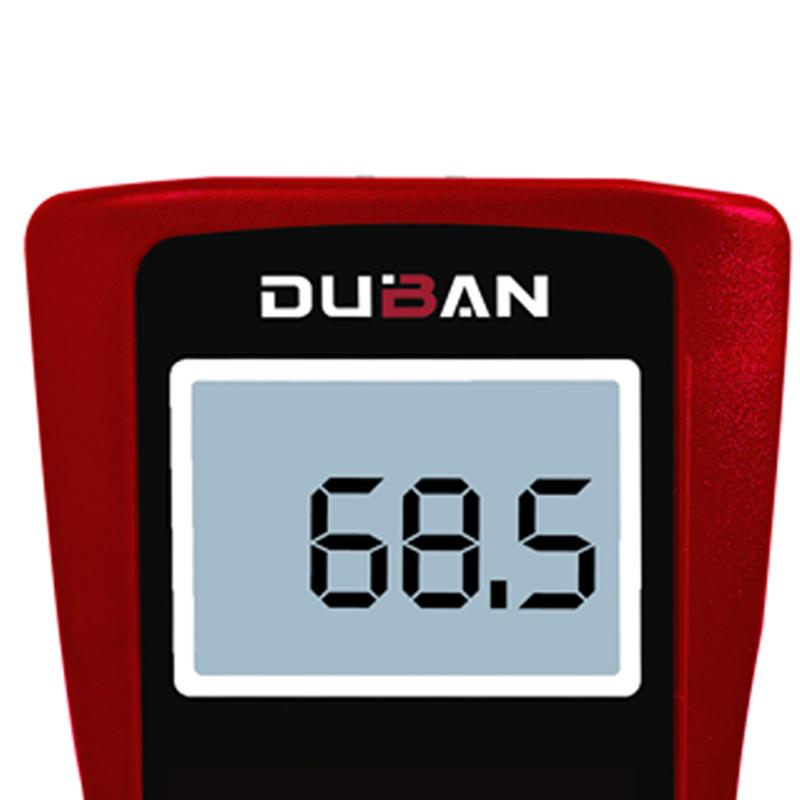

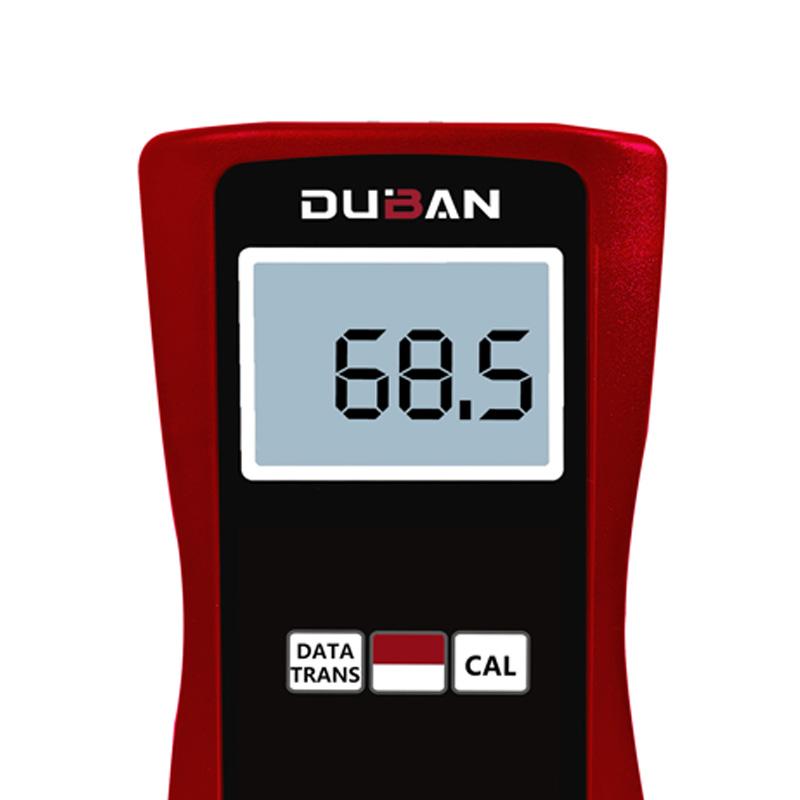

1. Digital display, equipped with digital display, Measurement range, high resolution, can provide accurate measurement results.
2. Sturdy and durable, the structural design is sturdy, exquisite, easy to carry, very suitable for on-site measurement and mobile testing needs.

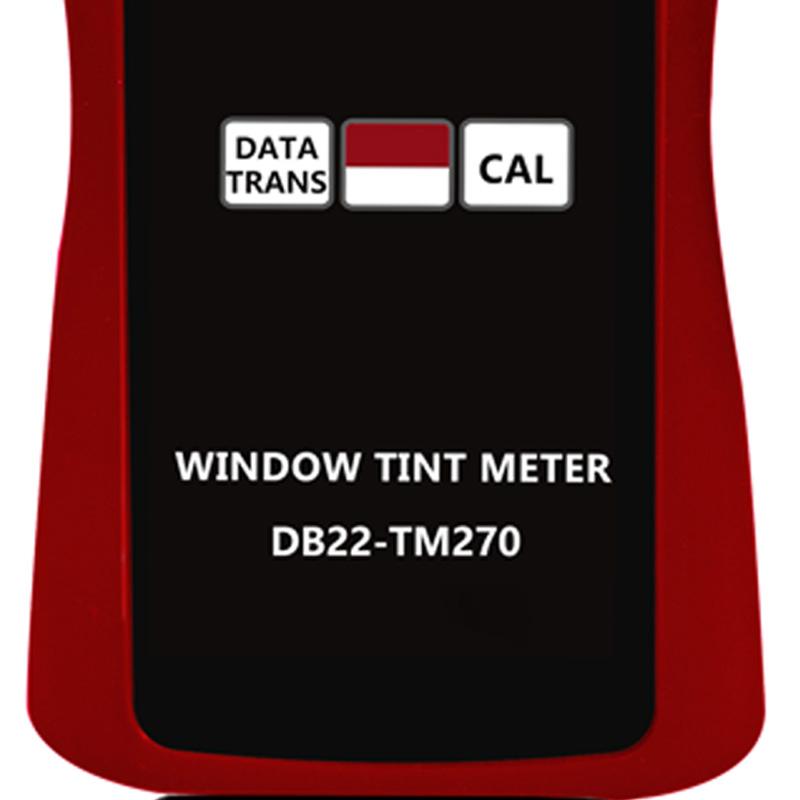

3. One-click calibrate, support one-click Adjustment, make the operation easy, users can quickly complete the calibrating process, saving time.
4. Data output, through the USB data cable measurement data output to the PC for further analysis and storage, and provide Bluetooth Bluetooth data output option, convenient for users to wirelessly transmit data.
Principle
The working principle of this instrument is based on the relationship between the transmitted light flux of a transparent or translucent object and the incident ray flux.
Applications
Automotive manufacturing, aerospace, Glass products, Plastic sheets and sheets, Determination of turbidity or clarity of liquid samples such as water and beverages
Standards
GB 2410-80、ASTM D1033-61、JIS k7105-81
Notice
• Film thickness should be less than 10mm.
• Operating conditions Temperature range is 0~ 50 ℃.
• The power supply uses 4X1.5v AAA 7 #batteries.
