Overview
The DB22-TM275P6 printed all-round Transmittance meter is widely used in automotive manufacturing and testing, Glass products, aerospace and other industries. It is suitable for on-site measurement and light transmitance measurement of protective films, PC, acrylic and other plastic products. It is also suitable for light transmitance measurement of Miscellaneous transparent or translucent materials. The instrument has excellent performance and versatility. It can provide accurate and reliable results in measurement and laboratory analysis, providing strong support for material quality control and testing.
Features
1. Large screen display, clear and intuitive information, easy to read measurement results
2. The operation is simple and fast, and you can get started without complicated training
3. Measurement speed, Sensitivity, Efficient acquisition of accurate data
4. Measurement accuracy to ensure reliable and consistent results

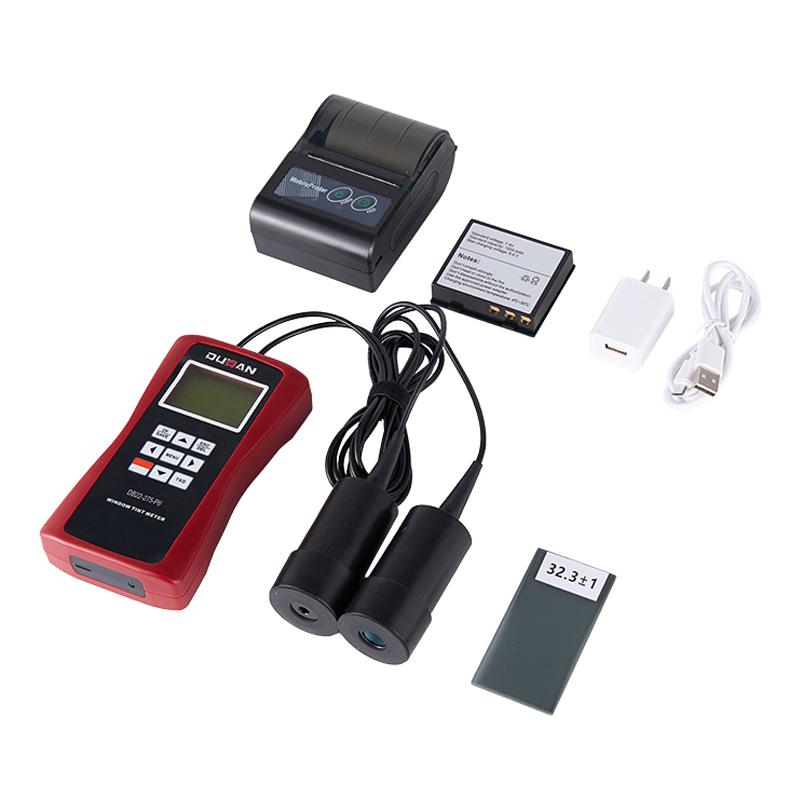

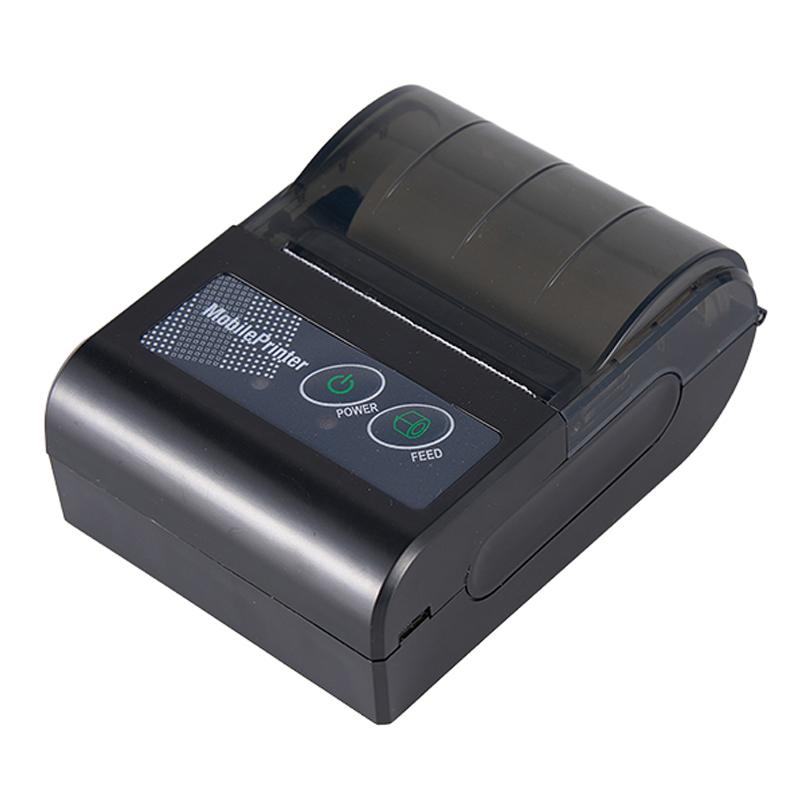

5. Can be connected to a printer to easily print test data for recording and analysis
6. Automatic calibration and manual calibration to ensure measurement accuracy
7. Built-in mass storage, can store up to 500 measurement data
Principle
The Transmittance meter evaluates Optical Properties by measuring the transmittance of the material to a beam of light in the wavelength range of 380-780nm, using a High Sensitivity Sensor to detect light transmitance. Measurement range covers 0.0% -100.0%, and resolution reaches 0.1%. Accurate measurement of various transparent or translucent materials.
Applications
Automobile manufacturing and testing, Glass products, aerospace, protective film, PC, acrylic and other plastic products, other transparent or translucent materials
Steps
1. Automatic calibration or manual calibration
2. Point the Sensor at the object to be measured (Film thickness < 30mm, volume < 10 * 10mm)
3. Read the measurement results displayed on the large screen
4. Optionally connect the printer to output test data
5. After use, it can be automatically shut down or manually shut down according to the settings
Notice
• The working environment temperature should be kept within the range of 0 ° C~ 40 ° C
The working environment humidity should be less than 85%

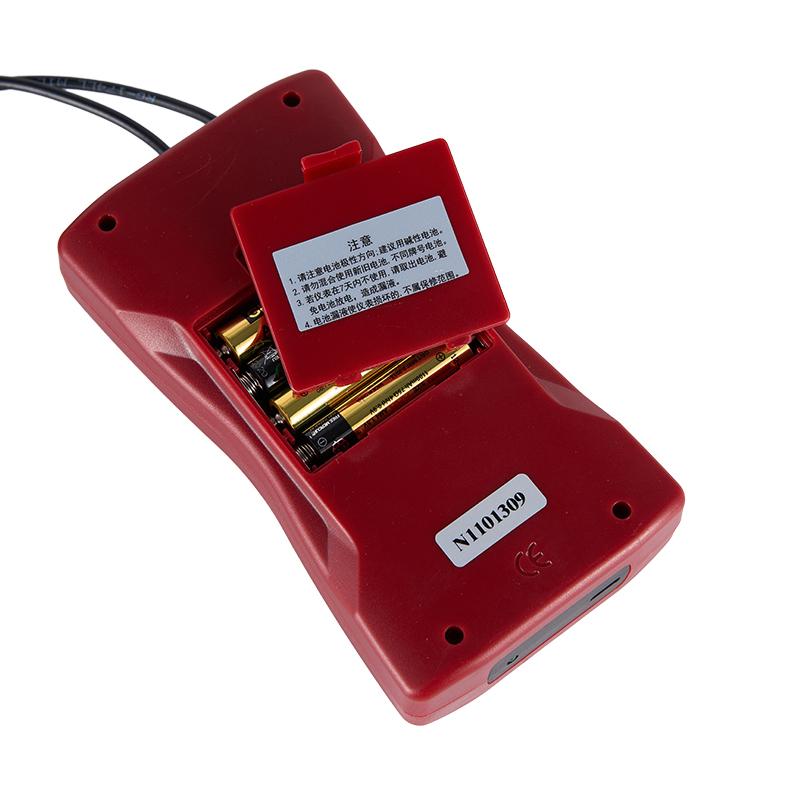

• Powered by 4 AA batteries
• Film thickness of the measured object shall not exceed 30mm
• The volume of the measured object should be less than 10 * 10mm
