Overview

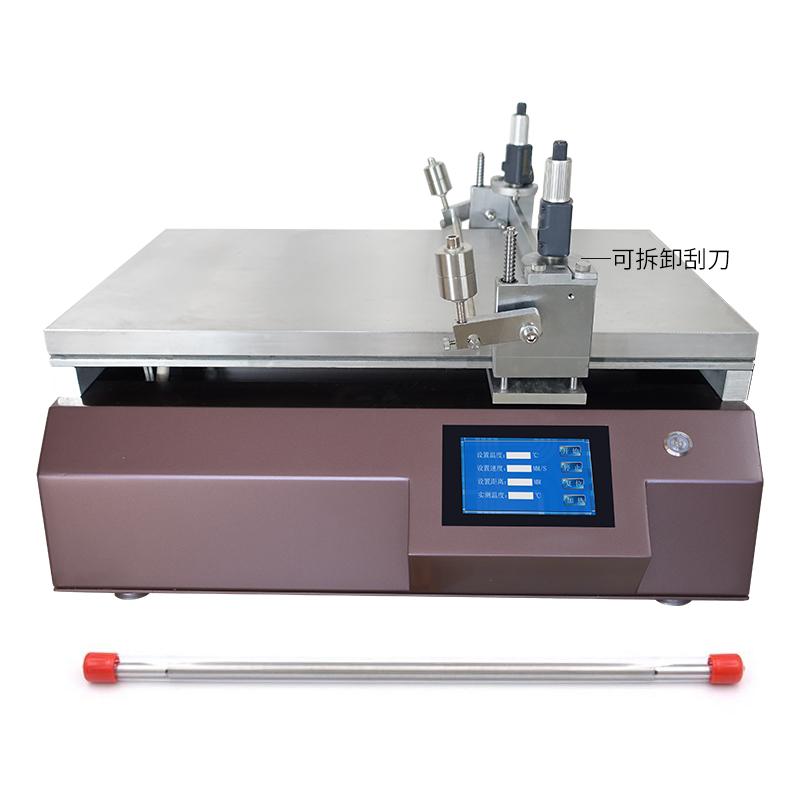

TBJ-X3-DJ11 automatic Film Applicator adopts imported accessories to ensure the uniformity and smoothness of Spreader's gluing by controlling speed and stable pressure. The equipment adopts a detachable scraper design, which is convenient for cleaning and replacement. The scraper with bracket makes the Spreader run more stably and film more evenly, effectively solving the problem of artificial film inconsistency and improving film reproducibility.
Features
1. Using imported accessories, the price is good and cheap
2. Removable scraper design, easy to disassemble, clean and replace
3. With bracket scraper, Spreader runs stably and films evenly
4. Spreader accuracy +/- 0.003mm, Spreader accuracy +/- 0.001mm
5. Spreader speed 5~ 180mm/s, stepless variable speed control
6. Heating Temperature range RT +~ 180 ℃, Temperature Uniformity +/- 3 ℃
7. Vacuum adsorption function, effective Spreader area 400 * 300mm
8. Multiple optional accessories and customization features
Principle
Automatic Film Applicator achieves accurate Spreader by controlling the speed of the Spreader and the steady pressure applied to the film applicator. The device uses vacuum adsorption to fix the substrate, and the surface of the substrate is evenly Spreader Coating through a removable scraper or wire rod. The heating system can control the temperature of the Spreader stage to ensure the conformity and reproducibility of the film mass.
Applications
Multinational enterprise R & D institutions, domestic and foreign universities, scientific research institutions
Steps
1. Prepare the Spreader substrate and place it on the Spreader stage
2. Choose the right scraper or wire rod according to your needs
3. Set Spreader Speed and Pressure Parameters
4. Start vacuum adsorption fixed substrate
5. Set the heating temperature (if necessary)
6. Start the Spreader
7. Remove the sample after completing the Spreader
8. Clean and replace the scraper
Notice
• Please read the operation manual carefully before use
• Power supply voltage 220V 50Hz
• Spreader Film thickness range should be determined according to the bar model
• Vacuum adsorption size is 400 * 300mm, can be customized
• The maximum heating temperature does not exceed 180 ° C
• Spreader rate below 5mm/s needs to be customized
• Regularly clean and maintain equipment
• Use appropriate attachments to ensure Spreader mass
