Overview

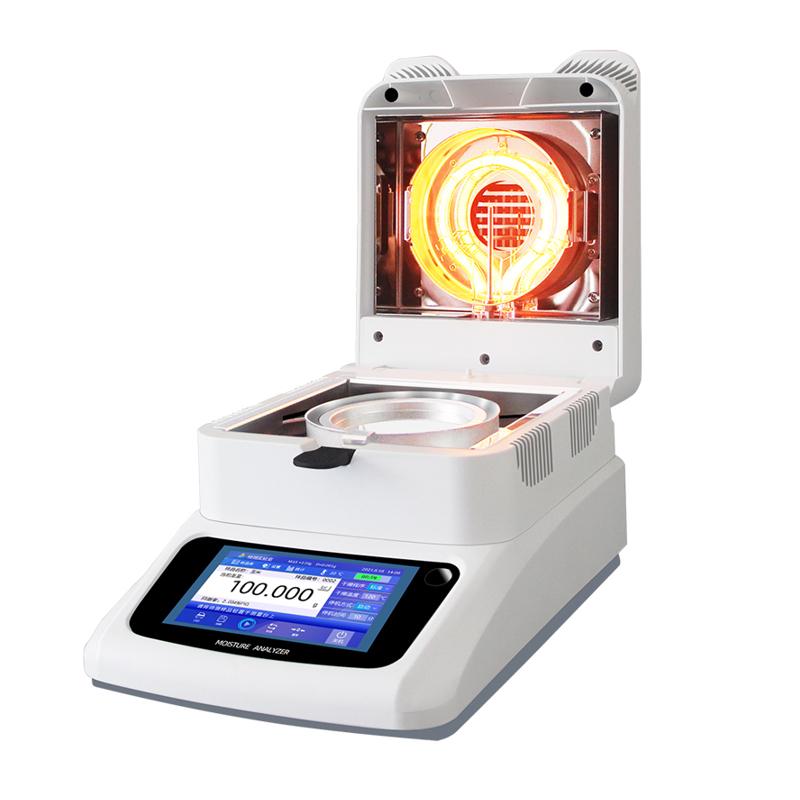

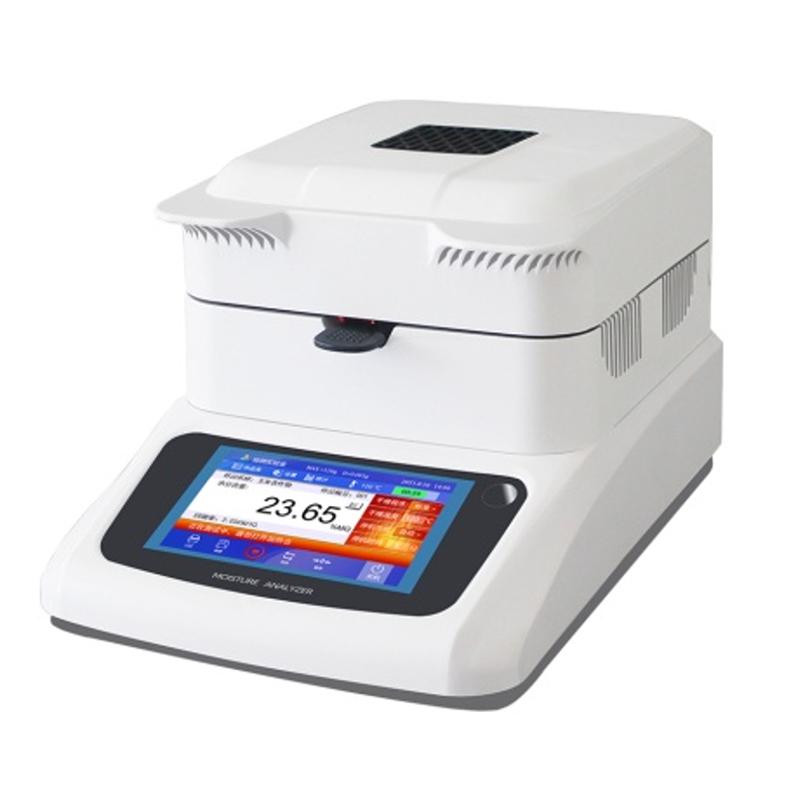

XIONGFA XFSFY-1201MA fast moisture meter is a moisture measurement equipment based on thermogravimetry, consisting of a weighing unit and a heating unit. It can meet the needs of food, chemical and other industries in quality control and production. It is widely used in plastic particles, food, sludge, tea, corn feed, battery powder, metal powder, dry goods and other samples of rapid drying measurement, accurate determination of Solid content and moisture value.
Features
1.5-Inch programmable color touch screen, an interface directly displays moisture%, Solid content%, test temperature and other information, built-in guided Chinese operation and voice prompts, the operator can follow the graphical guidance to gradually complete the workflow, and can adjust the sound size or turn off according to personal habits.
2. Imported German HBM Weighing Sensor, High Accuracy and Zero Temperature Drift.
3.500W halogen ring lamp, heating fast, waterproof and explosion-proof, the heating chamber is made of pure stainless steel cover, so that the sample is heated more evenly.
4. Using PT100 temperature sensor, accurate temperature control, waterproof, anti-corrosion and high temperature resistance.
5. Rich data processing function, can customize to add 100 test methods, can store 100 moisture results and average.
6. The built-in database can store 2,000 audit trail data, and the optional U disk function can update and save countless pieces of data in real time.
7. Built-in RS232 interface, can be connected to thermal printer, label printer or computer, or choose USB interface.
8. Improve security through user management, set login permissions to distinguish users, have automatic locking function, and support multi-user operation (three-level permission management).
9. Instead of the national standard oven method, it is widely used and suitable for moisture content testing and Solid content testing in various industries.
10. No need to install and debug, can be used out of the box; Linear dispersion diagram display in real time during the test process, intuitive observation of moisture changes; rich data display, can display Linear dispersion diagram, time, real-time temperature, moisture, Solid content; automatic measurement, measurement alarm reminder.
Principle
The rapid moisture meter uses thermogravimetry to determine the moisture content of the sample, which consists of a weighing unit and a heating unit. Accurate weighing and temperature control ensure accurate results.
Applications
Research institutes, universities, inspection institutes, Measurement institutes, enterprises and institutions are widely used in plastic particles, food, sludge, tea, corn feed, battery powder, metal powder, dry goods and other industries
Steps
1. Turn it on and follow the built-in guided Chinese operation and voice prompts.
2. Complete the workflow step by step according to the graphical guidance, and you can choose to adjust the sound volume or turn it off.
3. Set test parameters, such as temperature, shutdown standards, etc.
4. Place the sample and start the test, the instrument automatically determines and displays real-time Linear dispersion maps and data.
5. After the test is completed, the instrument automatically alarms and reminds, allowing you to view and store the results.
Notice
• Operators should follow graphical instructions to gradually complete the workflow to ensure correct use.
• Check the instrument connection and settings before use to avoid operation errors.
• Pay attention to the heating Temperature range to prevent over-temperature damage to equipment or samples.
• Regularly maintain Sensors and Heating Units to ensure accuracy and durability.
• User management functions need to properly set permissions to prevent unauthorized operations.
