Overview

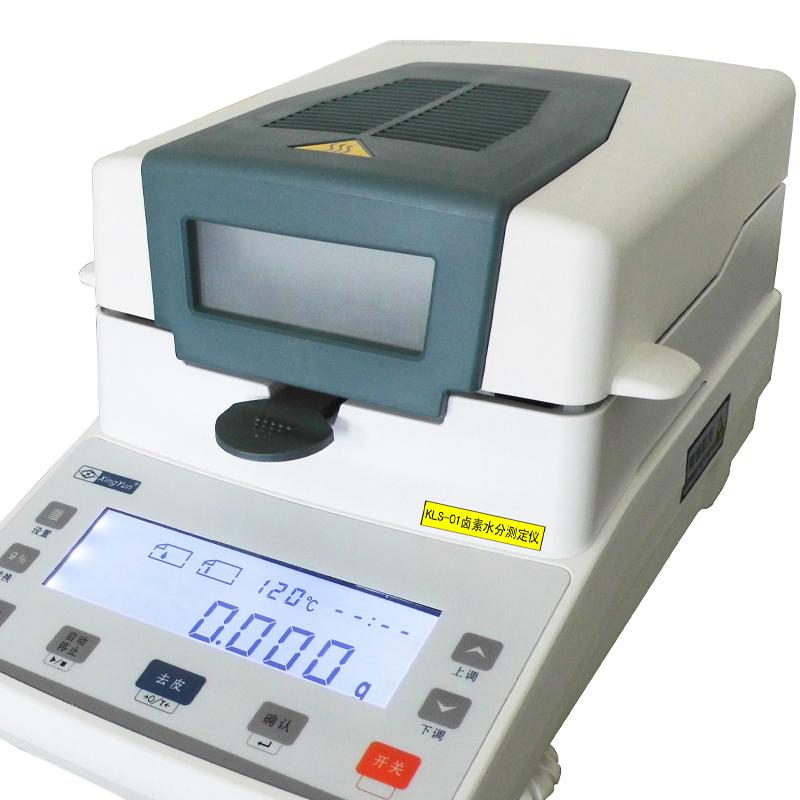

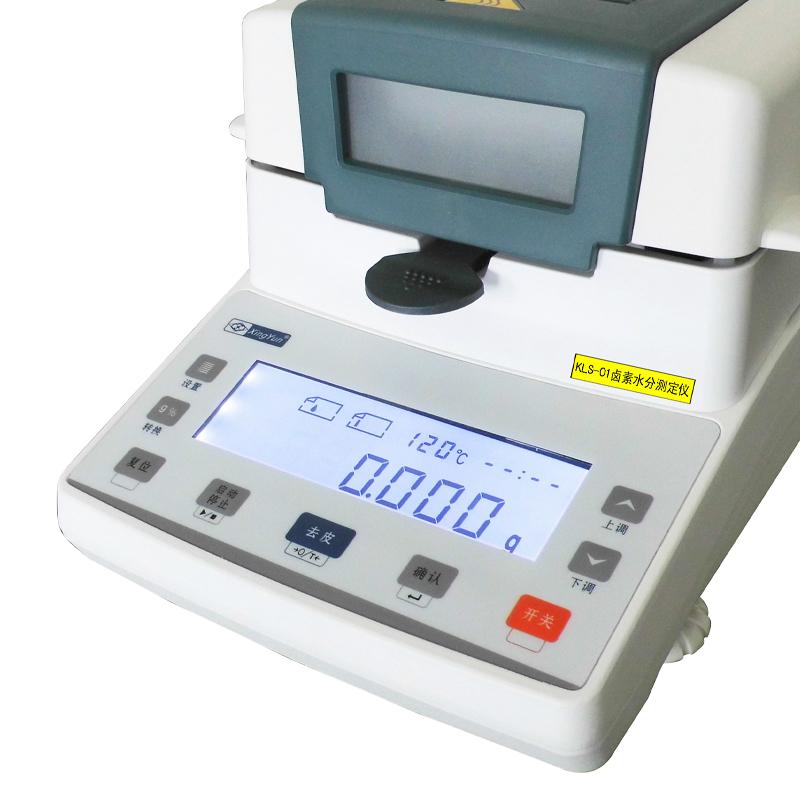

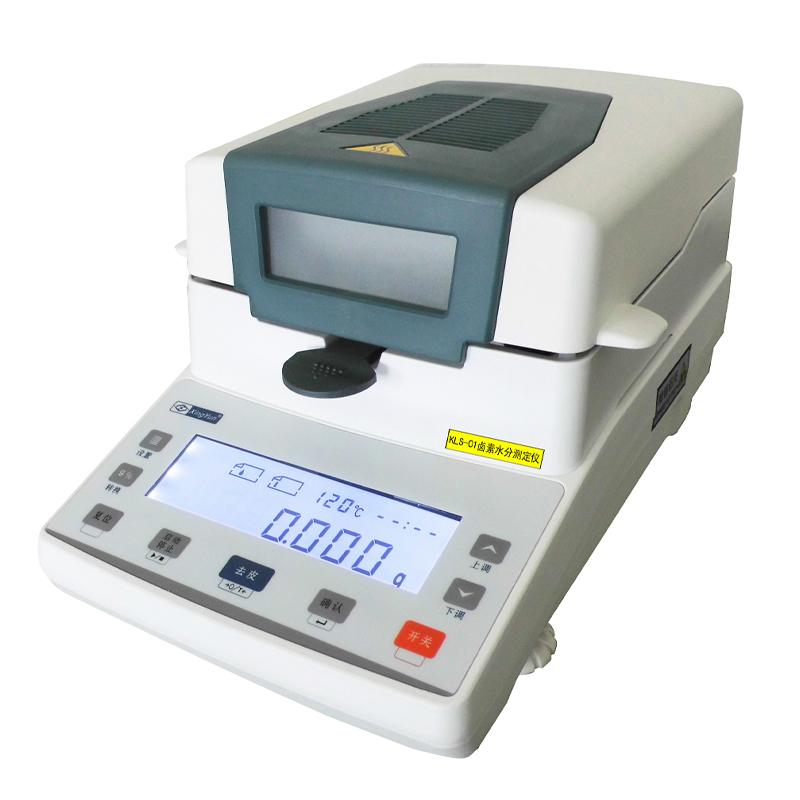

KLS-01 halogen Moisture Analyzer is a ZIBO brand of rapid moisture detection equipment, widely used in grain, feed, seeds, dehydrated vegetables, chemical, tea, food, meat, agriculture and forestry, paper, rubber, plastic, Spinning & weaving and other industries Moisture content testing and data printing of raw materials, intermediates and finished samples.
Features
1. The weighing part adopts Sensor imported from Germany to ensure stable weighing and no drift
2. Precision casting aluminum shell shell, heating part adopts imported polymer material ultra-high temperature molding to ensure product performance
3. Ring halogen lamp heating with multi-layer stainless steel heating chamber, heating fast, uniform heating, improve heating efficiency and shorten working time
4. Large LCD liquid crystal display with multi-button operation, easy operation and clear results, optional printer to record test results
5. RS232 Interface supports PC and printer connection, and can store data internally
Principle
The instrument uses an annular halogen lamp as a heating source to rapidly and uniformly heat the sample through a multi-layer stainless steel heating chamber to evaporate the water in the sample. At the same time, the High Accuracy Weighing Sensor is used to monitor the weight change of the sample in real time, and the weight difference before and after drying is calculated to determine the moisture content.
Applications
Grain, feed, seeds, dehydrated vegetables, chemicals, tea, food, meat, agriculture and forestry, paper, rubber, plastic, Spinning & weaving
Steps
1. Turn on the preheating instrument
2. Place the sample on the pan
3. Set heating temperature and time parameters
4. Start the heating test program
5. Read the test results on the LCD display
6. Optional printer output test report
7. Connect to PC for data transmission through RS232 interface
Notice
• Please read the instructions carefully before use
• Ensure that the working environment temperature is within the range of 5~ 35 ° C
• Sample placement should be evenly distributed across the pan
• The heating temperature setting must not exceed 199 ° C
• Regularly clean the instrument to keep it in good working condition
• Disconnect the power supply if not used for a long time
• Be careful when handling to avoid collisions
