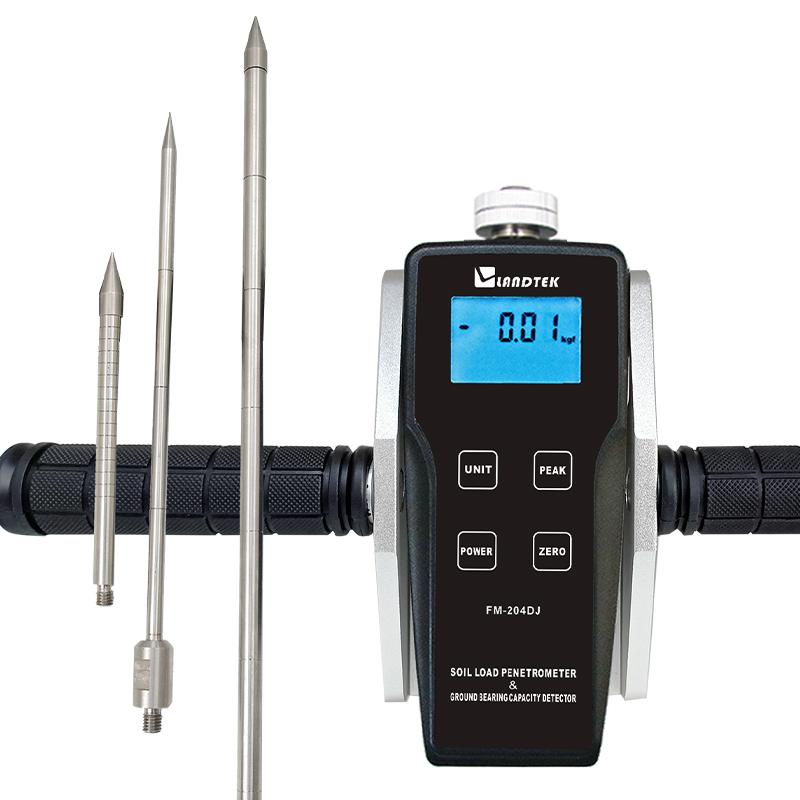

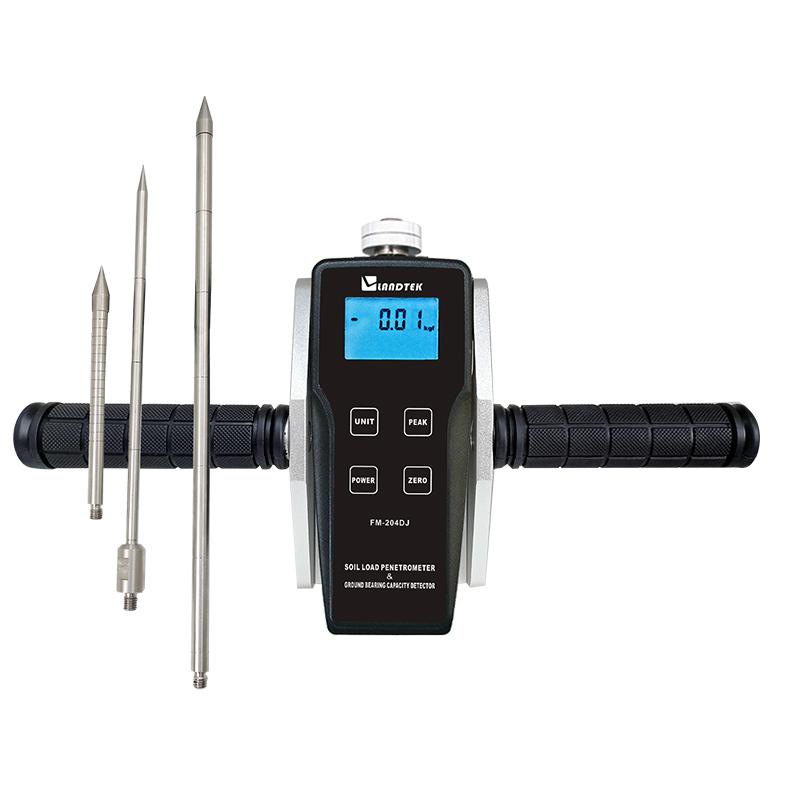

LANDTEK FM204-DJ Fill compactness Platts penetration instrument, portable and rapid detection without nuclear contamination

Name: LANDTEK FM204-DJ Fill compactness Platts penetration instrument, portable and rapid detection without nuclear contamination
Brand: LANDTEK
SKU: NB044351
Price: 342.0 USD
Availability: InStock

$ 342.00Ex works

The penetration method is used for testing, a set of tests only takes 15-20 minutes, the measurement depth is 0-30cm, the accuracy is less than or equal to 0.25%, and there is no radioactive pollution.

Model

FM204-DJ

Get Quote

Category : Other Instruments

Brand : LANDTEK

SKU : NB044351

Service :The delivery and service By NBCLab.Com

Overview

LANDTEK FM204-DJ Fill Compactness/Platts Penetration Instrument is an instrument based on the relationship between penetration and dry density, water content and compactness in geotechnical tests. Through a large number of parallel comparison tests of penetration and ring knife method, the regression equation is established, and the data table related to penetration resistance and dry density is calculated.

Features

1. No radioactive nuclear contamination Step 2: Cheap prices 3. Compact size, easy to carry on site 4. The test is fast, only 15-20 minutes for a set of tests 5. Effectively increase productivity

Principle

The Platts penetration meter is based on the correlation between soil penetration and dry density, water content and compactness. The regression equation is established through a large number of parallel comparison experiments between penetration and ring knife method, and the correlation data table between penetration resistance and dry density is calibrated. During measurement, the dry density is quickly obtained by looking up the penetration resistance table, and then the compaction coefficient is calculated.

Applications

Civil and industrial buildings, highways, railways, roads and bridges, municipal drainage, oil pipelines, water conservancy, dams, dikes, irrigation channels, reservoir construction, airport runway projects

Steps

1. Prepare the instrument and install 2 AA batteries (optional 5V DC) 2. Select the test point and insert the probe into the tested soil 3. measurement of penetration resistance 4. Look up the table to get dry density 5. Calculate the compaction factor 6. After the test is completed, you can manually shut down or wait 10 minutes for automatic shutdown.

Notice

Measurement range is 0KG~ 100KG (0N-1000N), measurement depth is 0cm~ 30cm • Suitable for various backfills, clays, sands and mixed soils after rolling • Test accuracy ≤ 0.25% • instrument weight 415g (without battery), handle 295g, probe 380g • With 10-minute automatic shutdown function, it can also be shut down manually

Measurement Range
0kg~100kg(0N-1000N)
Depth of measurement
0cm~30cm
material under test
After rolling, various backfills, clays, sands and mixed soils, etc
Application environment
Highways, railways, reservoirs, dikes, dams, and civic buildings
Test Results
Filling resistance, relative density, compaction coefficient and foundation bearing capacity
power supply
2 AA batteries (5V DC optional)
Test accuracy
≤0.25%
shutdown mode
10 minutes automatic shutdown or manual shutdown
Weight (without battery)
Instrument 415 g, handle 295 g, probe 380 g
